Wauseon 1003 1″ Hydraulic Tube End Former
Used Wauseon 1003 1″ hydraulic tube end former, tested and verified, for expanding, reducing, flaring, and beading.
Brand:
Wauseon
Model:
1003
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

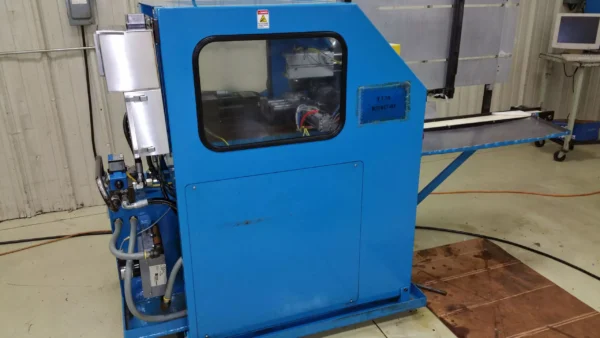

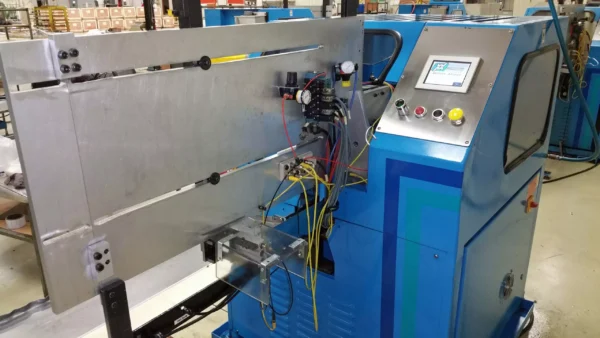

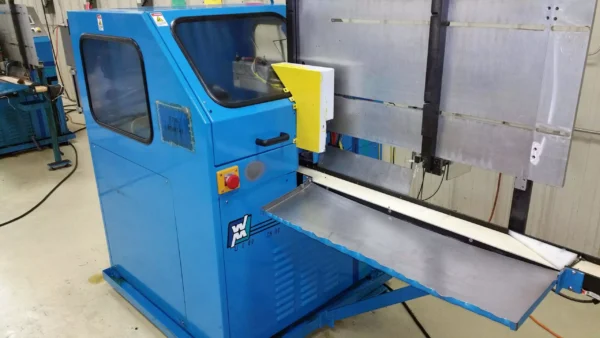

This Wauseon 1003 is a 1″ capacity hydraulic tube end former for expanding, reducing, flaring and beading tube ends. It has been tested for hydraulic pressure and motion, ram alignment, safety switch function and a full cycle under load.
- Capacity: 1″
- Ram cylinder (hydraulic): 3-1/4″ bore x 3″ stroke; max ram force 8.2 tons
- Clamp cylinder (air): 14.5 tons during lockup
- Shuttle cylinder (air): 3-1/4″ bore
- Hydraulic power unit: 40-gallon reservoir, 15 GPM piston pump, 2,000 PSI, 7.5 HP / 1,800 RPM ODP motor
- Ram working pressure: variable to 1,200 PSI (2,000 PSI max)
- Max. jaw opening: 1.50″
- Electrical: 220/440V, 3-phase, 60 Hz
- Air requirement: 80 PSI
Located in Michigan. Contact us for tooling availability and a quote.
Model: 1003
Type: Hydraulic Tube End Former
Capacity: Up to 1″ OD
Ram Cylinder (Hyd): 3-1/4″ bore x 3″ stroke
Max Ram Force: 8.2 tons
Clamp Cylinder (Air): 14.5 tons during lockup
Shuttle Cylinder (Air): 3-1/4″ bore
Hydraulic Power Unit: 40-gallon reservoir, 15 GPM piston pump, 2000 PSI, 7.5 HP/1800 RPM ODP motor
Electrical: 220/440V, 3-phase, 60 Hz
Ram Working Pressure: Variable up to 1200 PSI (2000 PSI max)
Max Jaw Opening: 1.50″
Air Requirement: 80 PSI
Condition: Tested & verified (hydraulic pressure/motion, ram alignment, safety switches, full-load cycle)
