Pines (SMS) #2 Hydraulic Tube Bender
Used Pines (SMS) #2 hydraulic tube bender — a Smith Machinery Service clone of the Pines #2, upgraded from a #1-1/4 to a 5″ bore cylinder.
Brand:
Pines (SMS)
Model:
#2
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

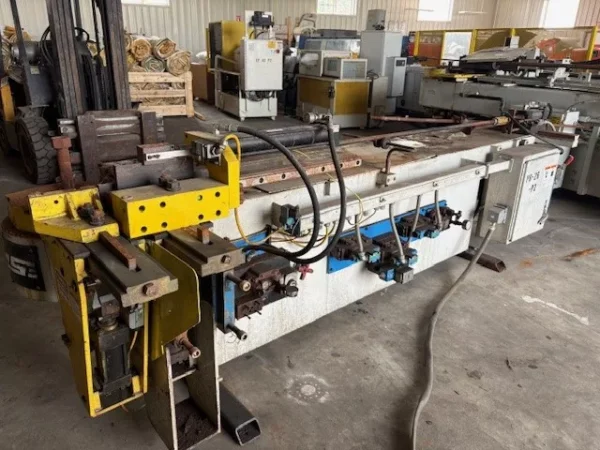

This #2 hydraulic tube bender was built by Smith Machinery Service (SMS) as a clone of the Pines #2, with some upgrades. It was originally a #1-1/4 with a 3″ bore bend cylinder and has been upgraded to #2 specification with a 5″ bore bend cylinder.
- RH (clockwise) rotation
- Hydraulic mandrel extractor
- Linear rail and bearing-style pressure die assist
- Current Tech “CAB” control
- Vickers valves
- Oil cooler
Tooling is available on request. Contact us for condition details and a quote.
Model: Pines (SMS) #2 Hydraulic Tube Bender (originally #1-1/4, cylinder upgraded to #2 spec)

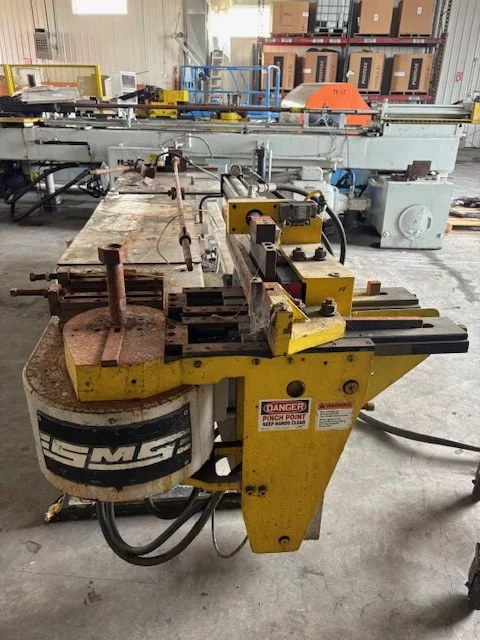

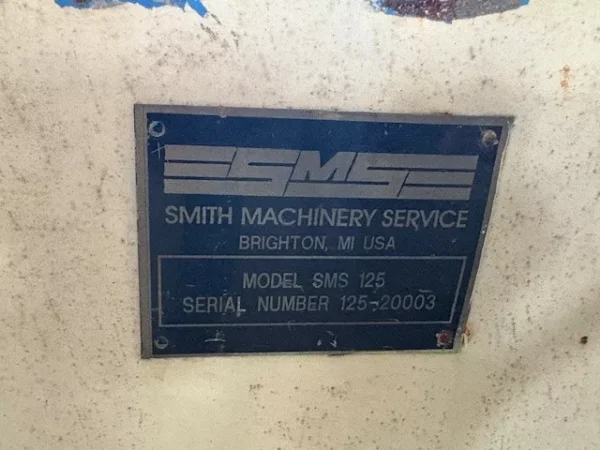

Builder: Smith Machinery Service (SMS) — Pines #2 clone
Rotation: RH (Clockwise)

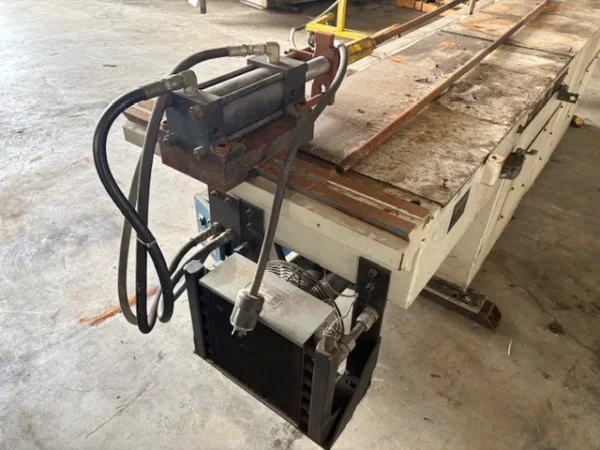

Bend Cylinder: 5″ bore (upgraded from original 3″ bore)
Mandrel System: Hydraulic mandrel extractor
Pressure Die Assist: Linear rail & bearing style

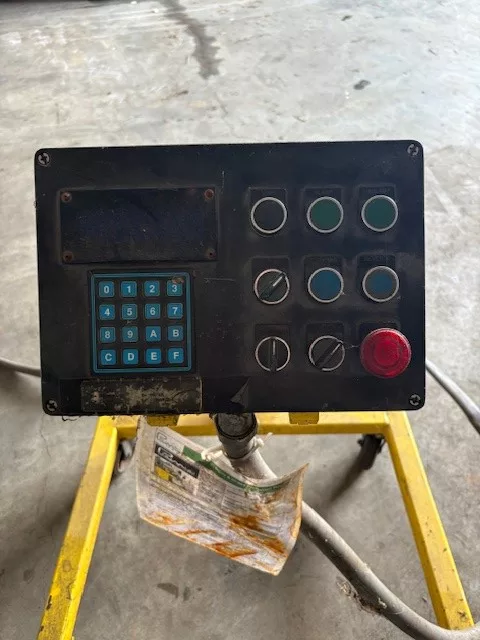

Control: Current Tech “CAB” Control

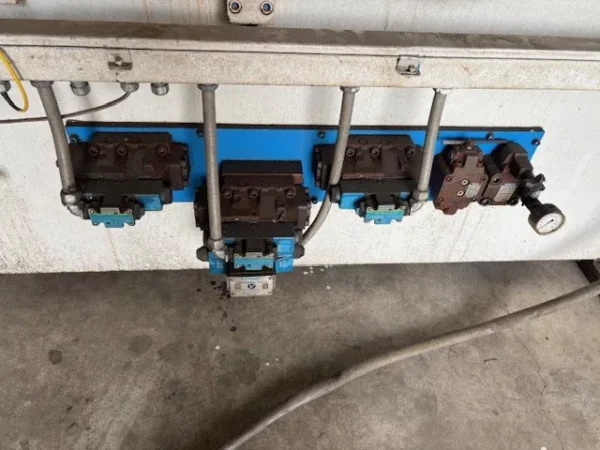

Valves: Vickers
Cooling: Integrated oil cooler
Condition: Used, fully operational, mechanically tested and hydraulically verified
