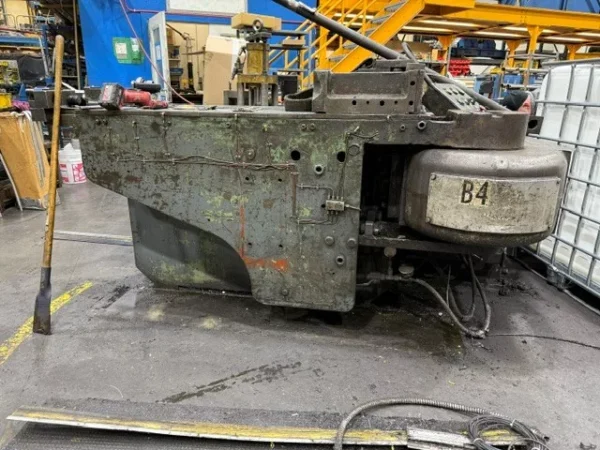

Pines #4 Long Arm Hydraulic Tube Bender

The Pines #4 is one of the largest machines in Pines’ hydraulic rotary draw line. It is built for heavy-wall, large-diameter tube and pipe in structural, process piping, heavy equipment, marine, and large exhaust work. It handles mild steel tube up to 6″ OD, stainless up to 4-1/2″ OD, and pipe up to 4″ Schedule 80, with bends to 180° plus springback.

This unit is a long arm configuration, and it has been tested. It is equipped with:

• LH (counterclockwise) rotation

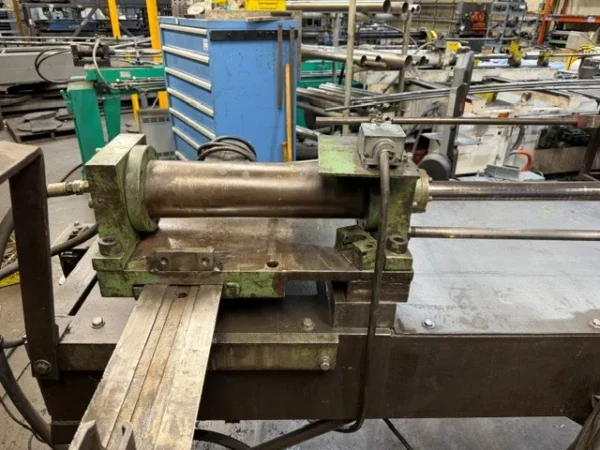

• Hydraulic mandrel extractor

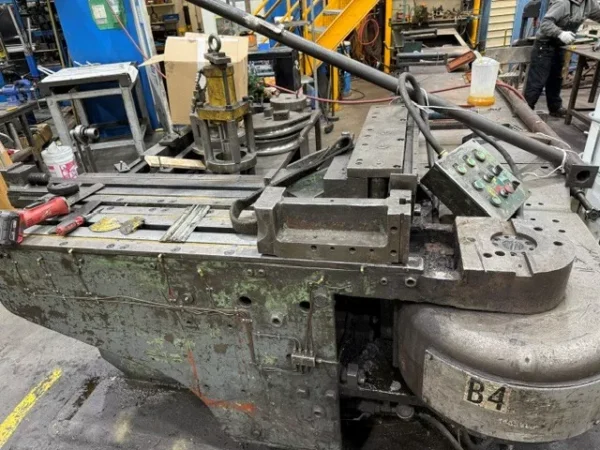

• Push-button controls with turret

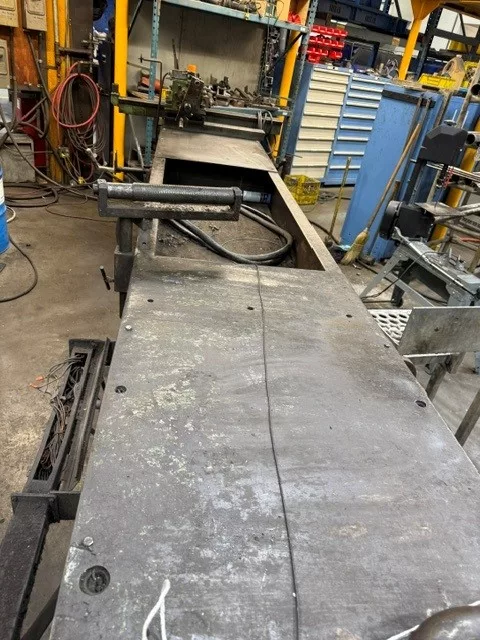

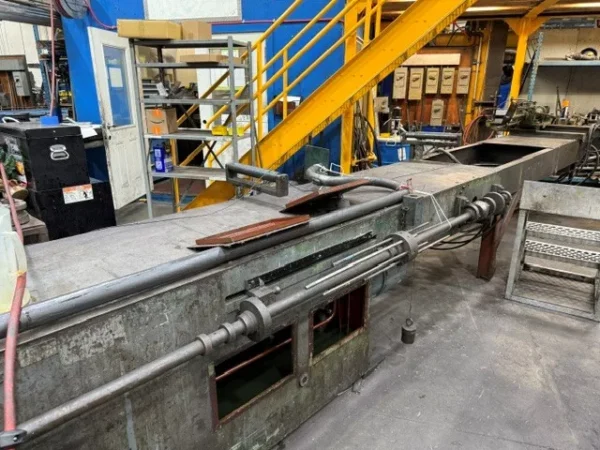

• Base extension of approximately 5′ for longer tube lengths over the mandrel

The #4’s heavy hydraulic design gives smooth, controlled bending force. That matters most on heavy-wall tube, where steady material flow reduces wrinkling and improves bend-to-bend consistency. Combined with mandrel tooling, it supports quality bends across a wide range of tube sizes.

Why buy a used Pines #4 from Ultimate Tube Bender Parts Plus:

• Parts support: we stock new and used Pines parts, including clamp bars, wear strips, toggle links, and bend die keys.
• Tooling: bend dies, clamp dies, pressure dies, wiper dies, and mandrels can be sourced or built to suit your tube size and CLR.
• Services: we offer evaluation, on-site repair, and full refurbishing.

With over 40 years of experience with Pines machines, we can help confirm the #4 fits your material, size, and radius requirements before you buy. Call 810.844.0233 or request a quote below.

Machine sold as-is unless otherwise quoted. Tooling not included unless listed.
