OMAX 5555 Precision Abrasive Waterjet with 50 HP EnduroMax Pump – 2013
Used 2013 OMAX 5555 abrasive waterjet in very good condition, approx. 8,800 hours. 55″ x 55″ cutting capacity, 50 HP variable frequency drive EnduroMax pump, and Tilt-A-Jet taper compensation head.
Brand:
OMAX
Model:
5555
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

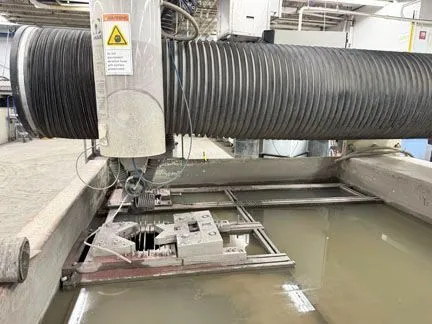

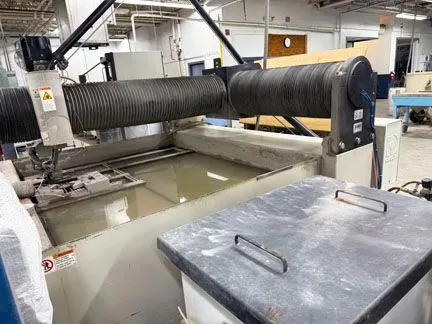

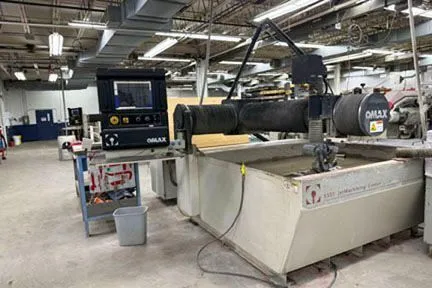

This 2013 OMAX 5555 is a compact precision abrasive waterjet with a 55″ x 55″ cutting envelope on a 65″ x 80″ table. It is listed in very good condition with approximately 8,800 hours.

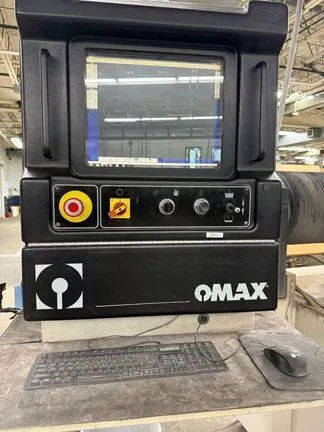

Motion is handled by closed-loop digital drives with brushless AC servo motors, pre-loaded ball screws and hardened, ground ways, with round bellows fully enclosing each axis. The PC-based control runs OMAX’s integrated CAD/CAM software, which imports over 40 file formats and includes a full material library, six cut qualities, array nesting, automatic tool path generation, and Intelli-Trace dynamic pierce and corner functions.

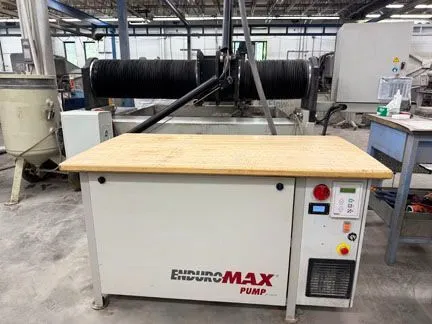

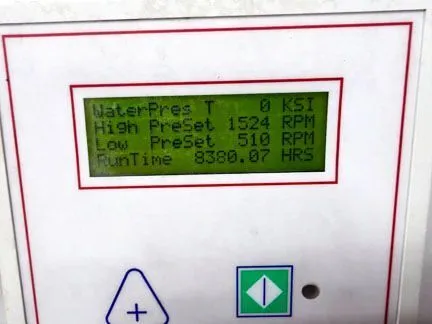

Pressure comes from an OMAX 5060 50 HP EnduroMax pump with variable frequency drive, which allows high/low pressure piercing for soft and brittle materials and uses less electricity and water than an intensifier pump.
Equipped With
- Tilt-A-Jet taper compensation head

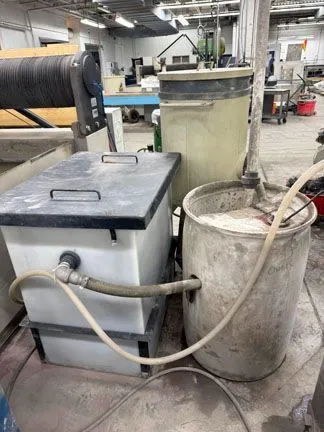

- 600 lb garnet hopper
- Water level control
- Drain water laminar filter
| Specification | Value |
|---|---|
| Manufacturer | OMAX |
| Model | 5555 |
| Year | 2013 |
| Machine type | Abrasive waterjet |
| Cutting envelope | 55″ x 55″ |
| Table size | 65″ x 80″ |
| Hours | Approx. 8,800 |
| Pump | OMAX 5060 EnduroMax, 50 HP, variable frequency drive |
| Motion | Closed-loop digital drives, brushless AC servo motors, pre-loaded ball screws |
| Control | PC-based, OMAX integrated CAD/CAM |
| Taper compensation | Tilt-A-Jet head |
| Abrasive hopper | 600 lb garnet |
| Other | Water level control; drain water laminar filter |
| Condition | Very good |
