Messer Titan 10′ x 80′ CNC Plasma Cutting System – 2014
Used 2014 Messer Titan CNC plasma cutting system in very good condition, with a 10′ x 80′ cutting area, Hypertherm HPR400XD plasma, bevel head and oxy-fuel torch. Cuts 26 gauge through 12″ plate.
Brand:
Messer
Model:
Titan
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

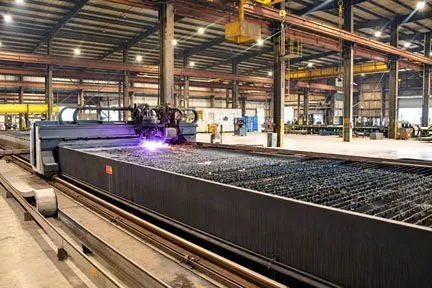

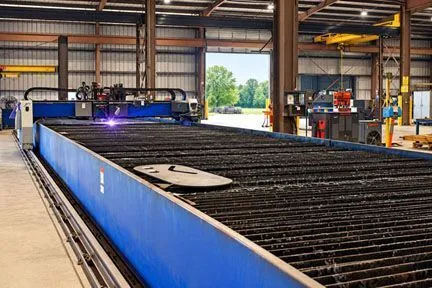

This 2014 Messer Titan is a large-format CNC plasma cutting system built for high-volume processing of oversized steel plate. It is listed in very good condition.

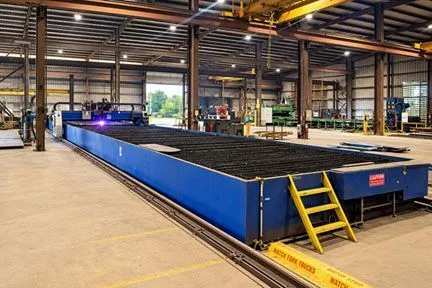

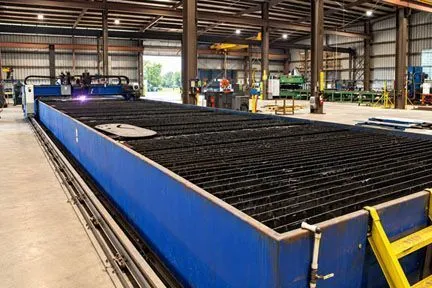

The machine offers an effective cutting area of 10′ x 80′ over a 13′ x 86′ water table, with contouring speeds of 400 IPM and positioning speeds up to 1,700 IPM. Motion accuracy and repeatability are both rated at ±0.010″. Material capacity runs from 26 gauge sheet to 12″ plate.

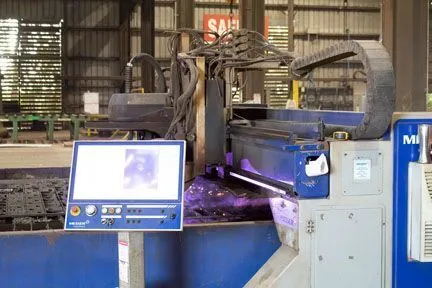

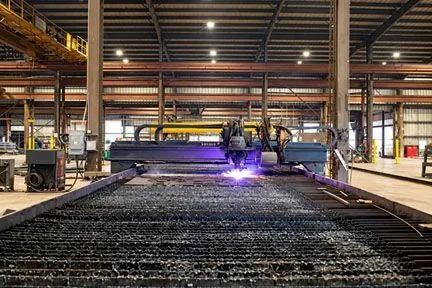

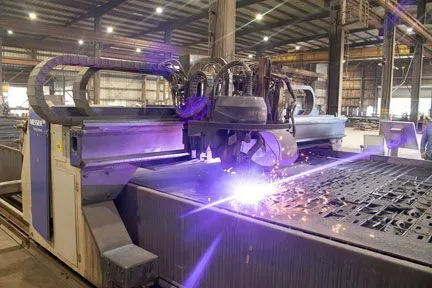

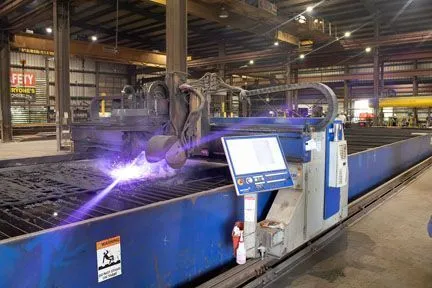

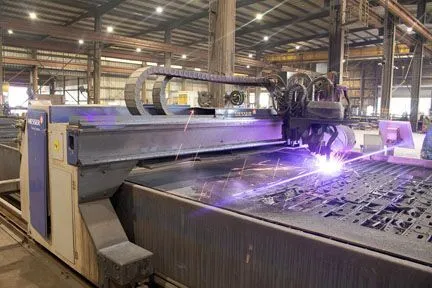

Cutting is handled by a Hypertherm HPR400XD high-definition plasma system on a Messer Global Rotator Delta E bevel unit, giving 5-axis bevel cutting capability. An ALFA oxy-fuel torch covers heavy plate, and a Telesis pinstamp is fitted for part marking. The system runs on a Messer Global Control CNC.
Equipped With
- Hypertherm HPR400XD high-definition plasma system
- Messer Global Control CNC
- Messer Global Rotator Delta E plasma bevel unit
- ALFA oxy-fuel torch
- Telesis pinstamp
- Water table
| Specification | Value |
|---|---|
| Manufacturer | Messer |
| Model | Titan |
| Year | 2014 |
| Machine type | CNC plasma cutting system |
| Cutting area | 10′ x 80′ |
| Water table | 13′ x 86′ |
| Contouring speed | 400 IPM |
| Positioning speed | Up to 1,700 IPM |
| Accuracy / repeatability | ±0.010″ |
| Material capacity | 26 ga. to 12″ plate |
| Plasma | Hypertherm HPR400XD high-definition |
| Bevel | Messer Global Rotator Delta E (5-axis bevel) |
| Oxy-fuel | ALFA torch |
| Marking | Telesis pinstamp |
| Control | Messer Global Control CNC |
| Condition | Very good |
