Imcar CPHV 100 Section Roll Bender
Used Imcar CPHV-100 hydraulic angle/section roll bender, rated for 4″ x 4″ x 1/2″ angle and 3-1/2″ Schedule 40 pipe.
Brand:
Imcar
Model:
CPHV
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

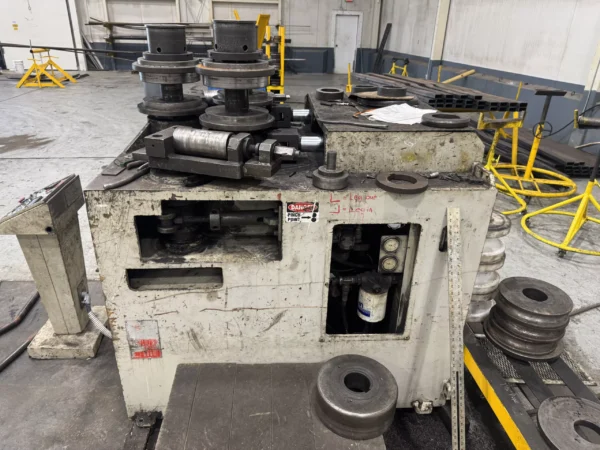

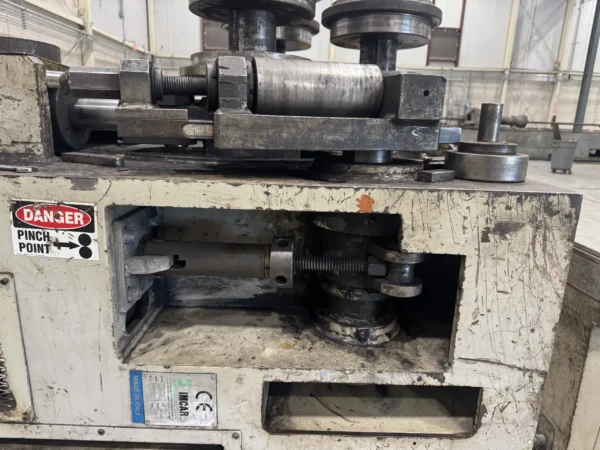

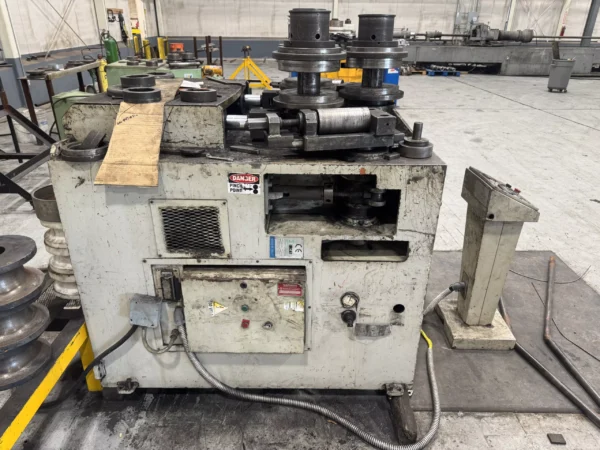

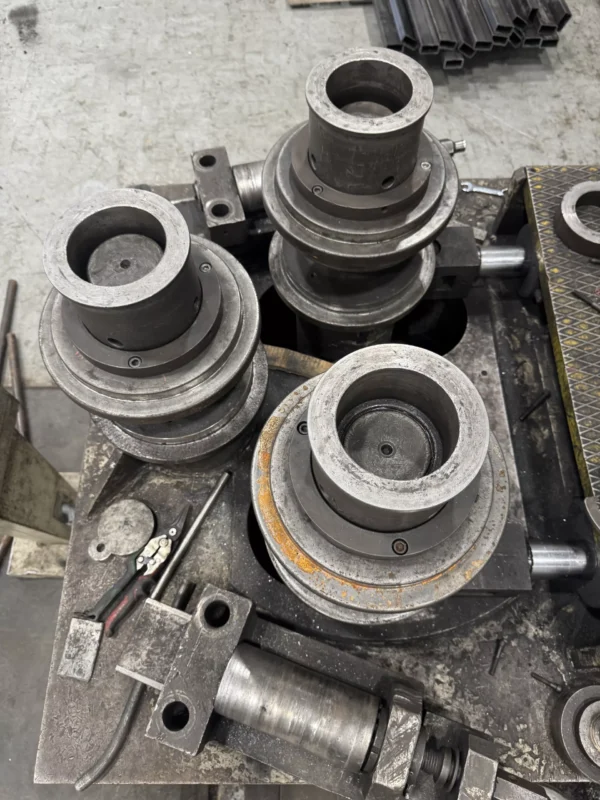

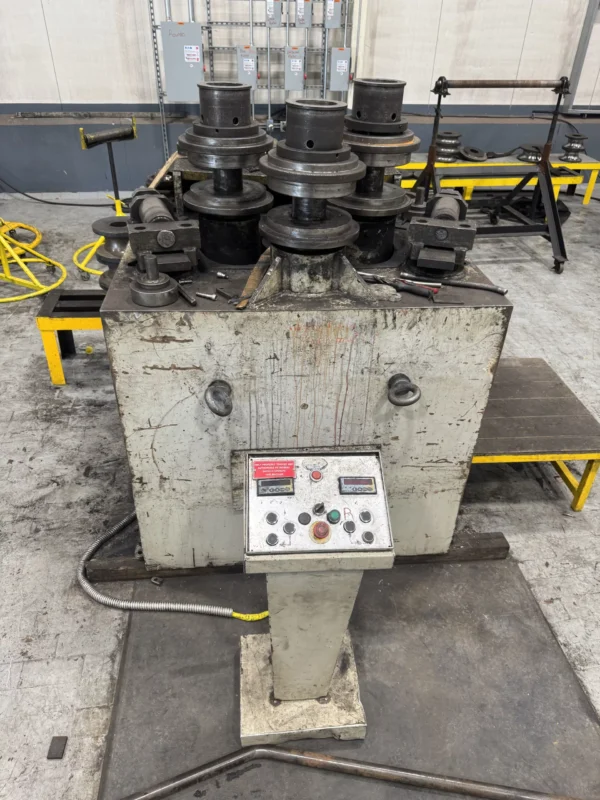

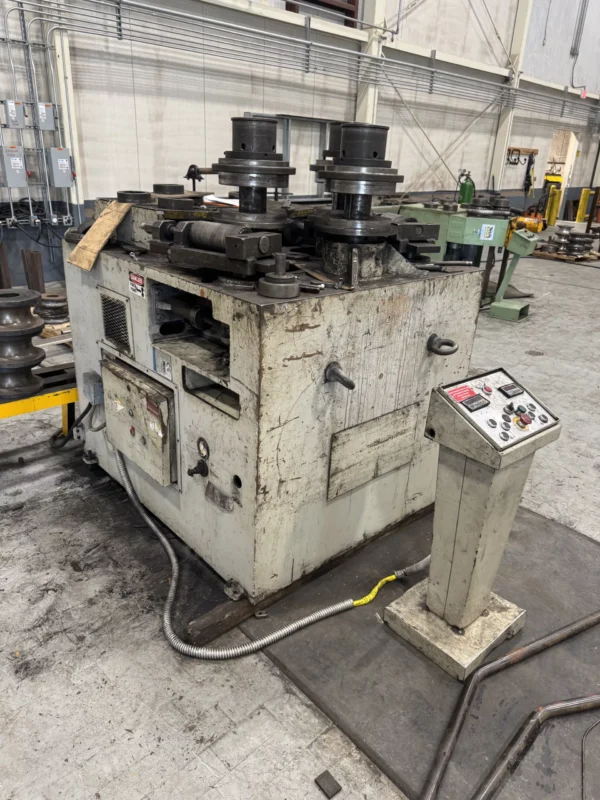

This used Imcar CPHV-100 is a hydraulic angle and section roll bender with 100 mm (3.95″) shafts and three hydraulically driven rolls. It can run in horizontal or vertical position.
- Angle: 4″ x 4″ x 1/2″
- Pipe: 3-1/2″ Schedule 40
- Round tube: 5″ x 12 ga.
- Solid round: 3″; solid square: 2-3/8″
- Square tube: 3″ x 1/4″ wall
- Dual LED digital displays for roll position
- Electrical: 220V, 3-phase

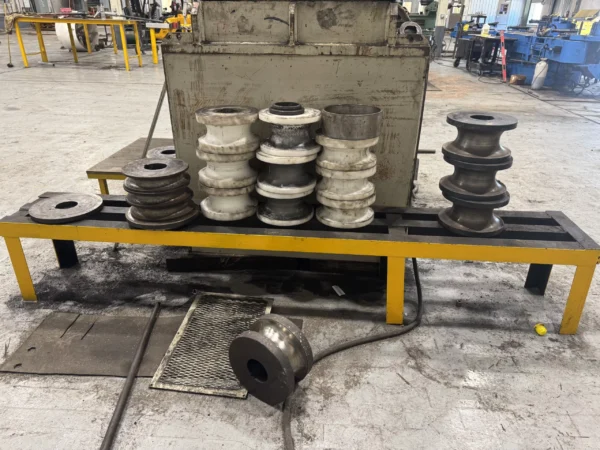

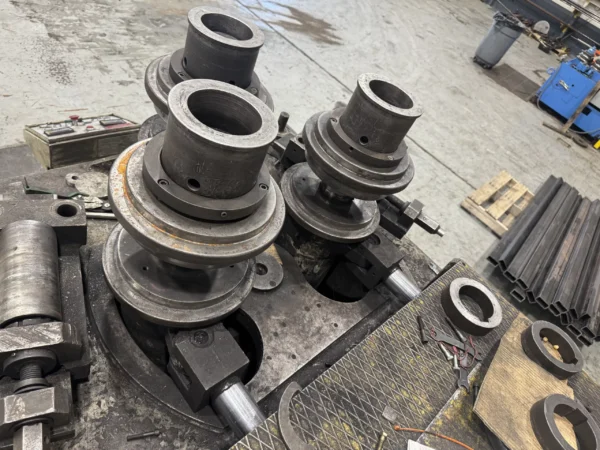

The bender is under power and can be viewed by appointment in Alabama. Tooling is included; contact us for the available tooling and a quote.

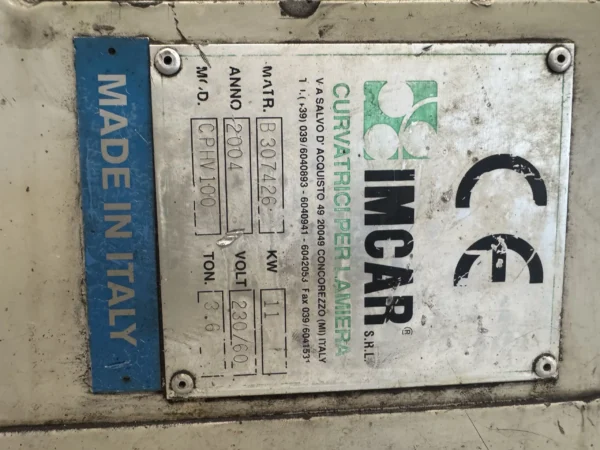

Model: CPHV-100
Shaft Diameter: 100mm (3.95″)
Typical Platform Capacity: 4″ x 4″ x 1/2″ angle; 3-1/2″ Sch 40 pipe; 5″ round tube x 12 ga.; 3″ round solid; 2-3/8″ solid square; 3″ x 1/4″ wall square tube

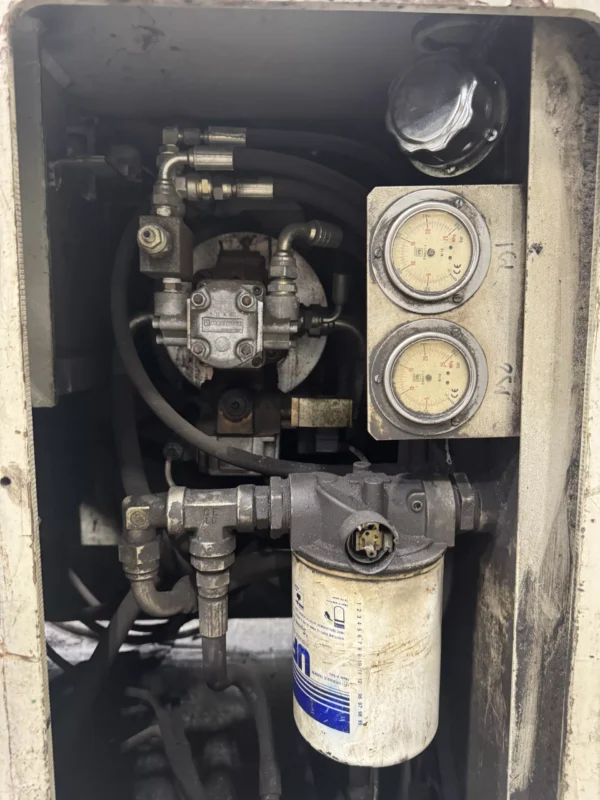

Driven Rolls: 3 (hydraulic)
Operation: Horizontal/Vertical
Motor: ~10-15 HP

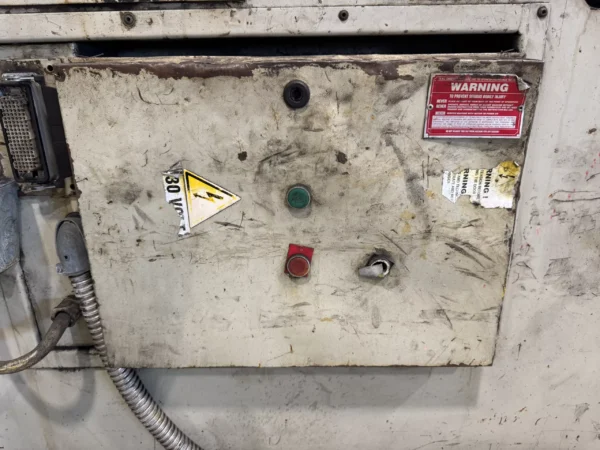

Electrical: 220V, 3-phase

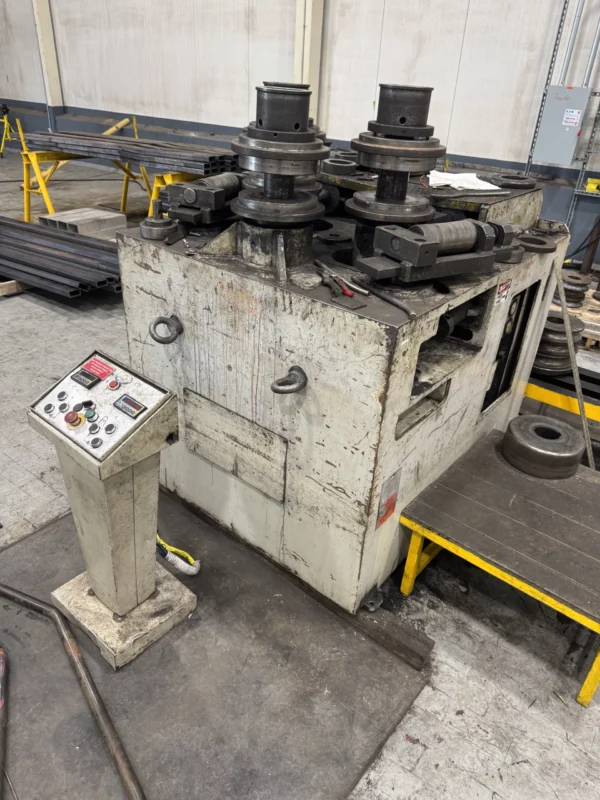

Control: Dual LED digital displays for roll position
Note: Full tooling list not available from seller; located in Alabama, viewable under power
