Ercolina CE 100 Roll Bender
Used Ercolina CE100 hydraulic angle roll / section bender, rated for pipe up to 4″ Schedule 40 and round tube up to 4-1/2″ OD.
Brand:
Ercolina
Model:
CE 100
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

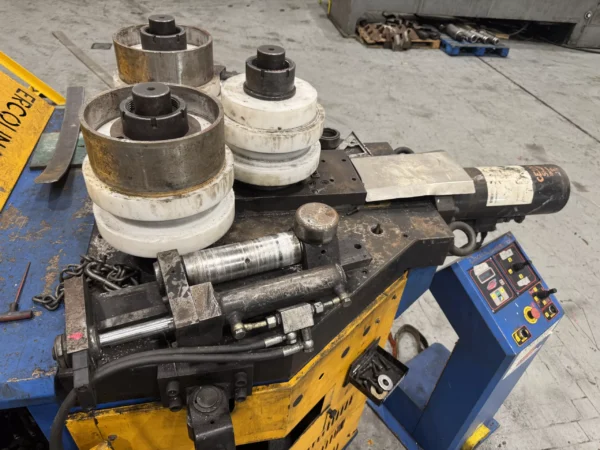

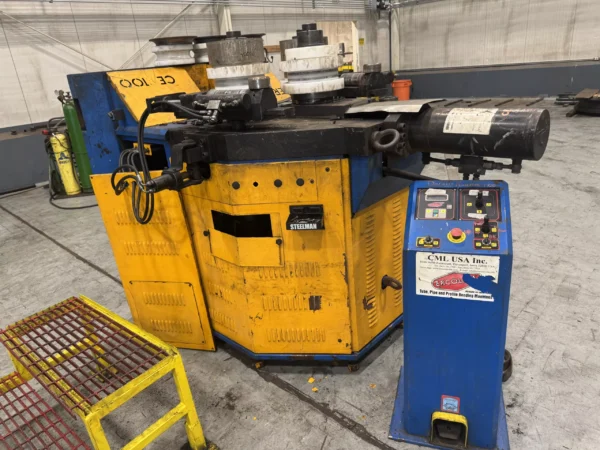

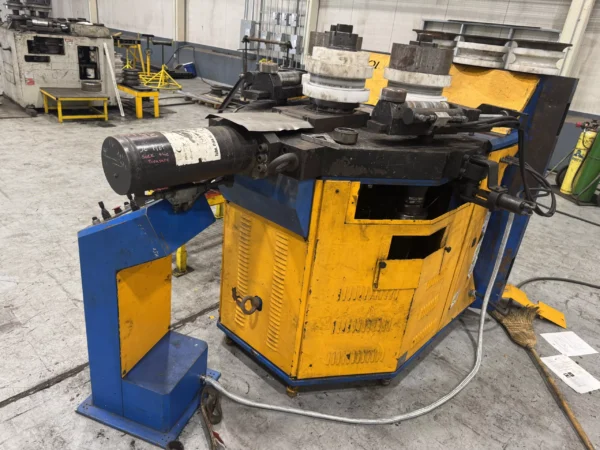

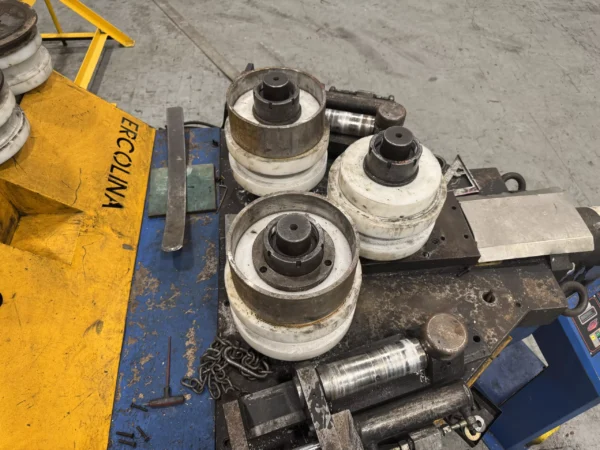

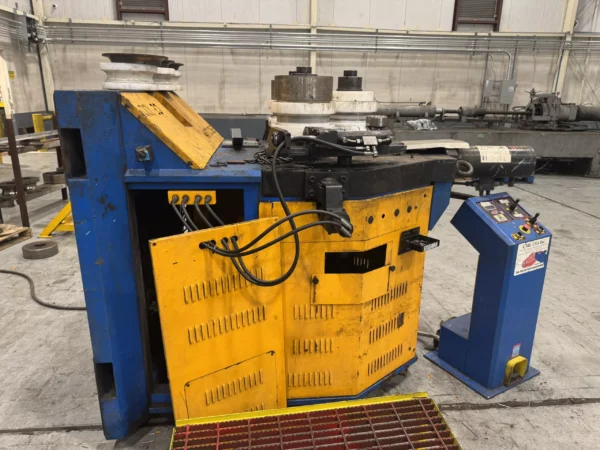

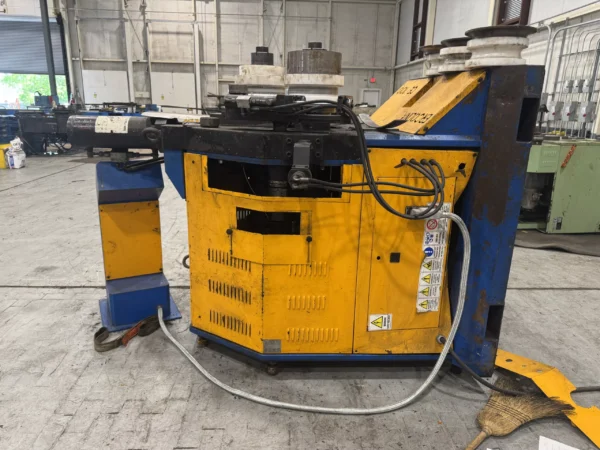

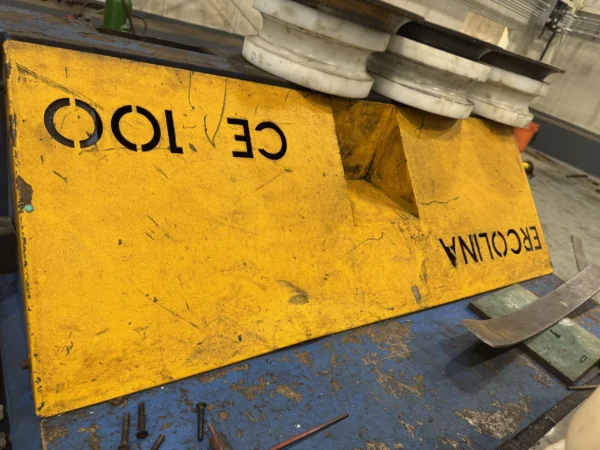

This used Ercolina CE100 is a 3-roll hydraulic angle roll and section bender with 100 mm roll shafts. It is rated for round tube from 1/4″ to 4-1/2″ OD, pipe up to 4″ Schedule 40 and angle up to 4″ x 4″ x 1/2″, with bends from 0° to 360°.
- Center roll positioning: hydraulic, approx. 16 tons
- Bending speed: up to 8 RPM

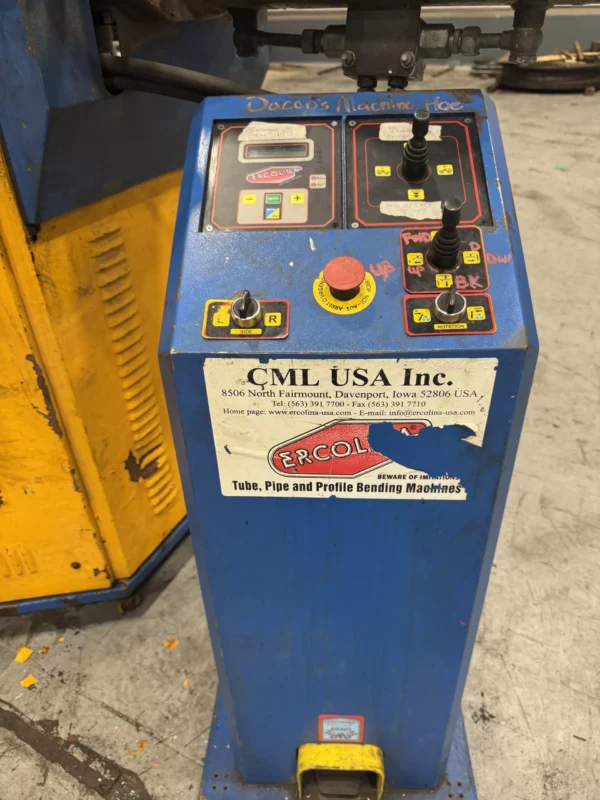

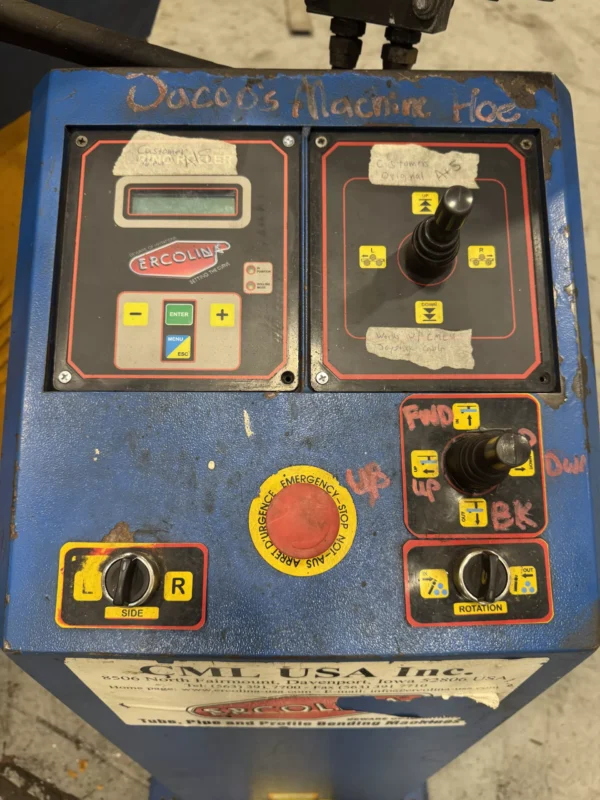

- Control: NC touchpad
- Electrical: 220V or 440V, 3-phase

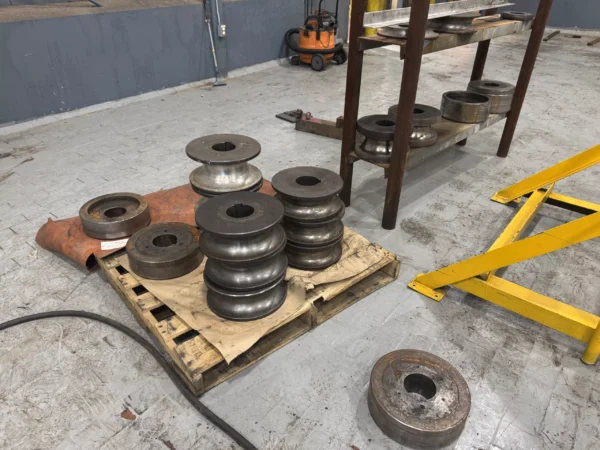

The bender can be seen under power by appointment in Alabama. Tooling is included; contact us for the available tooling and a quote.

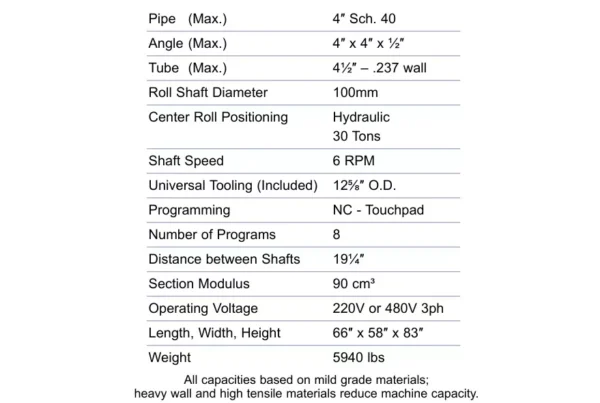

Model: CE 100
Roll Shaft Diameter: 100mm
Round Tube Capacity: 1/4″ (min) – 4-1/2″ (max) OD
Pipe Capacity: Up to 4″ Schedule 40
Angle Capacity: Up to 4″ x 4″ x 1/2″
Drive: 3-Roll
Degree of Bend: 0° – 360°
Bending Speed: Up to 8 RPM
Center Roll Positioning: Hydraulic, ~16 tons
Control: NC Touchpad
Electrical: 220V or 440V, 3-phase
Note: Full tooling list not available from seller
