Clarke & Lewis UTB CL-TCB-200 Tube Coiling Machine

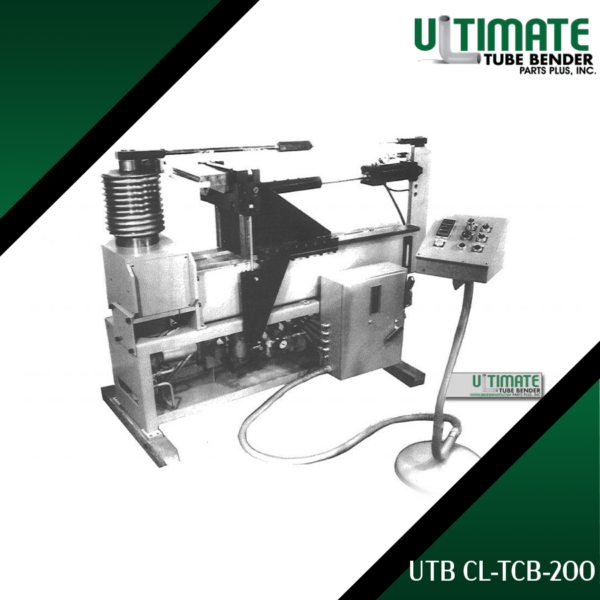

The Clarke & Lewis CL-TCB-200, item number UTB CL-TCB-200, is a heavy-duty coiling machine that wraps tube around a coiling die to form continuous, multi-turn coils. It is built for copper coils up to 3″ diameter, with an overarm tie that keeps the spindle rigid on large coils.

How it works. A hydraulically actuated pressure die holds the tube against the coiling die, with die pressure set and displayed at the console. System pressure is also adjustable and displayed. The operator enters the total degrees of rotation, for example 720° for a two-turn coil, and sets a slow-down point so the variable-speed spindle eases into the final angle. A jog control moves the spindle for setup and testing, and a CW-CCW switch reverses rotation so the finished coil can be unwound from the die.

Where it fits. Preset rotation keeps repeat coils consistent from part to part, and the overarm tie handles large, heavy coils. It’s great for:

• Heat exchanger coils
• HVAC and refrigeration evaporator and condenser coils
• Tank heating and cooling coils
• Water heater, boiler and chiller coils
• Process and machine cooling coils
• Copper coils for induction heating

Tooling. Coil diameter and pitch are set by the coiling die, so each coil design uses its own die. Include tube OD, wall thickness, material, coil diameter, pitch and number of turns when you request a quote for the UTB CL-TCB-200.

Related equipment. For rotary draw bends rather than coils, see the Clarke & Lewis hydraulic benders, such as the CL-150H and CL-215. For squaring, deburring, beading and flaring coil ends, see the UTB CL-2SD and UTB CL-3SD end finishers.
