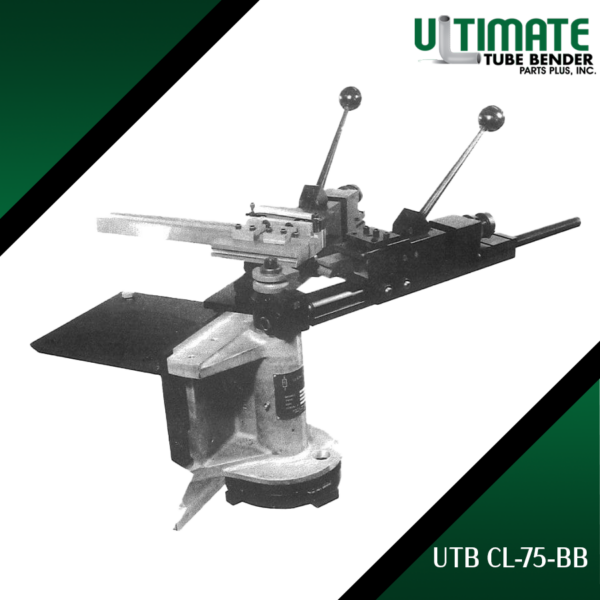

Clarke & Lewis UTB CL-75BB Bench Tube Bender

The Clarke & Lewis CL-75BB, item number UTB CL-75BB, is a hand-operated rotary draw bender built to mount on a workbench. It bends 1/4″ to 1″ OD non-ferrous tube up to 180° on a 6″ centerline radius, with 195° of bend arm travel to allow for springback.

How it works. The tube is clamped with a manual toggle, and the operator pulls the hand lever to draw the tube around the bend die. Adjustable stops set the bend angle so repeat bends match, and a second stop is available for parts with two bend angles. A hanger-type master bar is included. Optional mandrel and die accessories extend the bender to thin-wall tube and other sizes.

Where it fits. At about 175 lb and 24″ x 20″ of bench space, the CL-75BB fits shops with no floor space to spare. It’s great for:

• Copper HVAC and refrigeration lines
• Aluminum and copper instrument, fuel and hydraulic lines
• Repair benches and maintenance shops
• Prototype and one-off parts
• Low-volume repeat bends using the adjustable stops
• Trade schools and training programs

Tooling. Bend dies, clamp blocks and optional mandrels are matched to tube OD, wall and radius. Include tube OD, wall thickness, material and the bend angles you need when you request a quote for the UTB CL-75BB.

Other manual benders. For a vise-mounted bender for 3/4″ mild steel, see the UTB CL-75. For tube up to 1-1/4″ OD with 8 ft over mandrel and 10-bend preset stops, see the UTB CL-75M. For smaller tube from 1/8″ OD, see the UTB CL-62. UTB also supplies new replacement parts for Clarke & Lewis machines.
