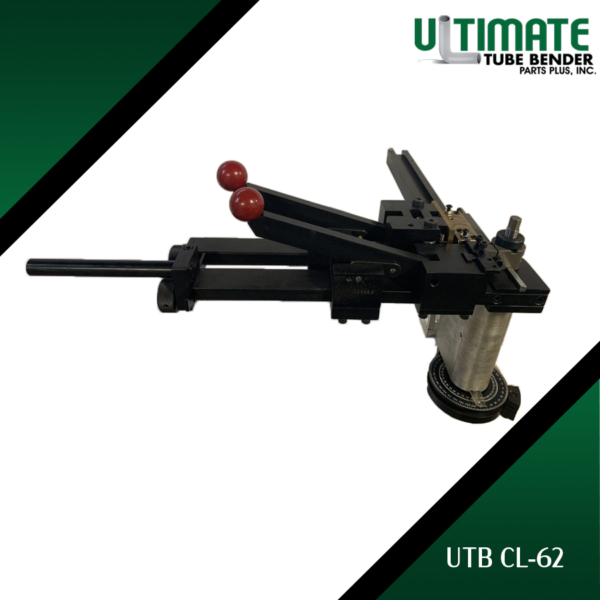

Clarke & Lewis UTB CL-62 Manual Tube Bender

The Clarke & Lewis CL-62, item number UTB CL-62, is a manual rotary draw tube bender for small-diameter tubing. It bends 1/8″ to 1/2″ OD ferrous tube and 1/8″ to 5/8″ OD non-ferrous tube up to 195°, on centerline radii from 1/2″ to 4″.

How it works. The tube is held against the bend die by a manual toggle clamp, and the operator pulls the bend arm around the fixed die to the set angle. The machine uses a 1/2″ bend post with an adaptor for Type 10 tooling. Rotation is counterclockwise as standard, with clockwise available on request.

Where it fits. The CL-62 is made for accurate bends in small tube, where a larger bender is more machine than the job needs. The 195° range covers return bends as well as standard 90° and 180° work. It’s great for:

• Instrument, gauge and pneumatic lines
• Copper and aluminum refrigeration and HVAC lines
• Small hydraulic, fuel and brake lines
• Lab, gas and fluid-handling tubing
• Prototype and sample parts
• Maintenance repairs and one-off replacement lines

Ordering. Bend dies are specific to tube OD and radius, so include your tube size, wall thickness, material, required radius and rotation when you request a quote for the UTB CL-62.

Other manual benders. For 3/4″ mild steel tube in a vise-mounted package, see the UTB CL-75. For tube up to 1-1/4″ OD, see the CL-75M, and for 1-1/2″ non-ferrous tube with a geared ratchet drive, the CL-150M. UTB also supplies new replacement parts for existing Clarke & Lewis machines.
