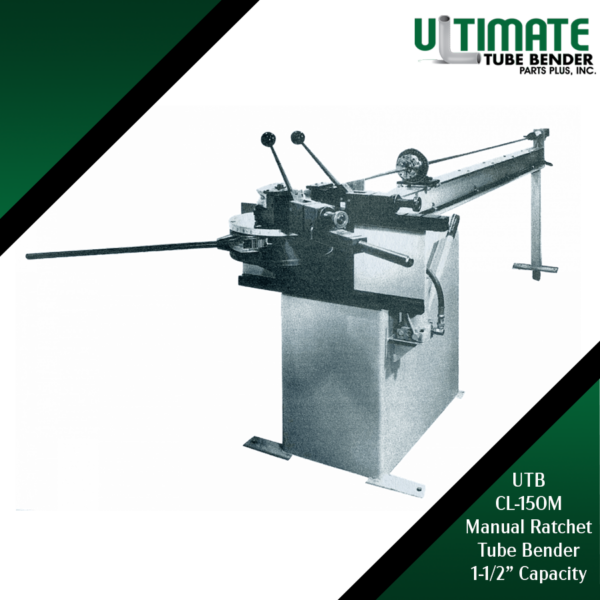

Clarke & Lewis UTB CL-150M Manual Ratchet Tube Bender

The Clarke & Lewis CL-150M, item number UTB CL-150M, is a manually operated rotary draw tube bender for accurate multi-bend parts. It bends 1/4″ to 1-1/2″ OD non-ferrous tube on an 8″ centerline radius, in either right-hand (clockwise) or left-hand (counterclockwise) rotation.

How it works. The tube is clamped by hand to a rotating bend die and drawn around it. A pressure die rides on its bolster, sliding with the tube and holding it tangent to the bend die. A 4:1 geared ratchet multiplies the operator’s effort, so larger tube bends without a hydraulic drive. For thin-wall tube, a mandrel and wiper die support the inside and the throat of the bend, and a hydraulic hand-pump extractor pulls the mandrel after each bend.

Built for multi-bend parts. The bender mounts on a steel table and cabinet with a wiper die bracket and a plane-of-bend carriage with an angle indicator. Bends can be placed in different planes accurately, without a powered machine.

Where it fits. The CL-150M gives mandrel-quality bends in small shops and low-volume work, with no power required. It’s great for:

• Aircraft hydraulic, fuel and pneumatic lines
• Copper and aluminum HVAC and refrigeration tube
• Prototype and sample parts
• Low-volume multi-bend assemblies
• Instrument and small hydraulic lines
• Maintenance shops, MRO stations and training programs

Tooling. Bend dies, clamp and pressure dies, wiper dies and mandrels are matched to tube OD, wall and radius. UTB carries bend dies and mandrels. Include tube OD, wall thickness, material and rotation when you request a quote for the UTB CL-150M.

Other manual benders. For smaller tube from 1/8″ OD, see the UTB CL-62. For 3/4″ mild steel tube in a vise-mounted package, see the UTB CL-75. UTB also supplies new replacement parts for Clarke & Lewis machines.
