Clarke & Lewis CL-200EB – Hydraulic Extrusion Bender

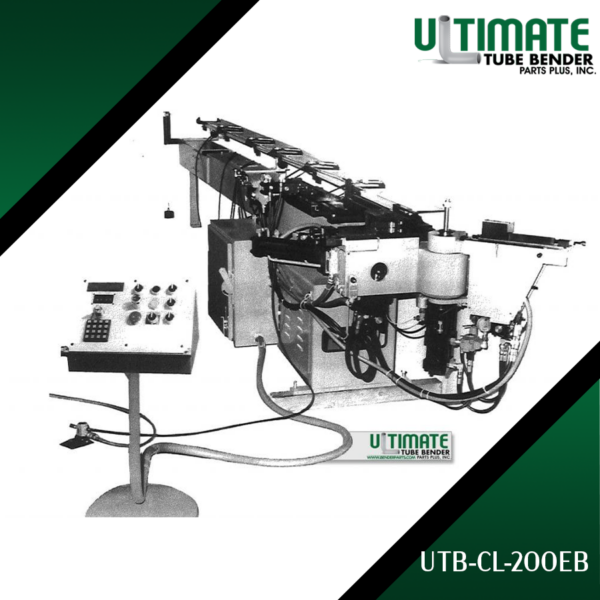

The Clarke & Lewis CL-200EB, item number UTB CL-200EB, is a hydraulic rotary draw bender built for bending extruded profiles as well as tube. Split dies, a vertical hydraulic die closer and a gripper retarder handle open profiles with horizontal legs, while a hydraulic mandrel extractor supports closed sections. Standard length over mandrel is 10 ft, with longer lengths available.

How it works. The vertically operated hydraulic die closer clamps the split dies automatically in the bend cycle. A digital bend control stores up to 40 bend angles, so multi-bend parts run without resetting. Manual degree-of-bend stops under the machine nose include a springback compensation dial for fine adjustment. On long horizontal-leg extrusions, the gripper retarder controls the material through the bend, and an adjustable stop table with a pneumatic foot switch locates parts for repeat bends. Pressure-sensitive safety mats guard the area under the swing arm and around the safety post.

Where it fits. The CL-200EB is made for shops that bend profiles, not just round tube. It’s great for:

• Aircraft stringers, frames and other aluminum extrusion parts
• Truck, trailer, bus and RV body framing
• Window, door and curtain-wall framing
• Architectural trim, signage and display frames
• Rectangular and square tube frames bent over a mandrel
• Production runs of repeat multi-bend parts

Tooling and options. Extrusion tooling is matched to each profile’s shape and dimensions. Send a profile drawing or sample, plus material, temper and required radii, when you request a quote for the UTB CL-200EB. Extended mandrel lengths and automatic mandrel lubrication are available.

Related equipment. For round tube up to 2″ OD, see the CL-215 and CL-150H hydraulic benders. UTB also supplies new replacement parts for Clarke & Lewis machines.
