New Life for a Vertical Workhorse

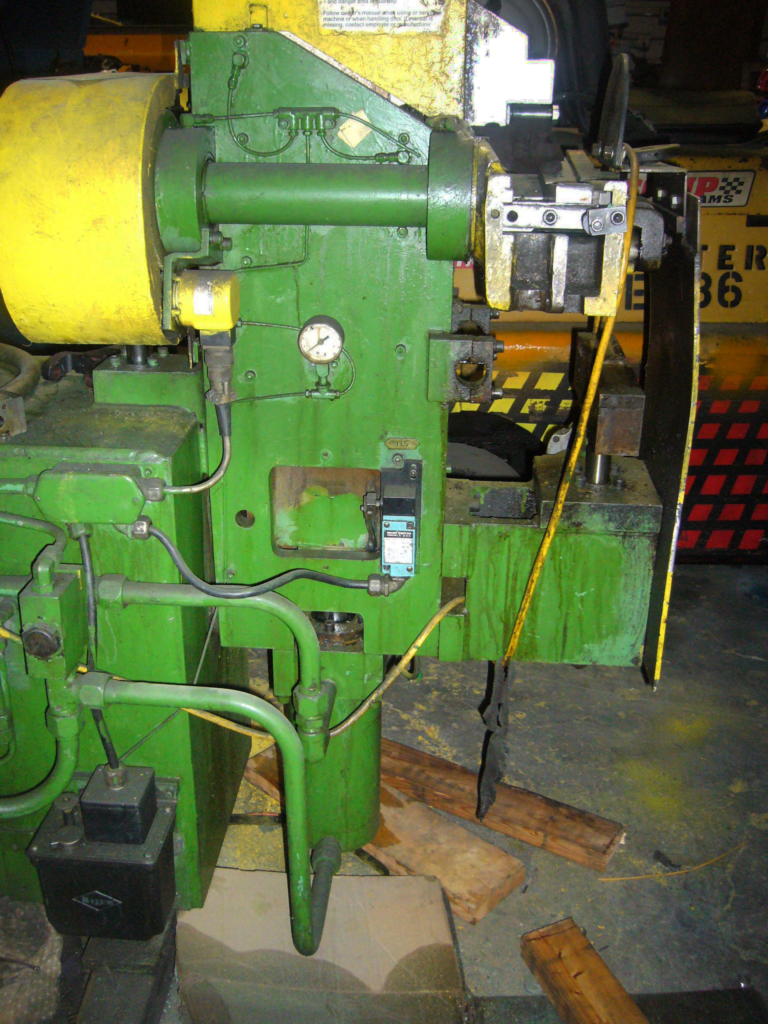

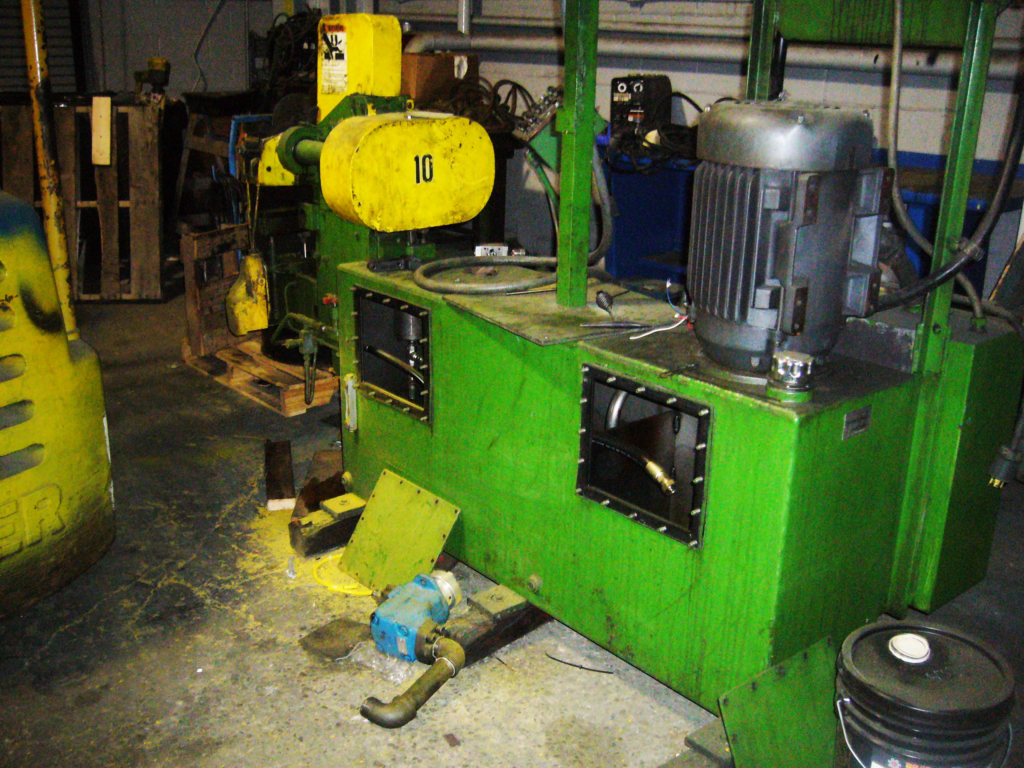

A customer running a Pines 5T vertical press bender needed to get an aging machine back into reliable production without the cost of buying new. The ram had wear across all sides, the spindle bearings were past their service life, and the controls were dated — a textbook candidate for a full rebuild.
This rebuild covered a new Current Tech digital control with an operator remote stand, new Vickers hydraulic valves and pump, a new motor and coupling, a fully re-ground ram with new phenolic wear strips, and rebuilt or new hydraulic cylinders throughout. Backed by a 1-year warranty.
All New Electronics

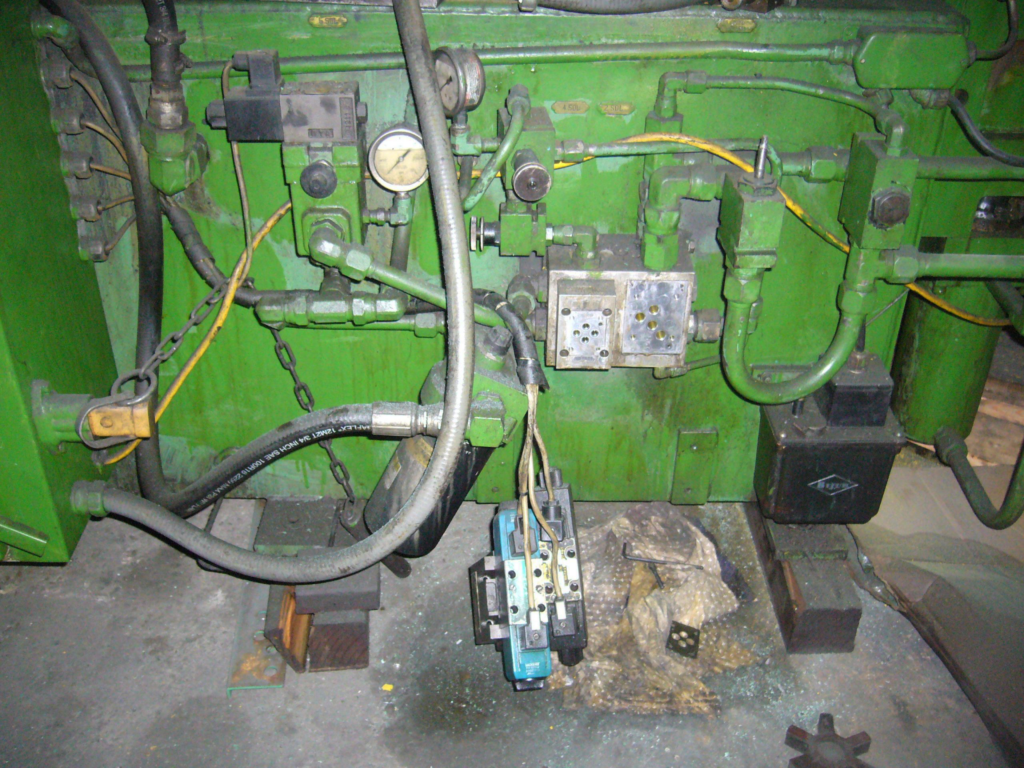

Hydraulic Cylinders, Valves, Hoses, and More

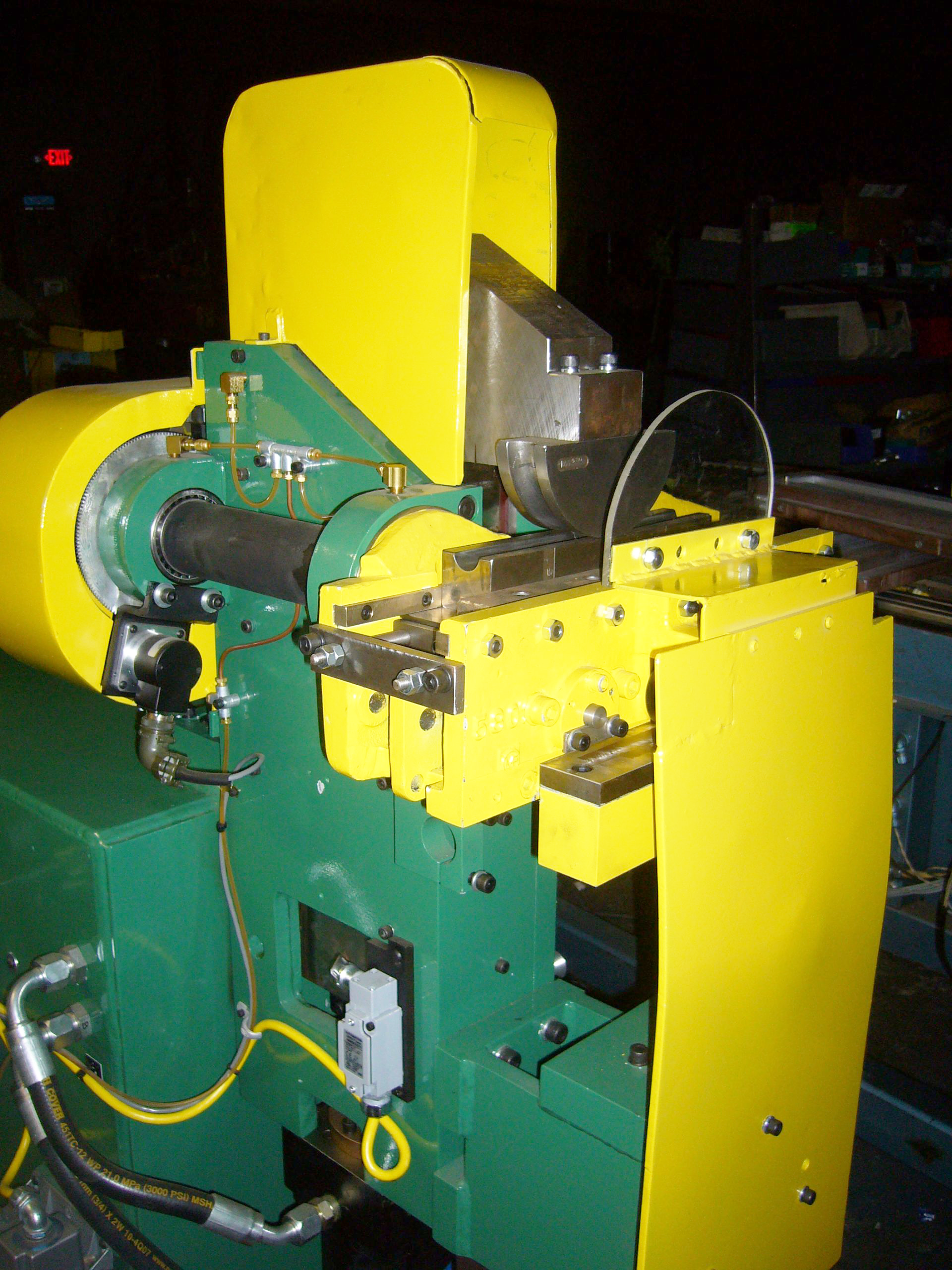

Spindle and Tooling
New Current Tech Digital Control

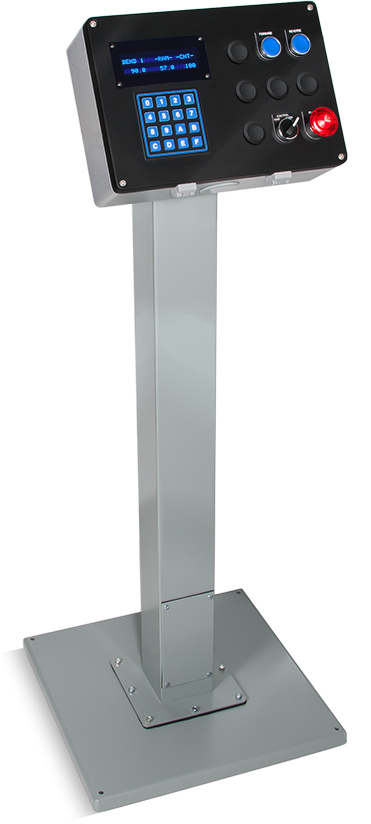

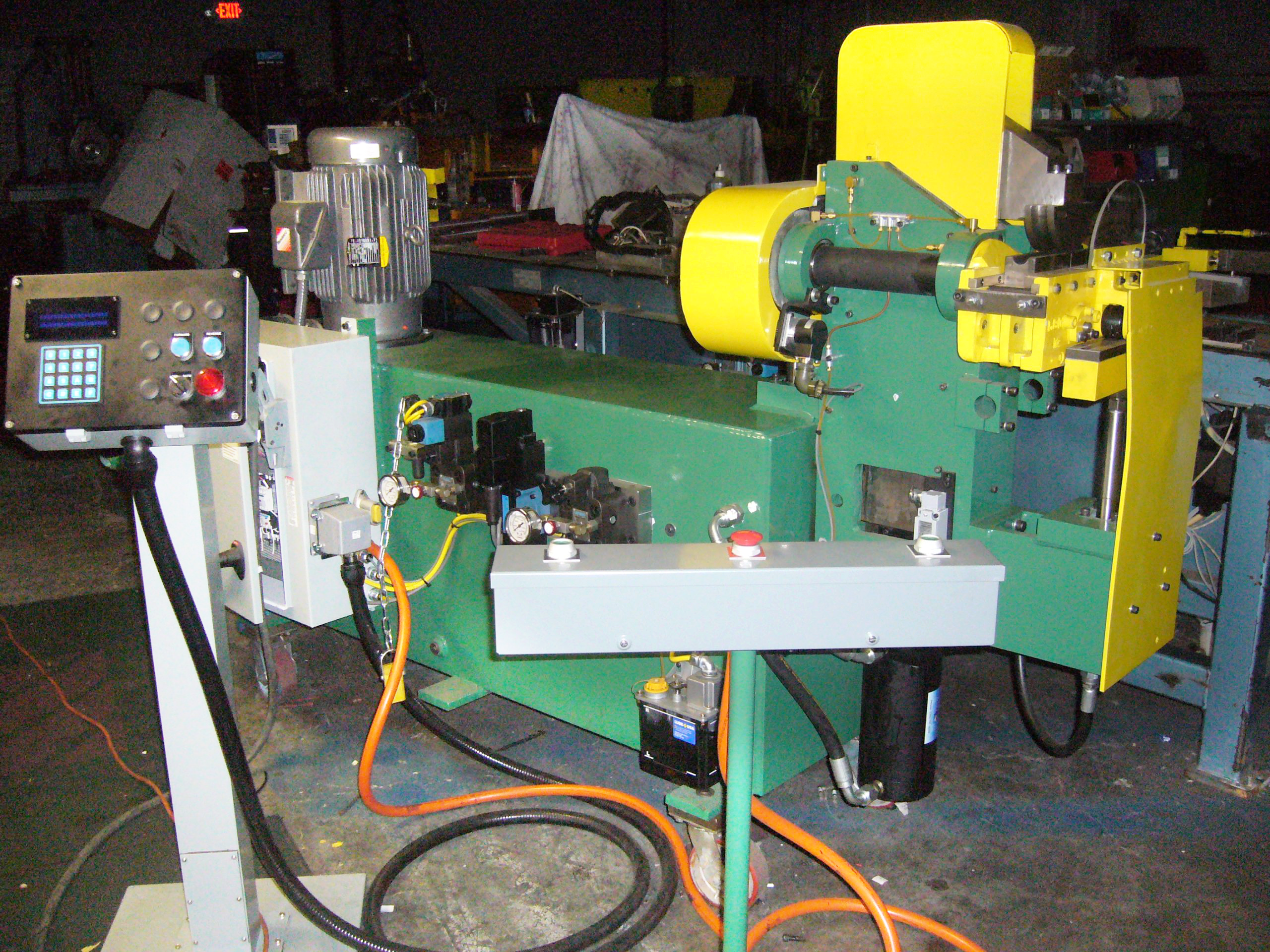

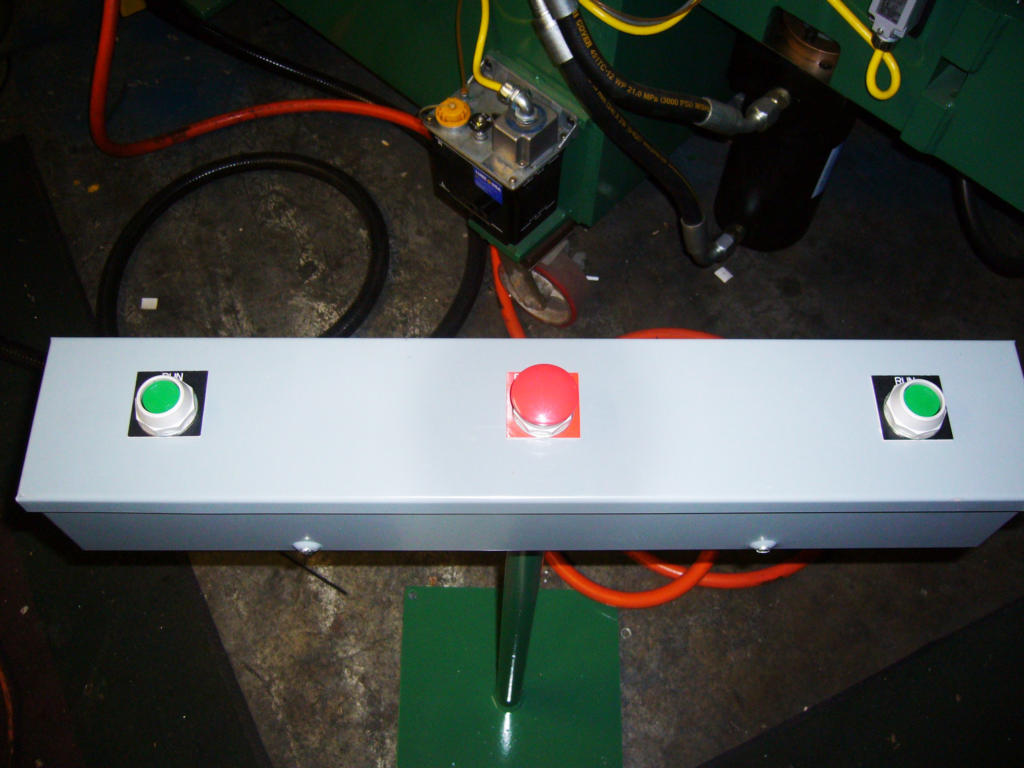

New Current Tech digital control with operator remote stand

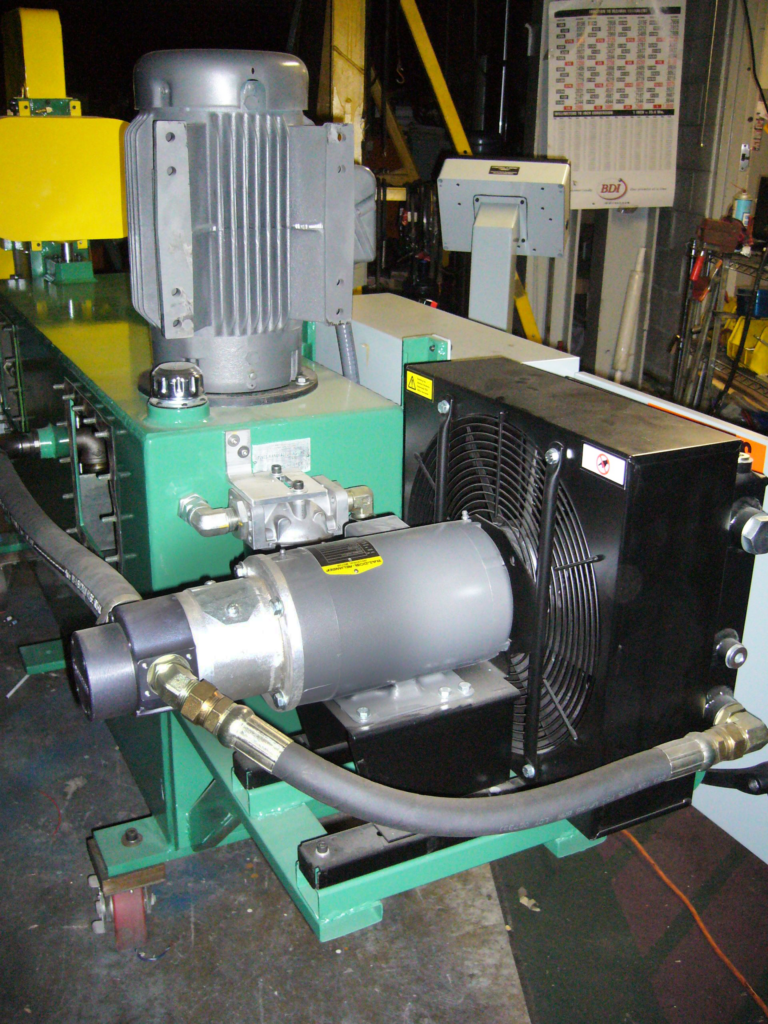

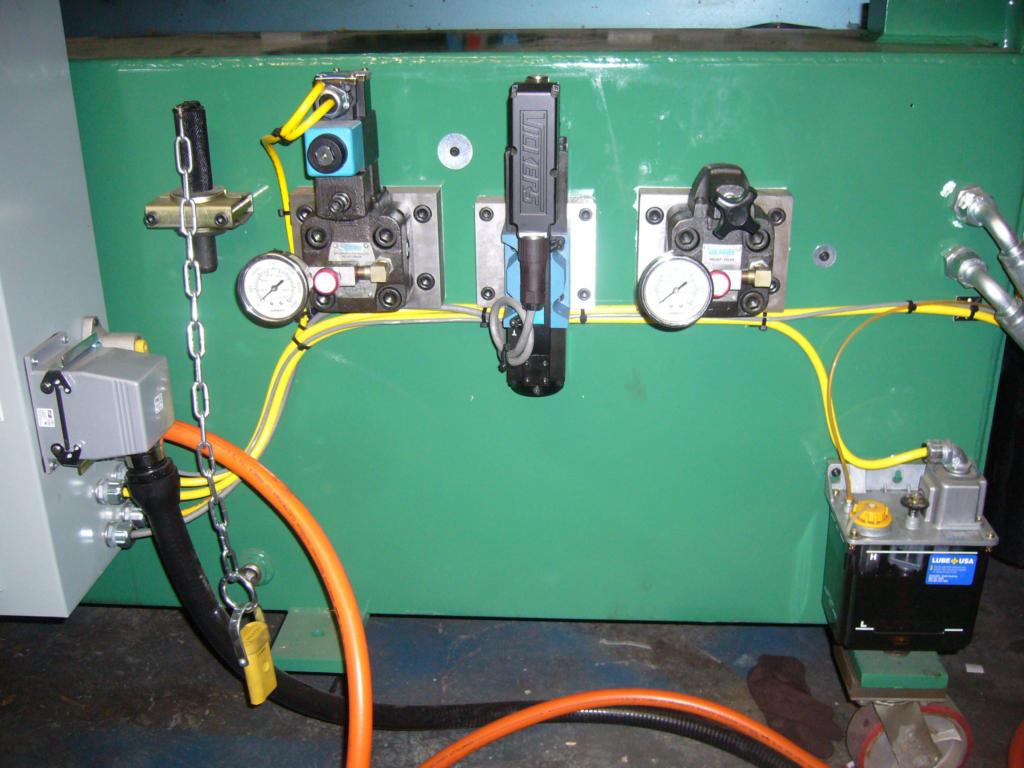

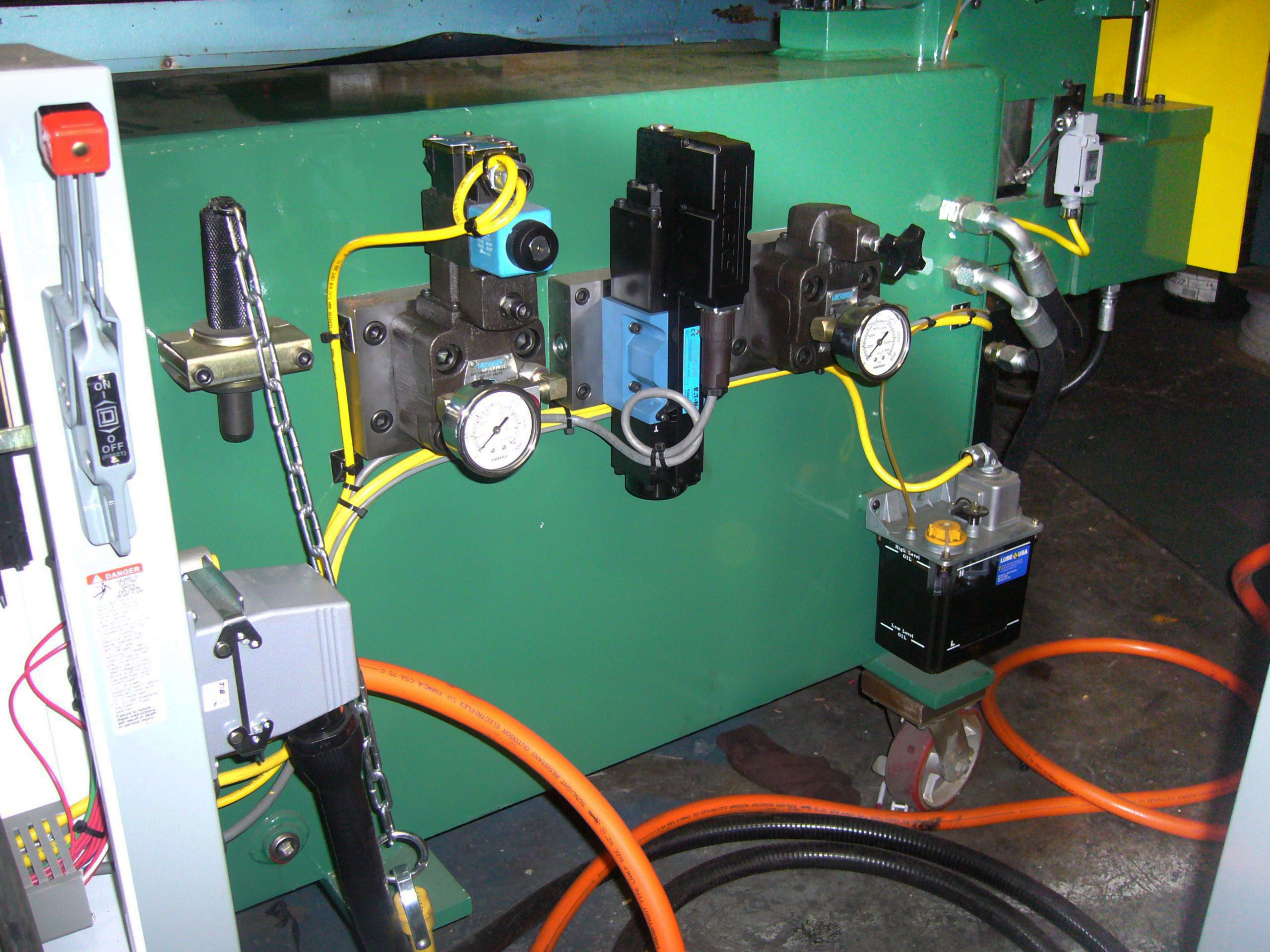

New Vickers hydraulic valves and Vickers hydraulic pump

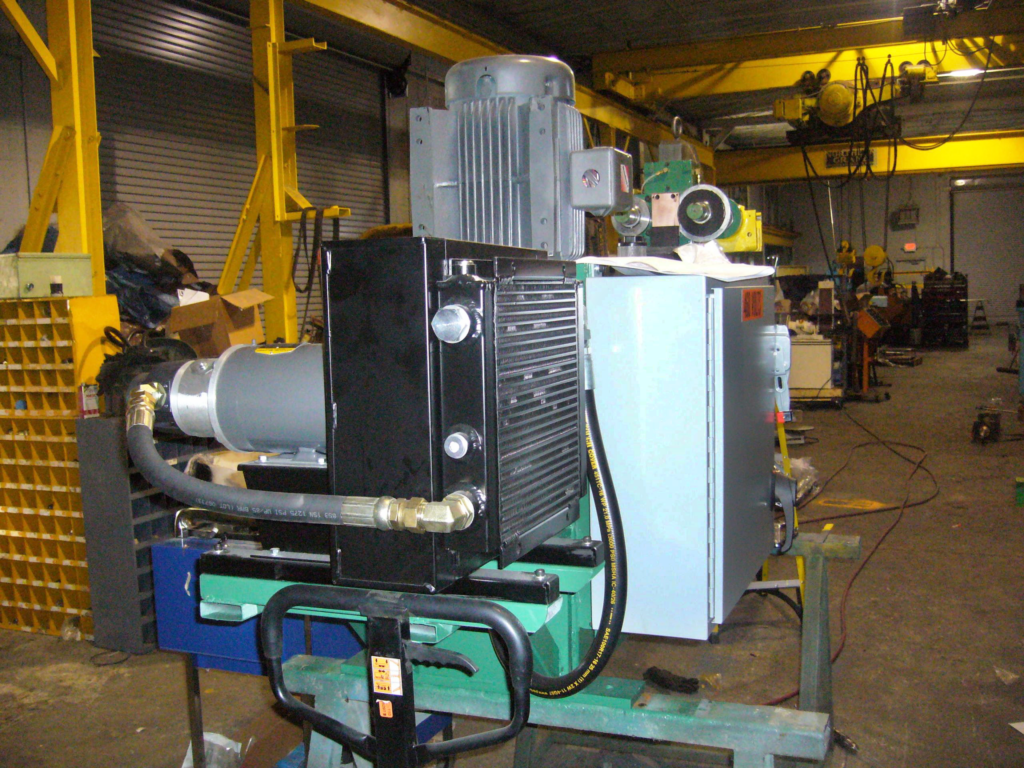

New motor & coupling
“The greatest improvement on this machine is the linear rail and pressure die holder with the outboard support because I can move it in and out with one hand.”
Richie, Kottler Metal Products, Ohio

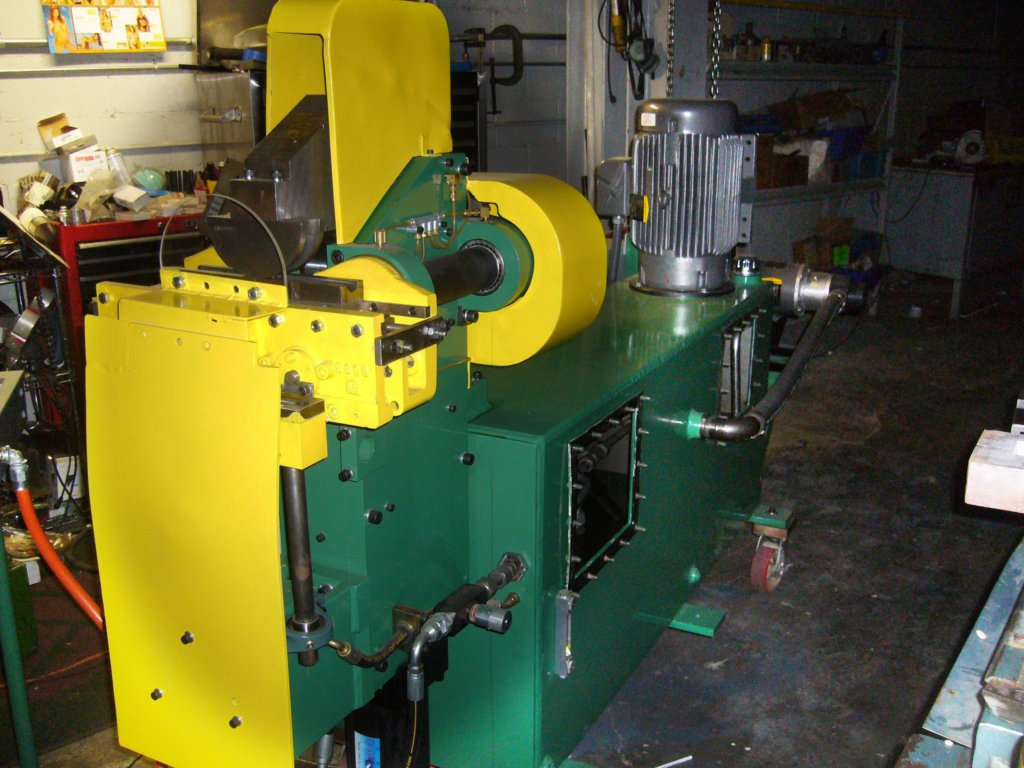

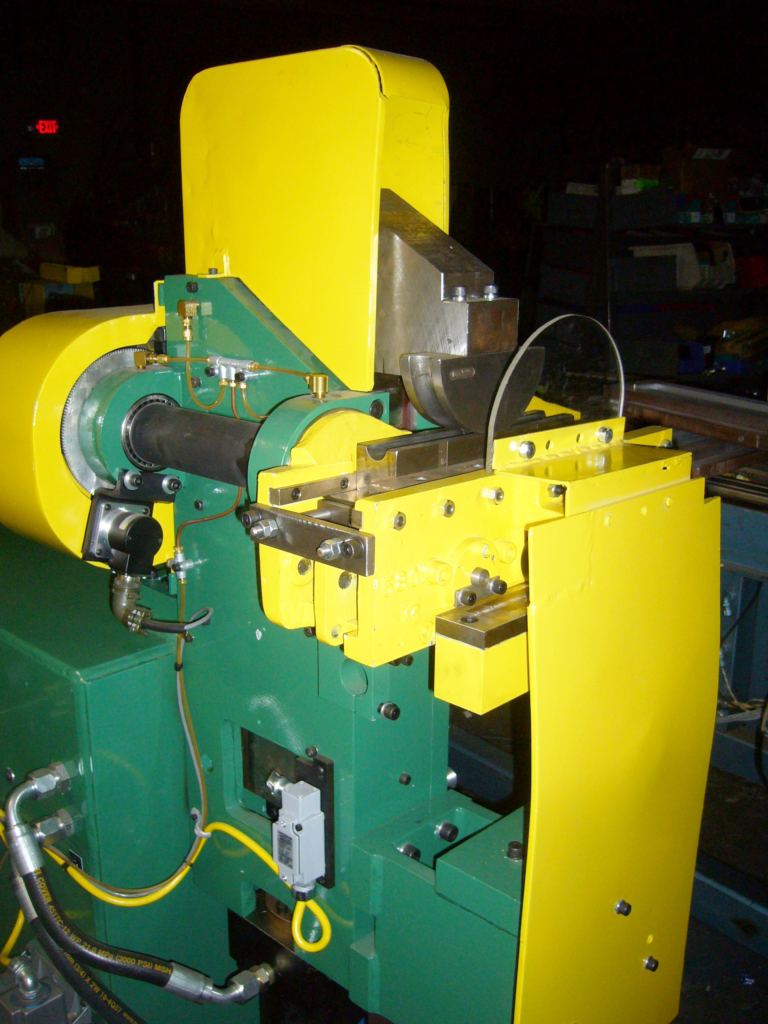

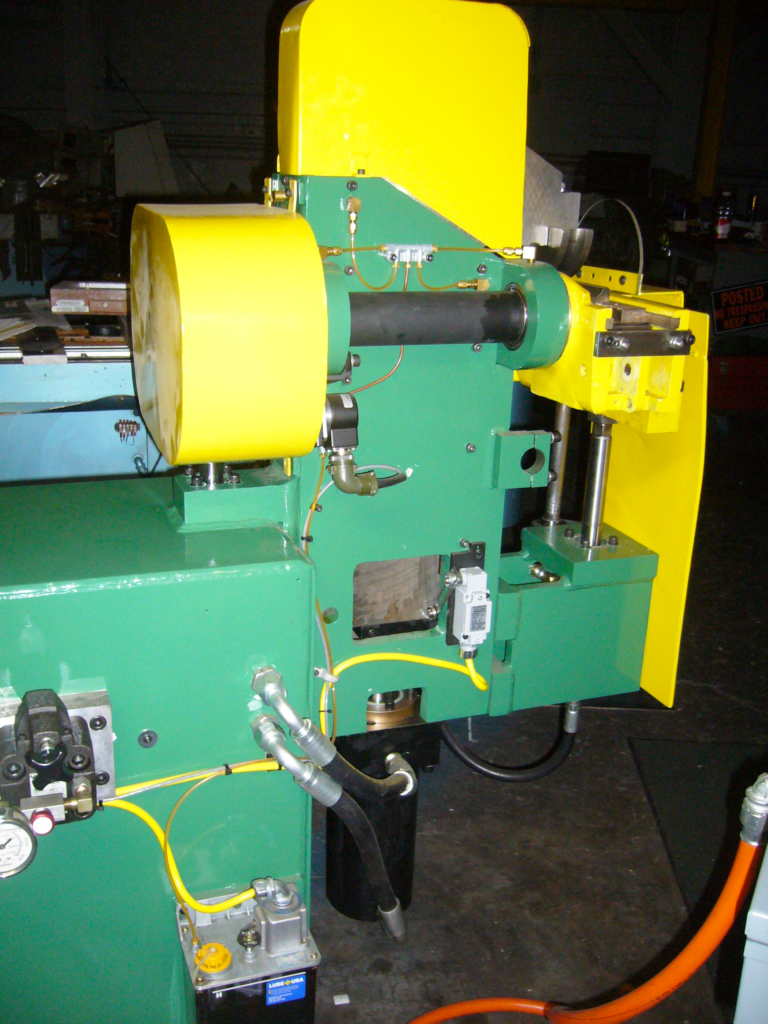

Ram & Frame Rebuilt
- Dust ground on all sides of the ram
- New phenolic wear strips for the ram
- New spindle bearings, roller bearings, spanner nuts, lock washers & pins
- New gibs & roller bearings
- New die shoes, springs & carriage bolts
Hydraulic & Electrical Updates
- Rebuilt or new hydraulic cylinders (as needed)
New Lube USA lubricator — lines, meters, junctions & fittings
New electrical disconnect box, motor starter, transformer, terminal strip, wiring & switches
