Full Rebuild, Zero Shortcuts

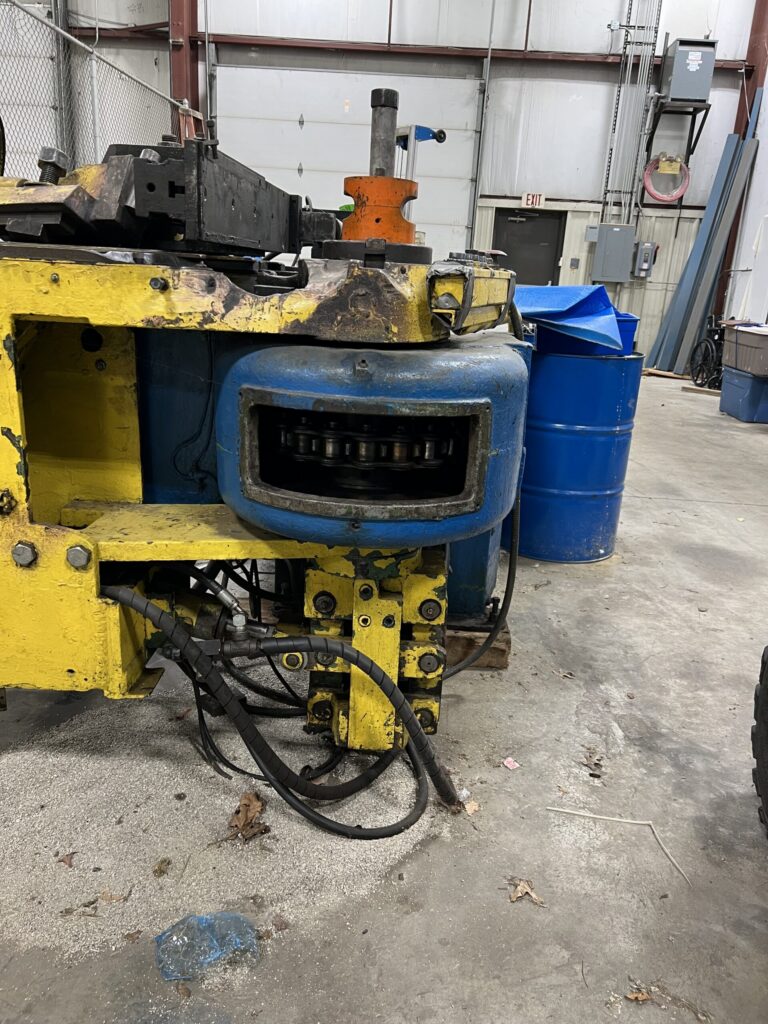

A customer running a Pines #3 in heavy daily production called us in after years of wear started showing up in bend accuracy — worn slides, a tired split-die actuator, and an aging controller that couldn’t keep up with their part mix. Rather than replace the machine outright, they sent it to us for a full ground-up rebuild.

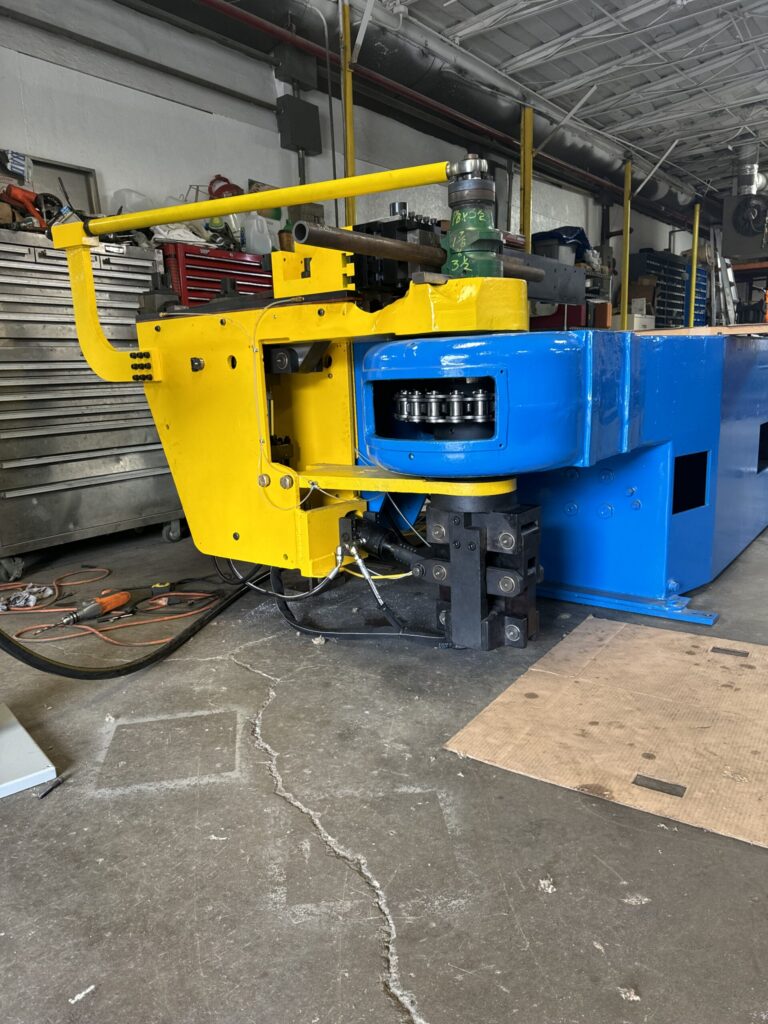

This rebuild covered the entire machine: a new Current Tech CAB digital control, complete swing arm and stationary arm reconstruction, a rebuilt split-die actuator, all-new hydraulic cylinders and valving, and a full electrical overhaul — right down to new safety switches and wireway. The machine was cleaned, sanded, and repainted, cycled, and tested before it shipped back.

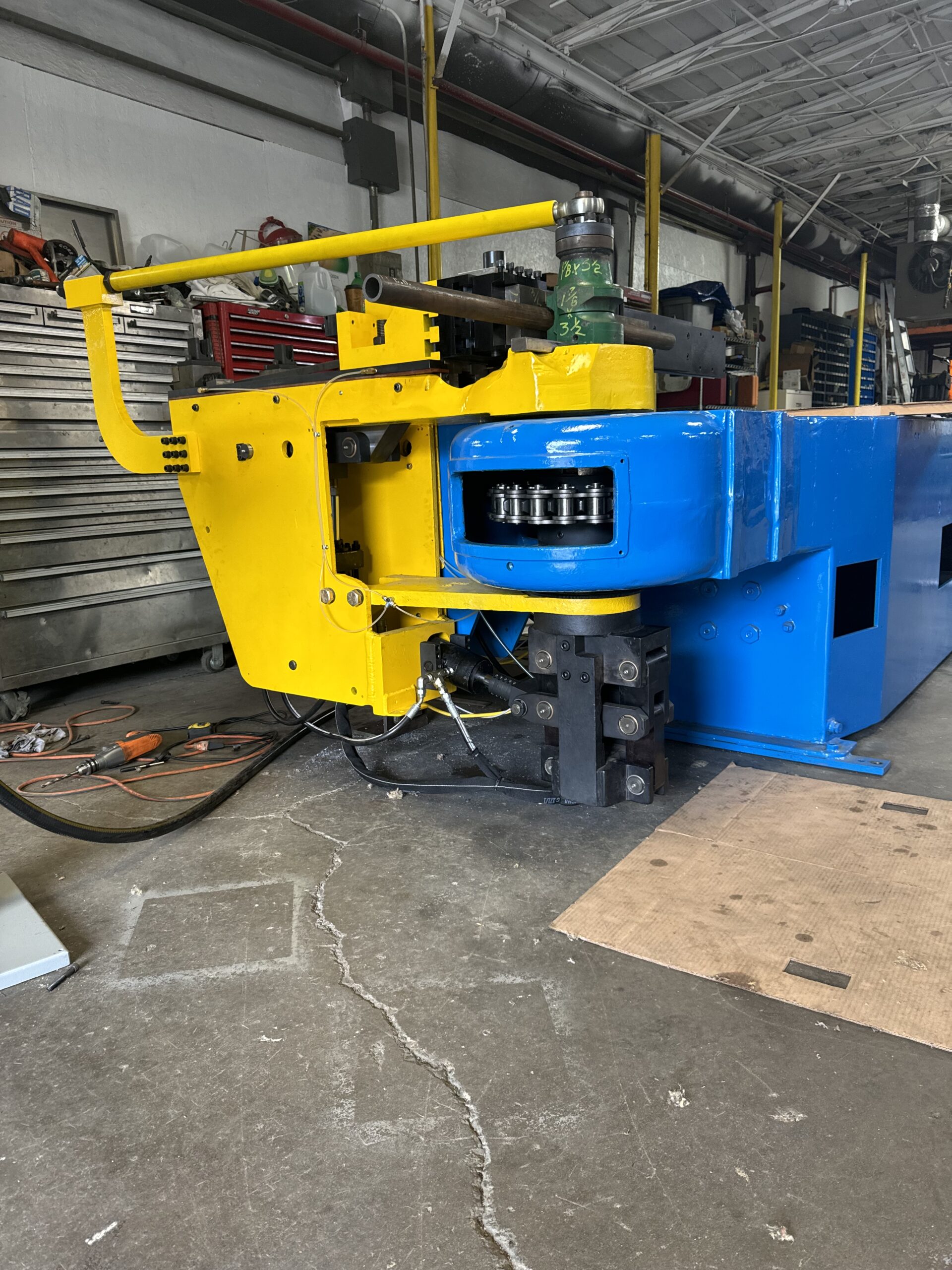

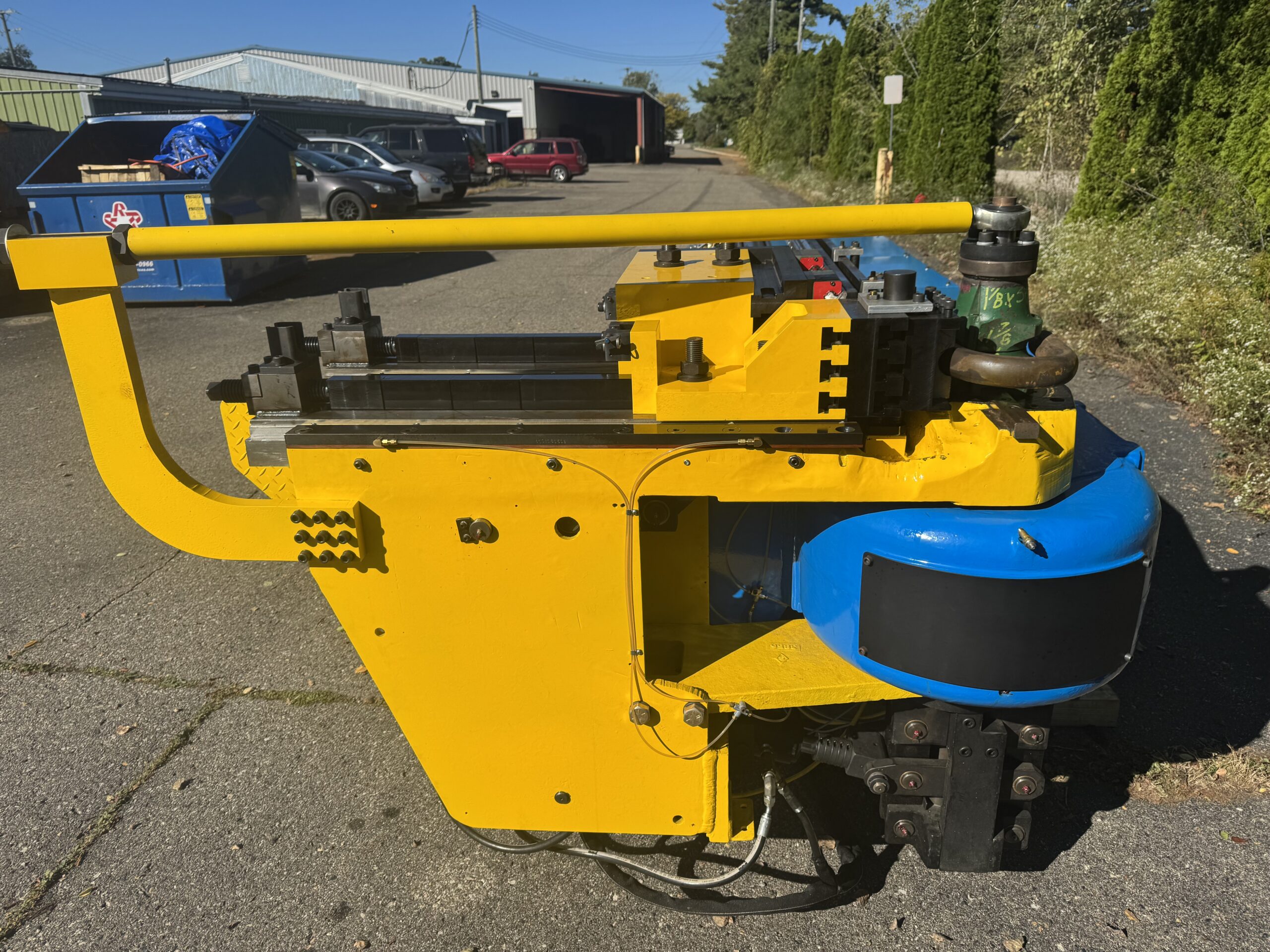

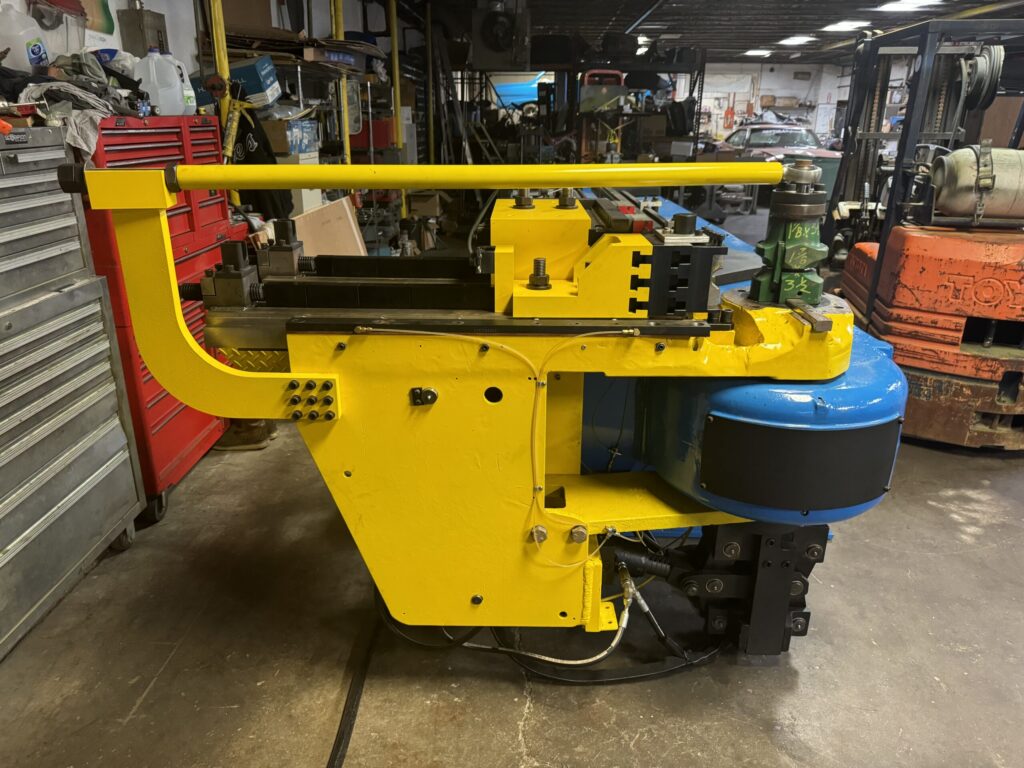

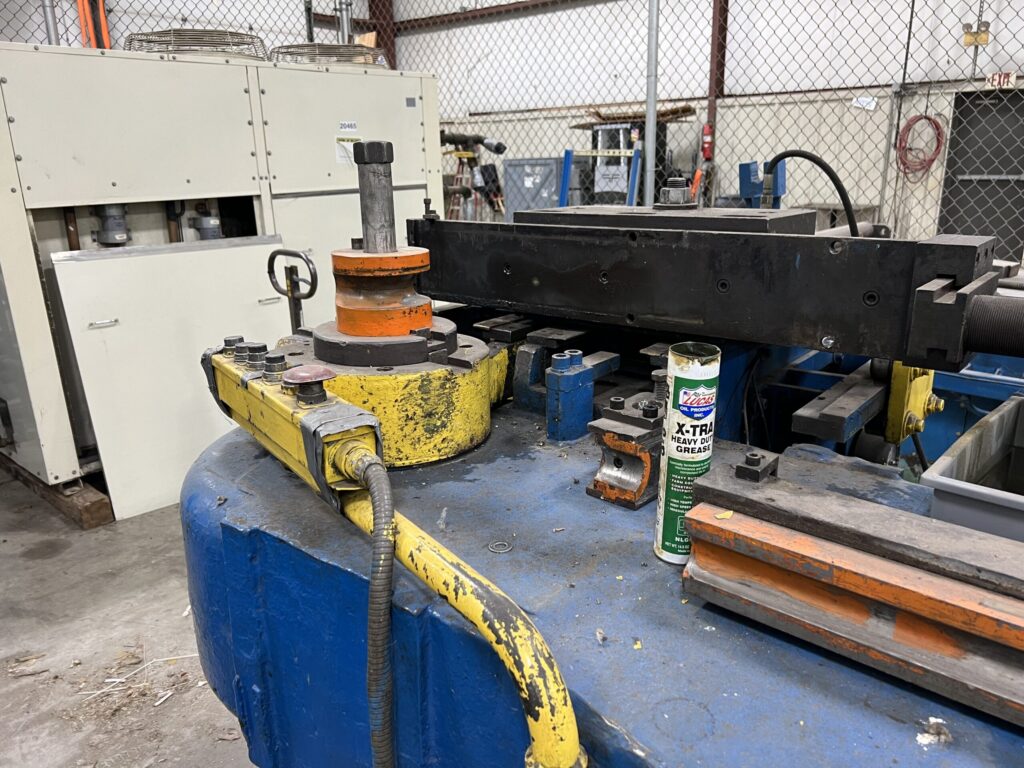

Swing Arm & Stationary Arm Rebuilt
Swing Arm:
- Removed & inspected
Repair bend die keyway and pin holes (if necessary)
Replace spindle (if necessary)
Skim cut bend die mounting surface (if necessary)
Remove & replace cup & cone spindle bearings
Replace spanner nuts — (1) standard & (1) Taperline locking style
New spindle key, bend die key, fasteners
New steel slide w/ phenolic wear strips, slide wipers, brass slide guards on clamp bars
New phenolic top wear strips, bronze gib
New clamp bars & fasteners, clamp cylinder, rod end
New pins — upper rear, rod end, slide & clevis
New toggle links
Stationary Arm:
- Inspected (arm is welded to the bender)
Repair pin holes (if necessary)
Replace fasteners
New steel slide w/ phenolic wear strips, slide wipers, brass slide guards, phenolic top wear strips, bronze gib
New clamp bars & fasteners, clamp cylinder, rod end
New pins — upper rear, rod end, slide & clevis
“The greatest improvement on this machine is the linear rail and pressure die holder with the outboard support because I can move it in and out with one hand.”
Richie, Kottler Metal Products, Ohio
Split Die Actuator Rebuild (Undernose)
R&R toggle link bushings and toggle pins
Rebuild existing split die cylinder
New bushings in spindle for split die actuator
New die post for split die actuator
New Current Tech CAB Digital Control
Bender upgraded with a Current Tech CAB digital control

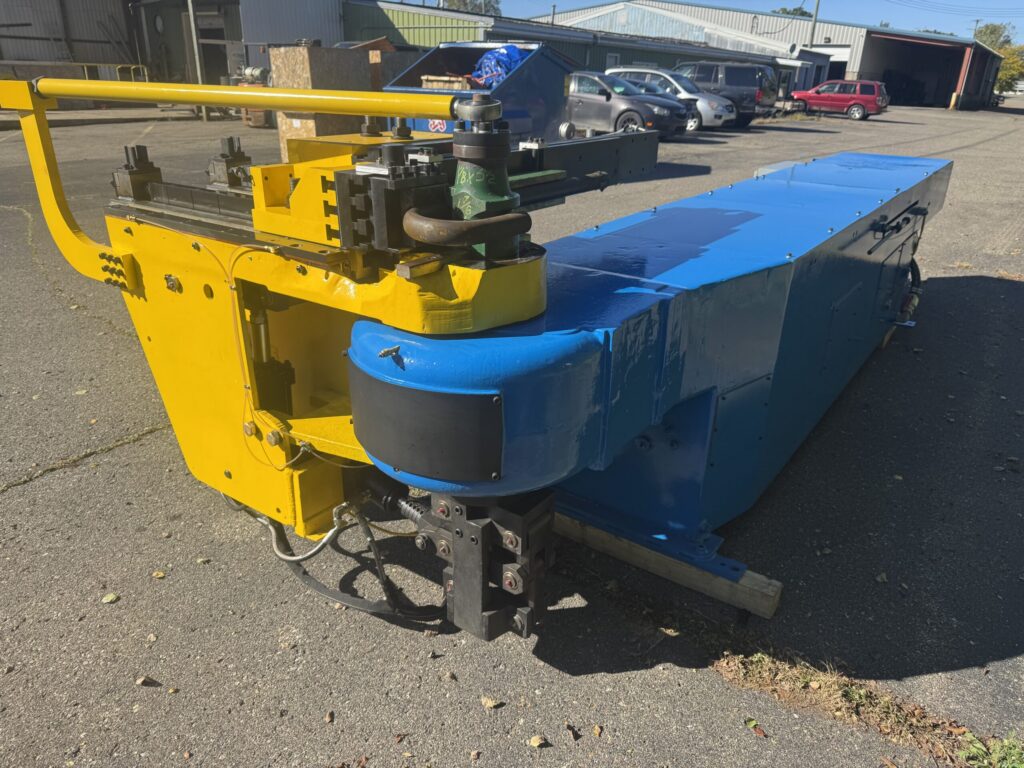

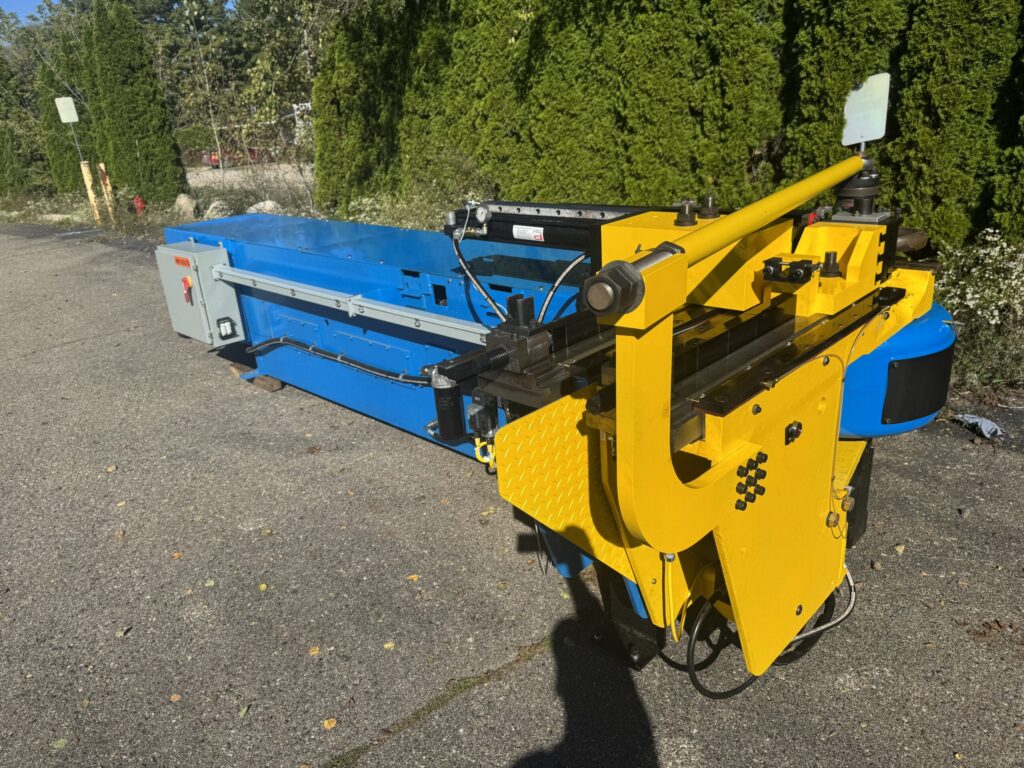

Machine cleaned, sanded & painted — customer’s choice of machine color, plus Safety Yellow or Safety Orange accents

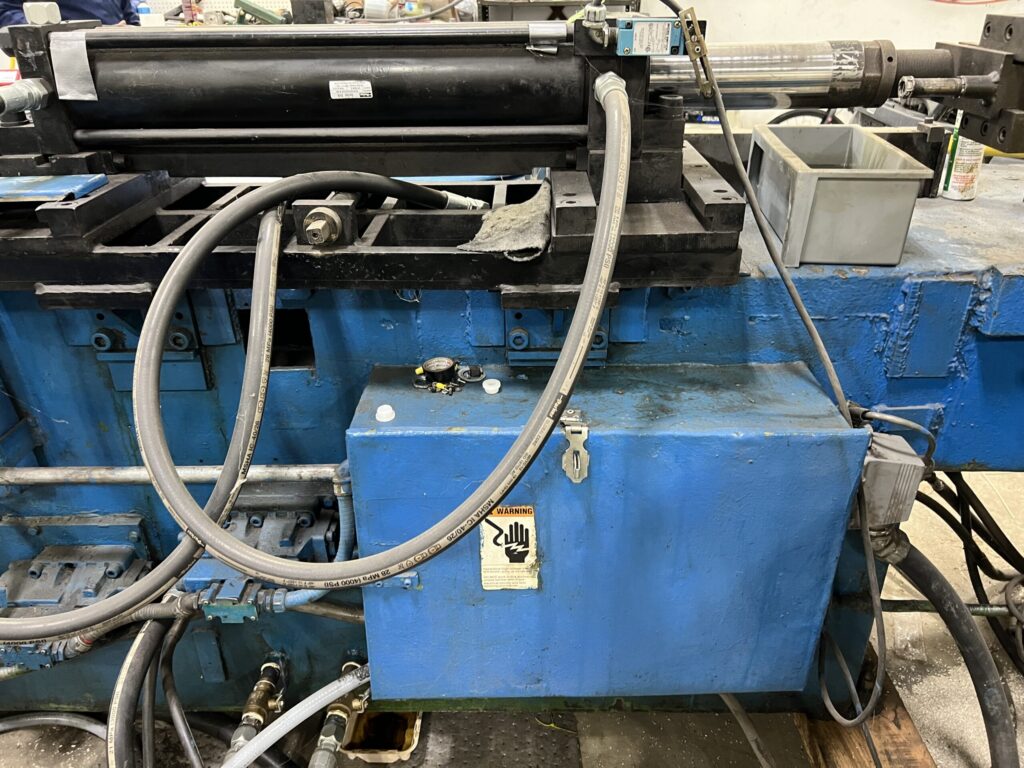

Hydraulic Updates
New hydraulic cylinders: bend, clamp, pressure die clamp, pressure die assist
New steel hydraulic manifold
Vickers bend, clamp & pressure die clamp valves (PA5 connector) with flow control
Vickers split die sequence & PO check valve (PA5 connection)
Vickers piston pump
Suction strainer, oil sight glass & pressure gauges replaced
New steel lines, new Parker hydraulic hoses & fittings
New gaskets on side oil tank covers
New Lube USA electronic slide lubricator — junctions, meters, line, ferrules & fittings

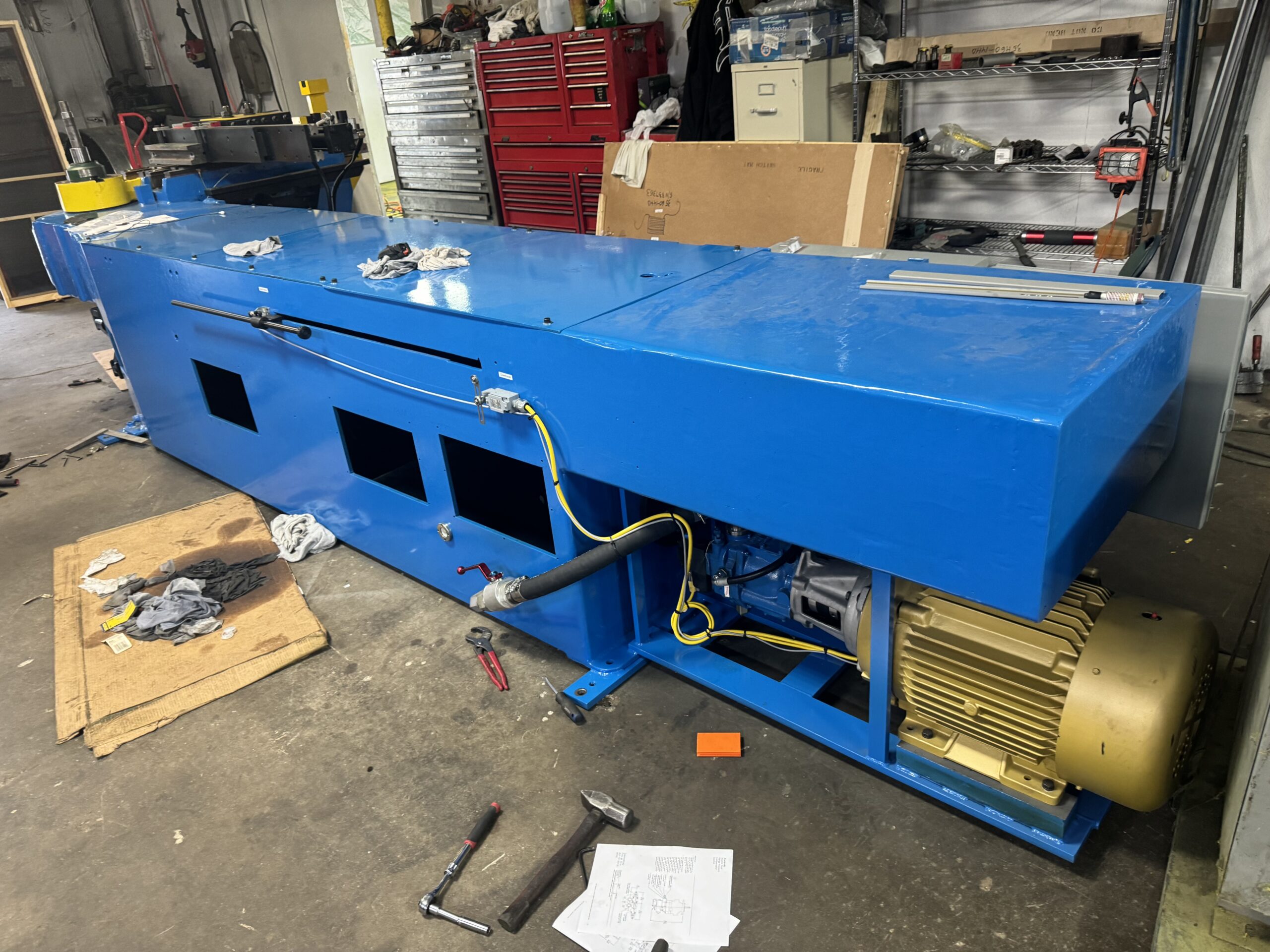

New main electric motor (TEFC, C-Faced)

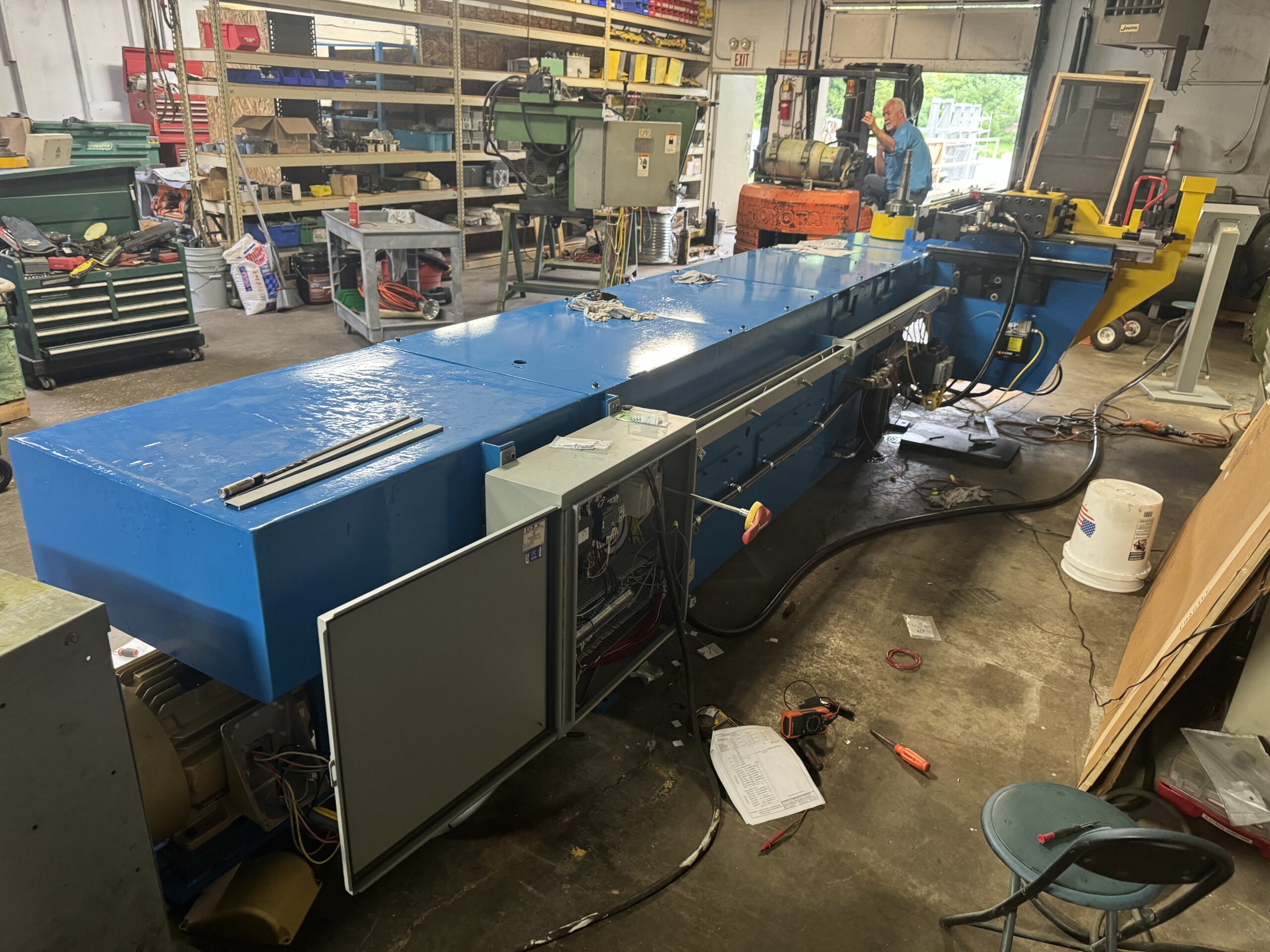

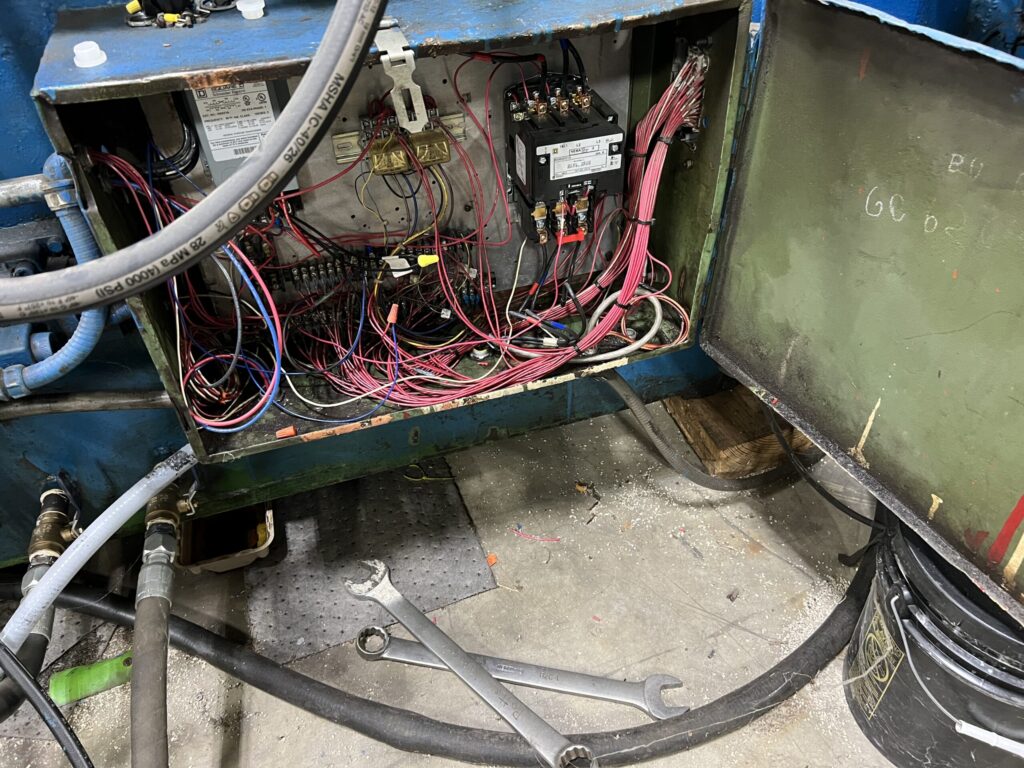

Electrical Updates

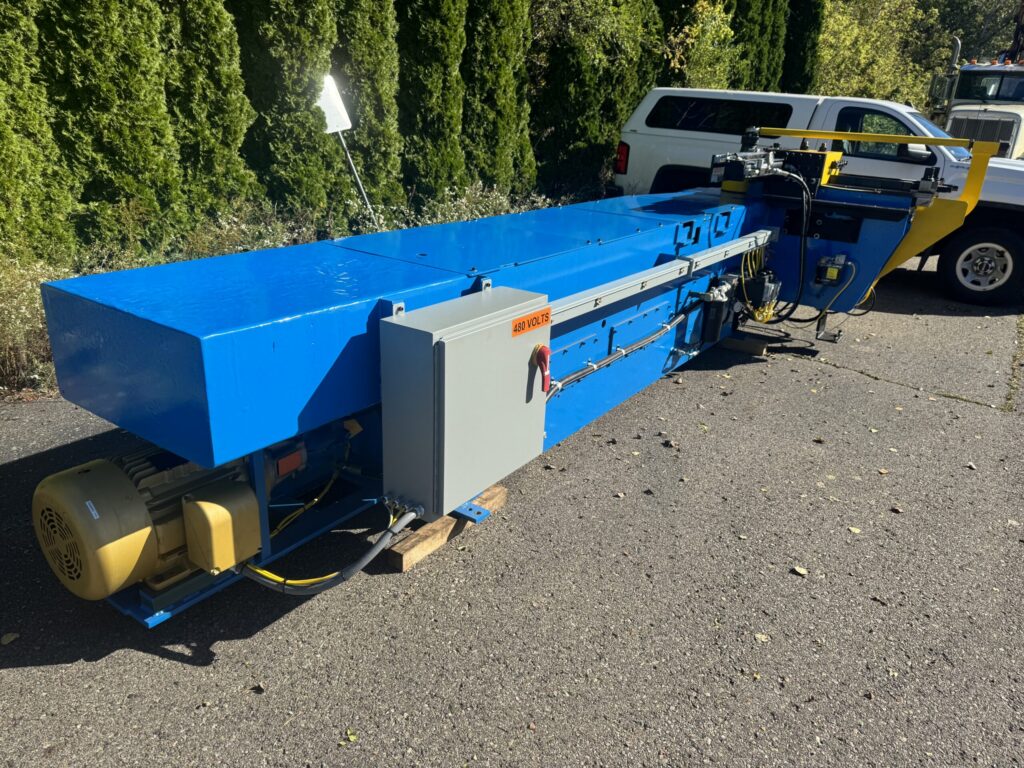

New disconnect box, fused disconnect switch, motor starter, transformer
New wireway, wiring, fittings, fuses
New proximity switches, mounting brackets & cords
New safety plate plunger switches
New bend overtravel lever switch
Additional Updates
- New rear sprocket pin & bushing

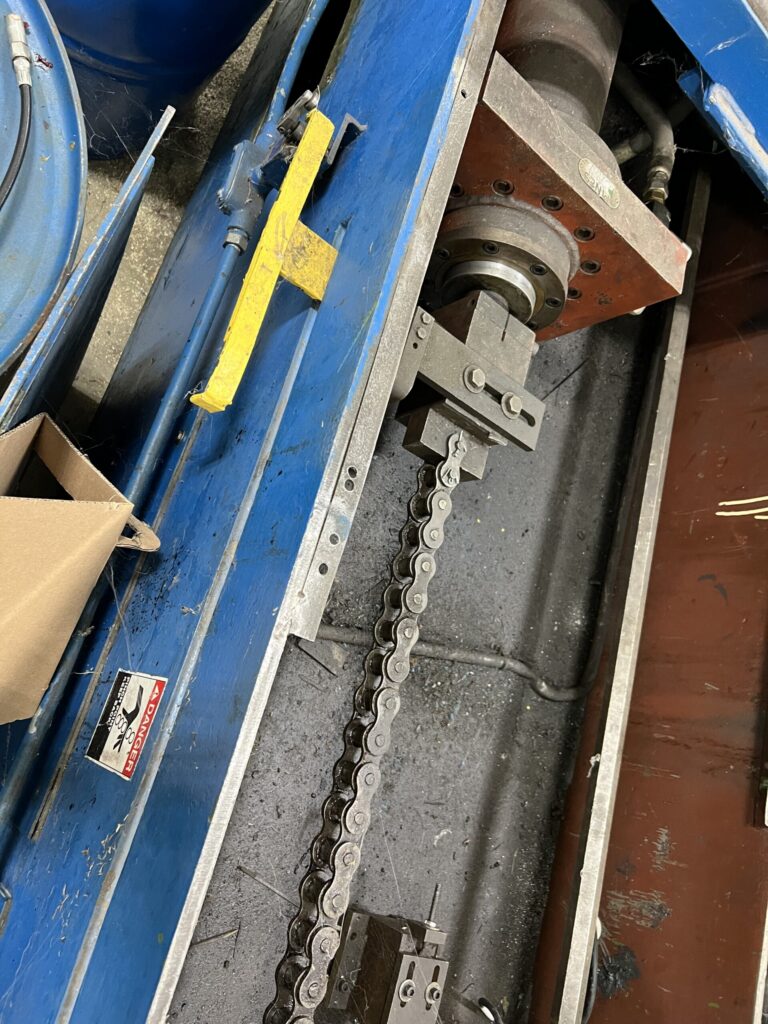

New front 200-2 & rear 120 bend chain and connecting links (sprockets inspected, quoted extra if needed)
New safety plate springs & fasteners
New Pressure Die Assist (PDA) — linear rail & bearing style, with new master bar assembly; existing booster assembly removed
New clamp die holder assembly
Overhead tie bar assembly removed
Machine cycled & tested — sample material and a set of tooling required from customer for run-off
