T-Drill TCC-25 Tube Cutting Machine
Used T-Drill TCC-25 chipless tube cutting machine (2010) with inline end-forming capability and no deburring step required.
Brand:
T-Drill
Model:
TCC-25
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

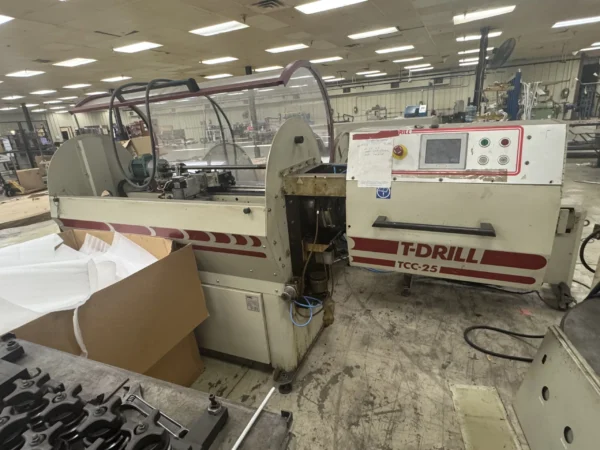

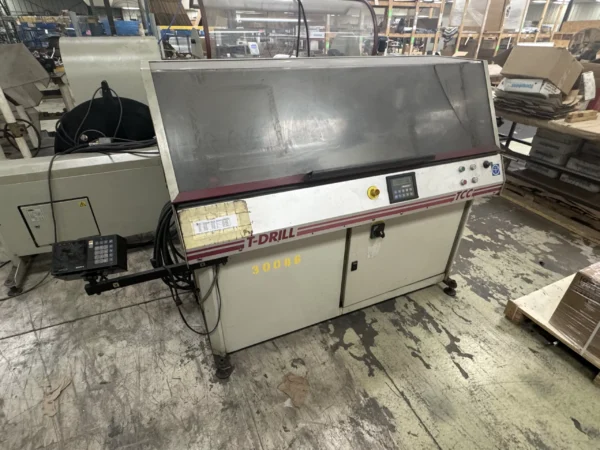

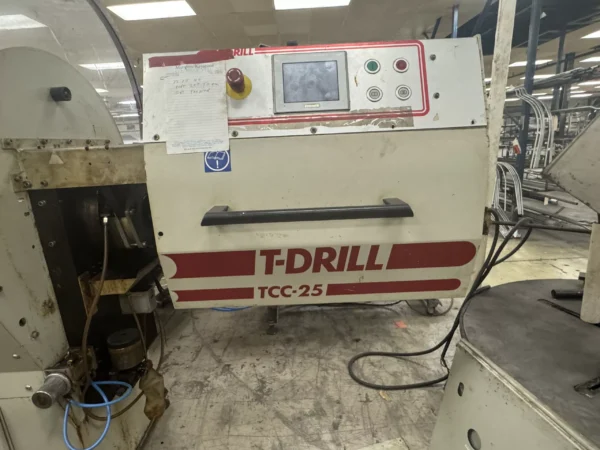

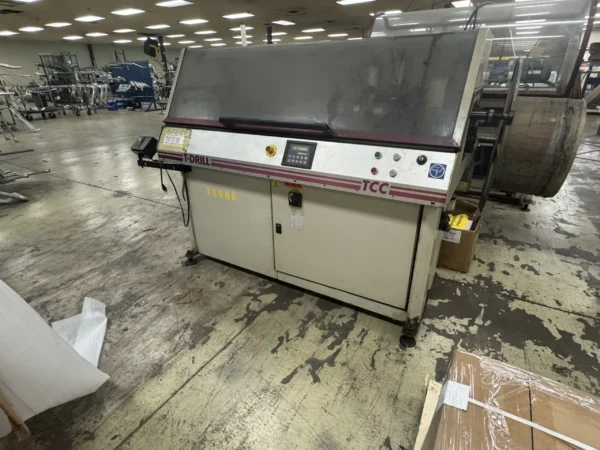

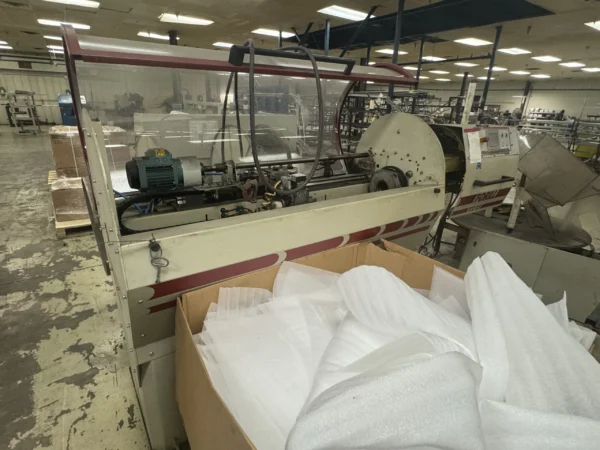

Used T-Drill TCC-25 Tube Cutting Machine
New in 2010
Chipless cutting technology
ADVANTAGES OF T-DRILL CHIPLESS CUTTING
- No expensive saw blades needed
- Longer blade life
- No material loss between cuts
- No chips – no need for deburring system
- No investment for chip handling system
- Biological lubrication – no need to wash before brazing
- Fast cycle time – ~3000 pieces / hour
- Cuts always exact 90° to the tube run
- Inline End Forming available after cutting (1–8 hits)
- Replaces the investment for one more production step
- Low operating noise level
- Waste minimizing and cut piece optimization systems
- Trusted: T-DRILL has more than 500 TCC machine references globally

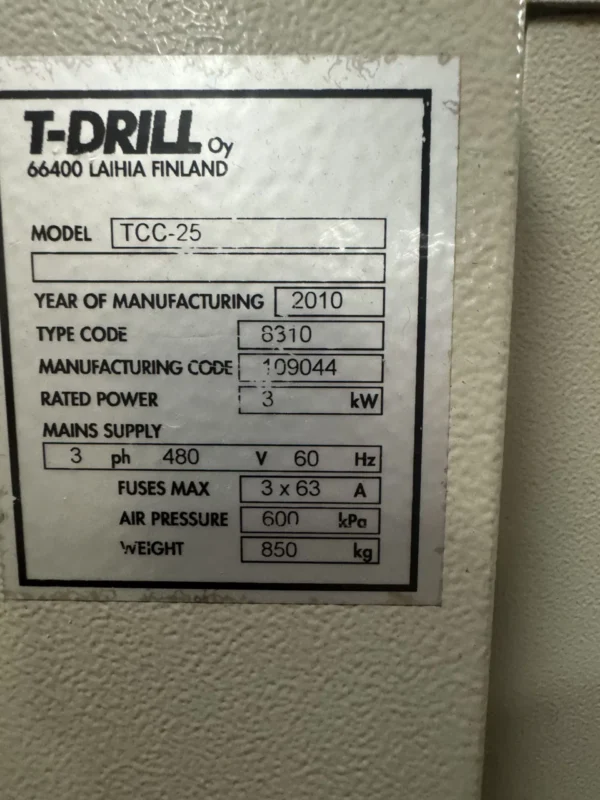

Model: TCC-25
Year: New in 2010 (per prior records)
Cutting Method: Chipless rotary tube cut-off
Cut Accuracy: Exact 90° to tube run
Production Rate: ~3,000 pieces/hour
Typical Capacity (TCC-25 platform): Small-diameter tube, generally up to approx. 1″ OD (varies by configuration)
Optional Feature: Inline end forming after cutting (1-8 hits)
