Proto-1 RAM-70 70-Ton Ram End Former with Tube Cut-Off – 2002
Used 2002 Proto-1 RAM-70, 70-ton, 7-position progressive ram end forming machine with tube cut-off. Handles tube and pipe from 0.125″ to 7.0″ OD, 0.020″ to 0.120″ wall. 20 HP, 240V 3-phase.
Brand:
Proto-1
Model:
RAM-70
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

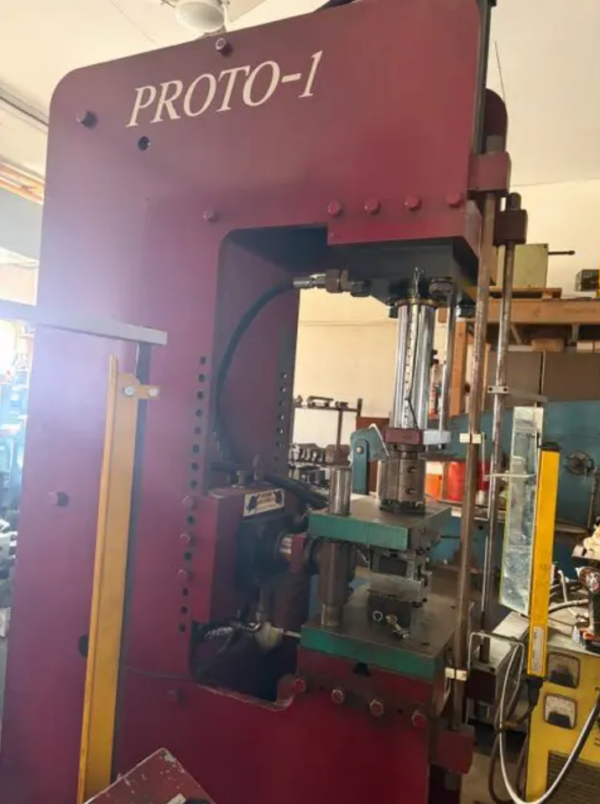

This used Proto-1 RAM-70 is a 70-ton, 7-position progressive ram end forming machine with integrated tube cut-off, built in 2002. It processes tube and pipe from 0.125″ to 7.0″ in diameter with wall thicknesses from 0.020″ to 0.120″.
The machine includes tube cut-off capability for parts after bending, producing burr-free cuts that reduce secondary finishing.
The RAM-70 supports a wide range of end form operations, including:
- Offset expanding and tube reducing
- Swaging, flaring, and beading (including large bead)
- Coping, notching, and slotting
- Piercing and hole punching
- Trim/form, bending, and spline forming

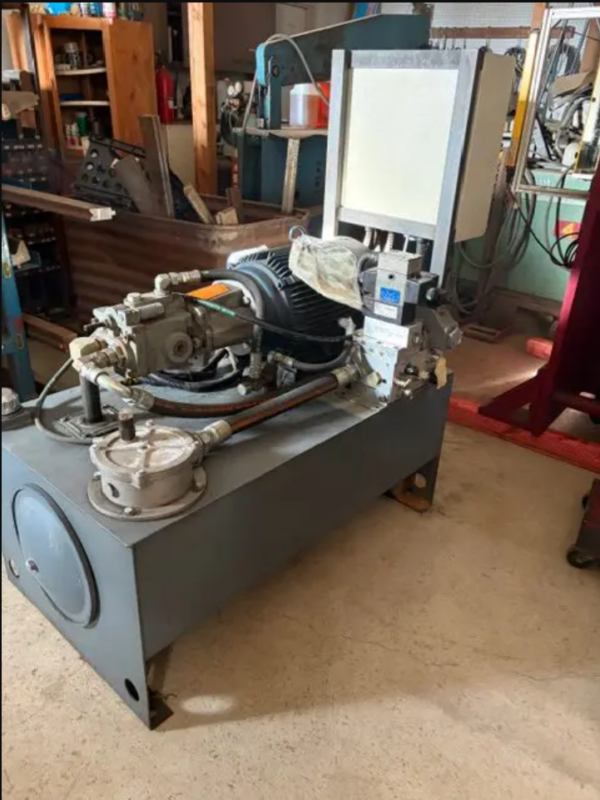

Clamping and forming are driven by separate 70-ton hydraulic cylinders: a vertical clamp cylinder (8″ bore, 18″ stroke) and a horizontal ram cylinder (8″ bore, 14″ stroke). Operator safety is provided by Minisafe light curtains. Cycle time depends on tooling and material.
Contact us for availability, tooling details, and inspection.
| Spec | Value |
|---|---|
| Manufacturer | Proto-1 |
| Model | RAM-70 |
| Year | 2002 |
| Machine type | Progressive ram end former with tube cut-off |
| Forming positions | 7 |
| Capacity | 70 ton |
| Tube diameter | 0.125″ – 7.0″ |
| Wall thickness | 0.020″ – 0.120″ |
| Clamp cylinder | 70 ton vertical, 8″ bore, 18″ stroke |
| Ram cylinder | 70 ton horizontal, 8″ bore, 14″ stroke |
| Cycle time | Depends on tooling and material |
| Motor | 20 HP |
| Power | 240V, 3-phase |
| Safety | Minisafe light curtains |
| Dimensions (L x W x H) | 138.9″ x 96.6″ x 114.1″ |
| Condition | Used |
