Pines #4 Hydraulic Tube Bender – 1974

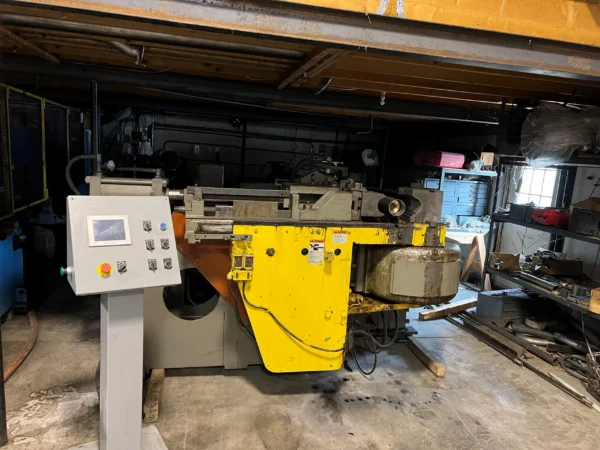

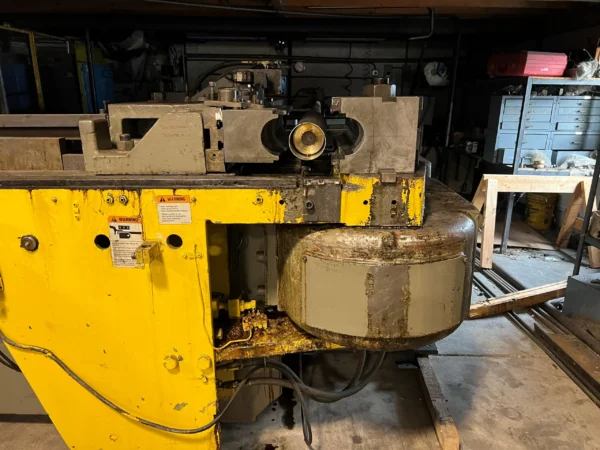

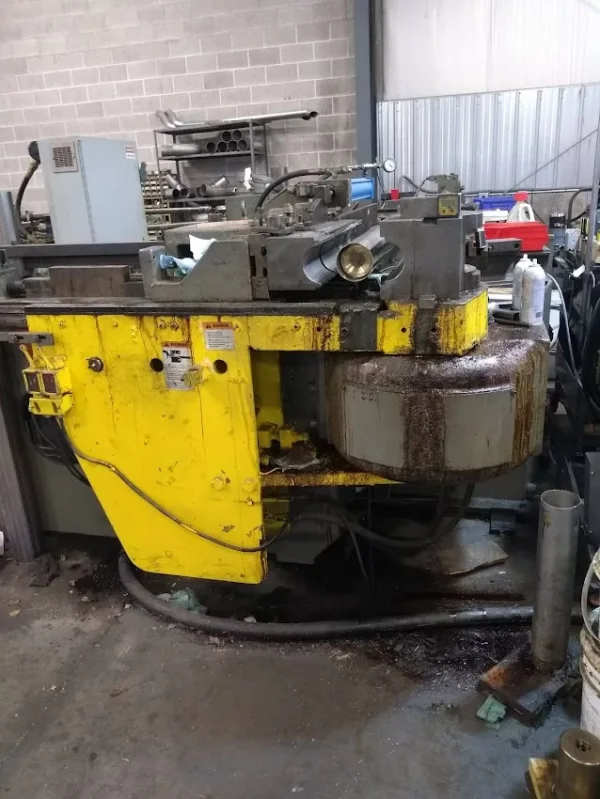

Used 1974 Pines #4 hydraulic rotary draw tube bender with UTE digital control, LH rotation, pressure die assist and hydraulic mandrel extractor. Set up for 4″ OD x 4.5″ CLR; under power for viewing.
Brand:
Pines
Model:
#4
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!
The Pines #4 is one of the largest machines in Pines’ hydraulic rotary draw line, built for heavy-wall, large-diameter tube and pipe. The platform is rated for mild steel tube up to 6″ OD and pipe up to 4″ Schedule 80, with bends to 180° plus springback.
This 1974 unit (S/N 11490-74232) has left-hand (counterclockwise) rotation and is equipped with:

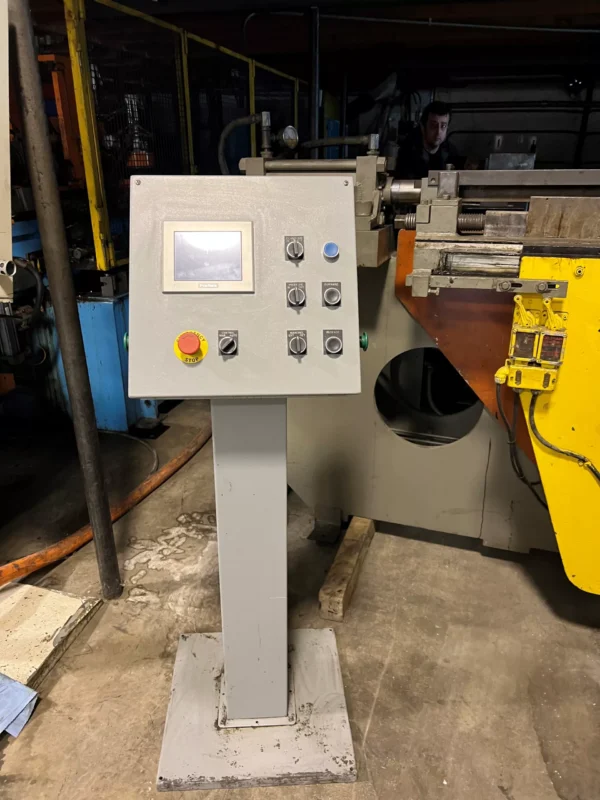

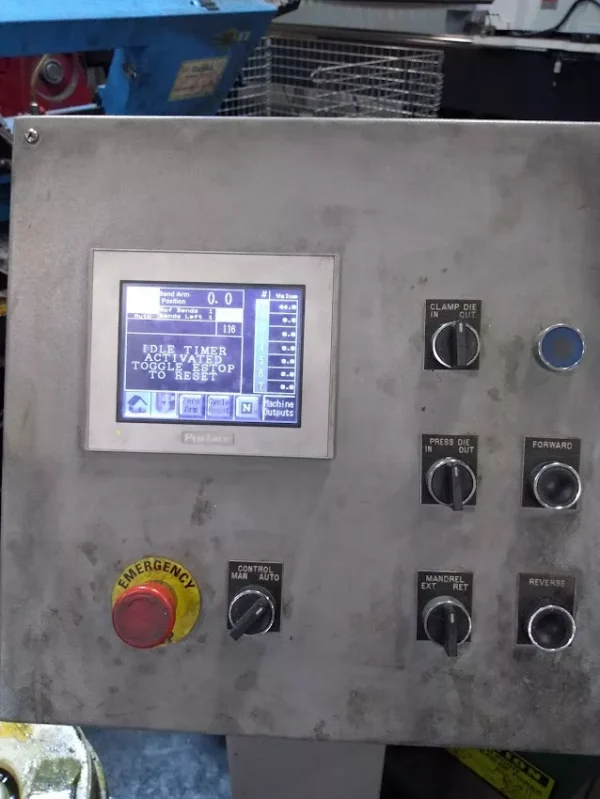

- UTE digital controller
- Pressure die assist
- Direct-acting pressure die

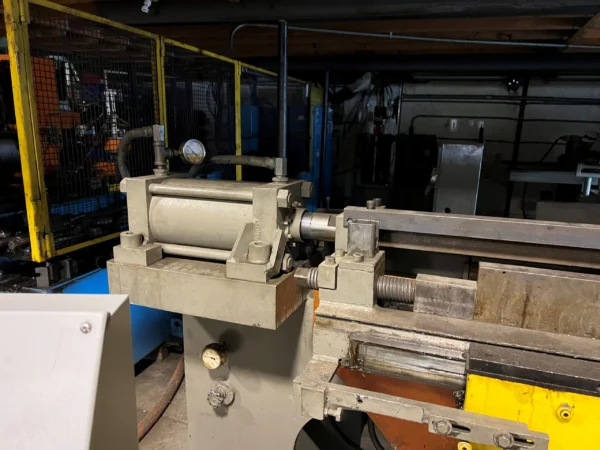

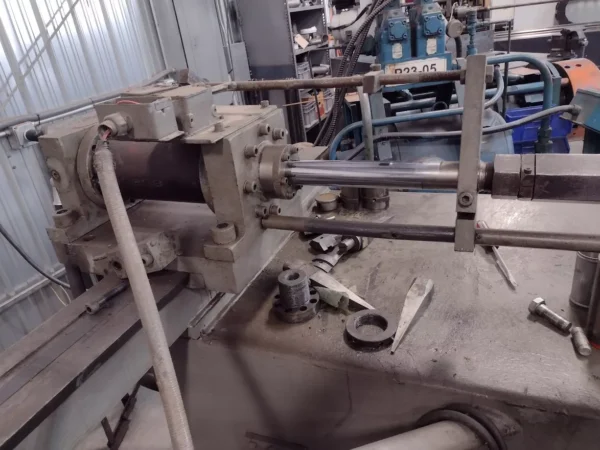

- Hydraulic mandrel extractor

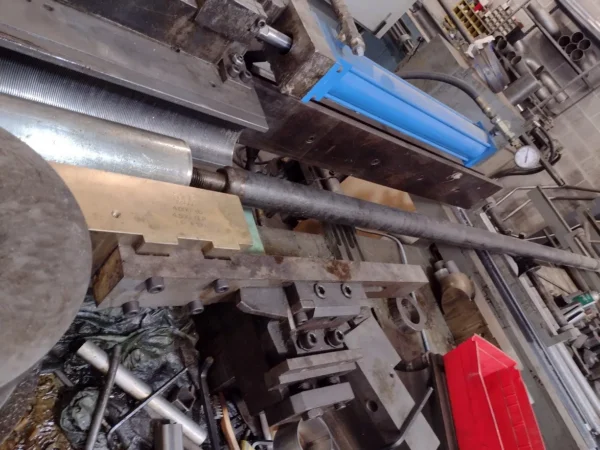

- Wiper die holder assembly
It is currently set up for 4″ OD x 4.5″ CLR and can be seen under power. The machine can ship in approximately 30 days, with loading at no extra cost. Contact us for a quote.
| Specification | Value |
|---|---|
| Manufacturer | Pines |
| Model | #4 |
| Year | 1974 |
| Serial number | 11490-74232 |
| Bend type | Hydraulic rotary draw |
| Mild steel tube (platform) | 6″ OD × .165″ wall |
| Pipe (platform) | 4″ Sch. 80 |
| Max bend angle | 180° + springback |
| Rotation | LH (counterclockwise) |
| Control | UTE digital controller |
| Pressure die | Direct acting, with pressure die assist |
| Mandrel extractor | Hydraulic |
| Wiper die holder | Yes |

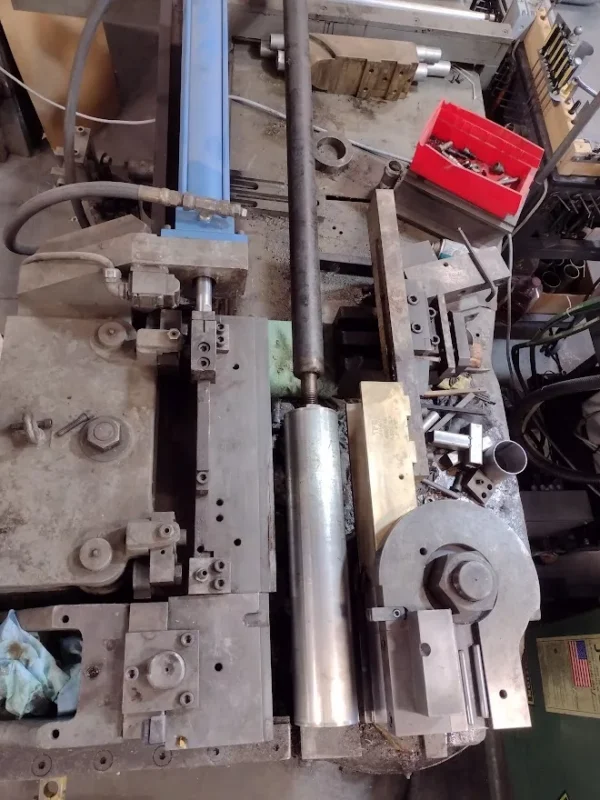

| Current setup | 4″ OD x 4.5″ CLR |
| Condition | Under power for viewing |
| Shipping | Approx. 30 days; loading at no extra cost |
