Pines 106 CNC Tube Bender Refurbished
Refurbished Pines 106 CNC tube bender with a new Sierra Corp CNC control and new drives/motor, built for small-diameter coax cable and tube bending.
Brand:
Pines
Model:
106
Condition:
Refurbished
Not sure what Machine, Parts, or Tooling you need? We can help!

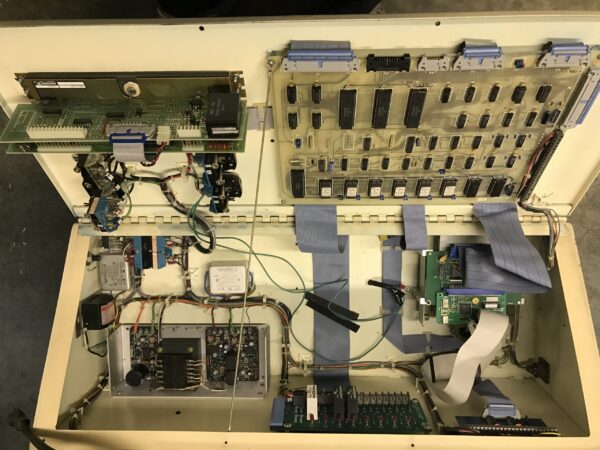

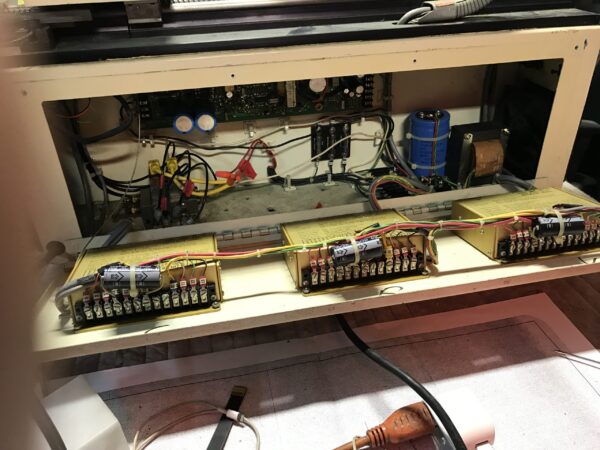

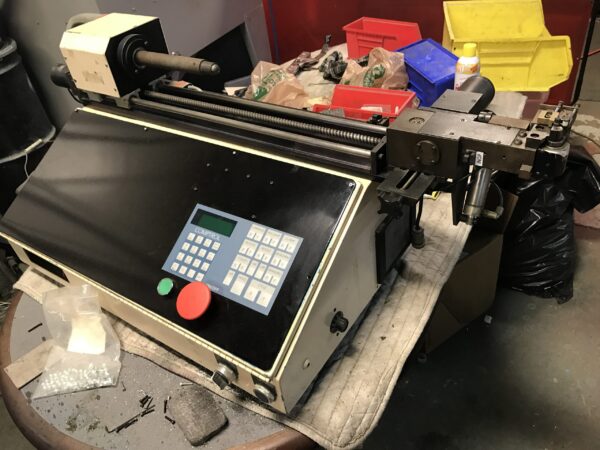

This Pines 106 CNC tube bender (CNC 010 platform) is being refurbished with a new Sierra Corp. CNC control and new drives and motor. The upgrade is in progress. It is built for small-diameter semi-rigid coaxial cable and tube.
- Capacity: .141″ OD semi-rigid coax standard; .250″ OD with the optional heavy-duty head
- Clockwise and counterclockwise rotation
- Hitch feed and open-collet bending; unlimited part length
- Automatic, semi-automatic and manual modes

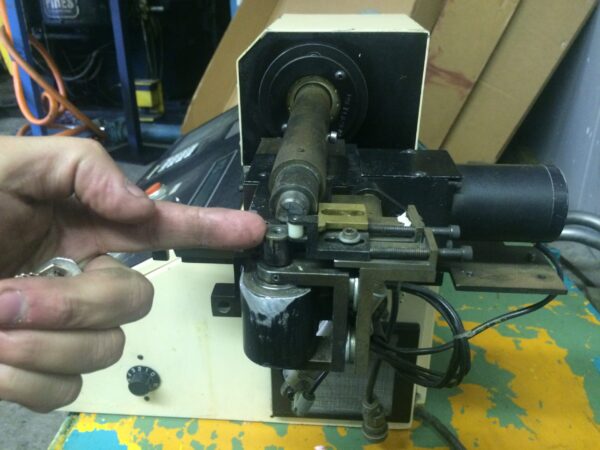

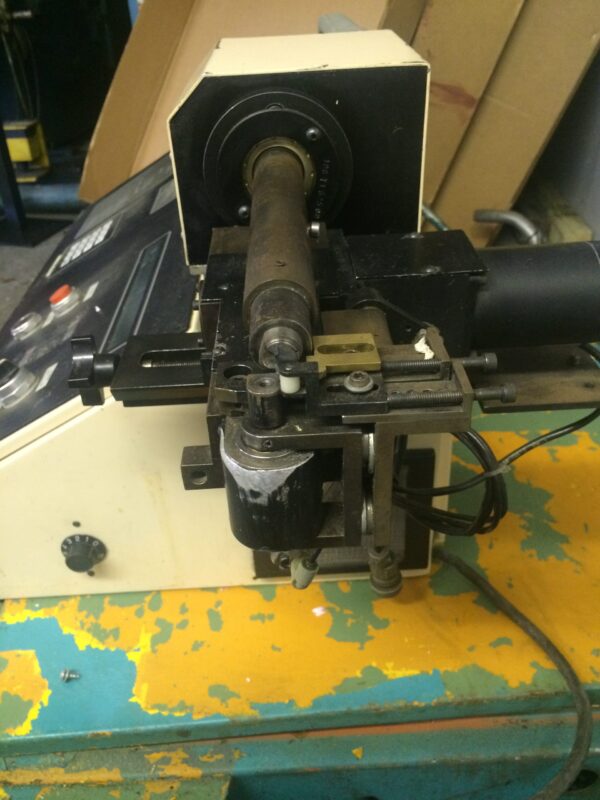

- Servo-controlled swing arm; roller and clamp die holders
- Max. standard radius 1.125″; min. radius 1.5D (1D possible)
- Max. bend angle 195°
- Repeatability: bend arm ±0.1°, carriage ±0.005″
- Travel: B axis 360°, Y axis 24″
- Tabletop; 120V 1-phase, 10 A; air 70–90 PSI
Contact us for the status of the upgrade and a quote.

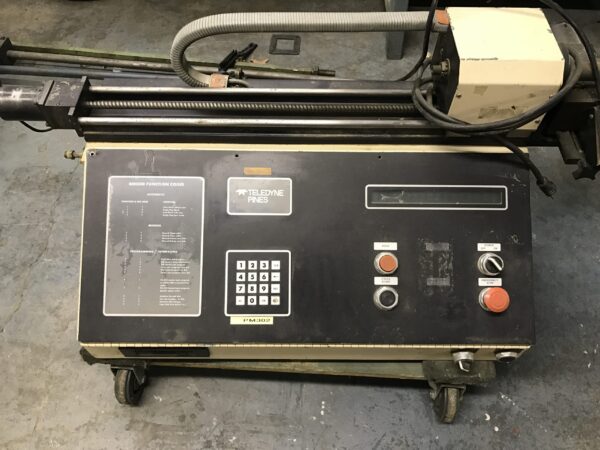

Model: Pines 106 (CNC 010 platform)

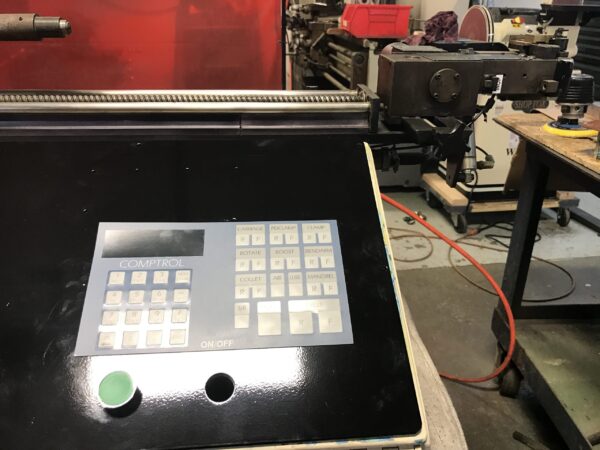

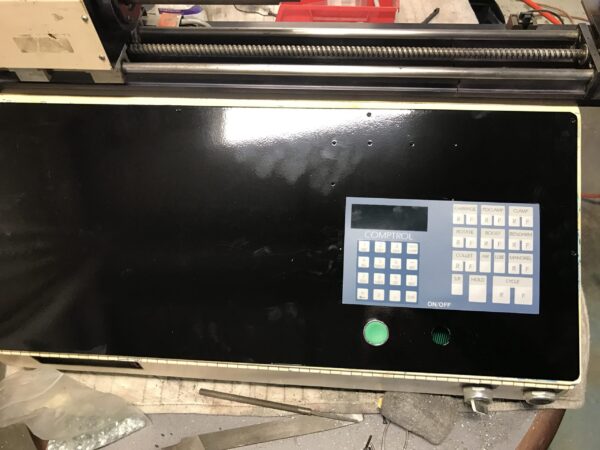

Control: Sierra Corp. CNC Control (new)
Capacity: .141″ OD semi-rigid coax cable standard; .250″ OD with optional heavy-duty head
Max Standard Radius: 1.125″
Min Radius:Diameter Ratio: 1.5D (1D possible)
Max Bend Angle: 195°
Bend Arm Repeatability: +/-0.1°
Carriage Repeatability: +/-0.005″
B-Axis Travel: 360°
Y-Axis Travel: 24″
Electrical: 120V, 1-phase, 60Hz, 10A
Pneumatic: 70-90 PSI
Mounting: Tabletop
