Peddinghaus HSFDB-2500/B 96″ x 480″ CNC Plate Processing System – 2014
Used 2014 Peddinghaus HSFDB-2500/B CNC plate processor in very good condition. Drills, mills, taps, plasma and oxy-fuel cuts heavy plate over a 96″ x 480″ envelope. Tool changer removed; tools load manually.
Brand:
Peddinghaus
Model:
HSFDB-2500/B
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

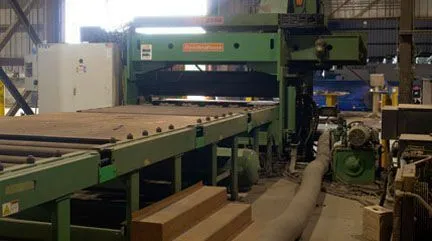

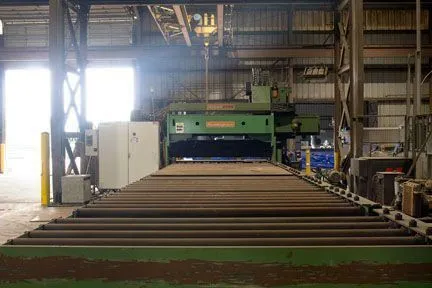

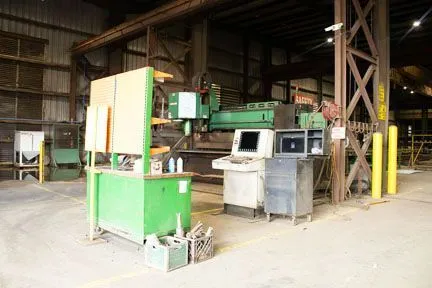

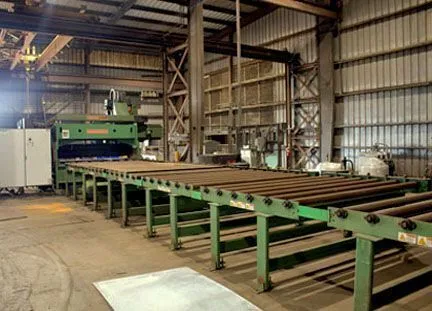

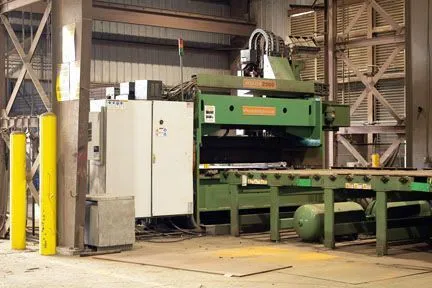

This 2014 Peddinghaus HSFDB-2500/B is a CNC plate processing system for structural steel fabrication. It combines high-speed drilling, milling, tapping, countersinking, plasma cutting and oxy-fuel cutting of heavy plate in one machine, with automated material handling across a 96″ x 480″ envelope. It is listed in very good condition.

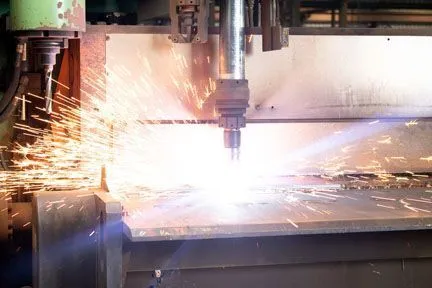

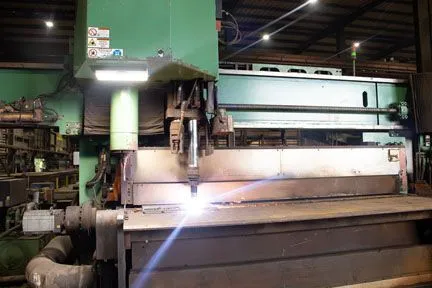

The 48 HP CAT 50 spindle runs to 2,250 RPM and drills plate from 0.25″ to 3″. Plasma cutting is handled by a Hypertherm HPR400XD, rated from 0.25″ to 2-1/2″, with an oxy-fuel system for heavier sections. A SignoScript carbide scribing system marks parts.

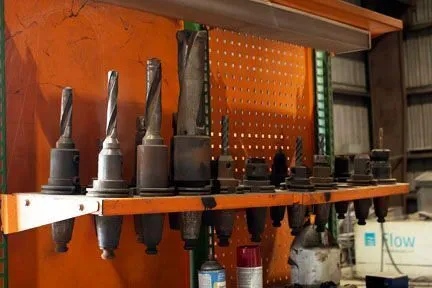

Note: the machine’s 8-station tool changer has been removed. Tooling must be loaded manually.
Equipped With
- High-speed carbide drilling
- Hypertherm HPR400XD plasma cutting system
- Oxy-fuel cutting system
- Automatic tool-length measurement
- SignoScript carbide scribing system
- Clamping system

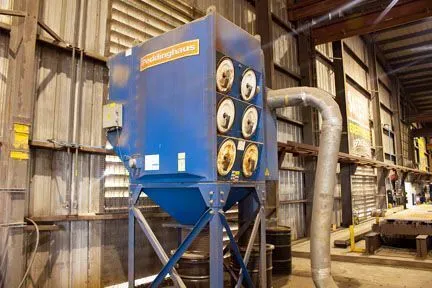

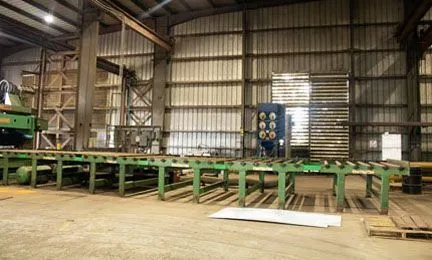

- Dust collector

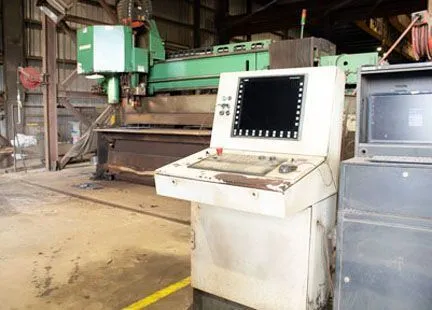

- Peddinghaus control
- Milling capability
- Minimum quantity lubrication (MQL)
- Through-tool lubrication system
| Specification | Value |
|---|---|
| Manufacturer | Peddinghaus |
| Model | HSFDB-2500/B |
| Year | 2014 |
| Machine type | CNC plate processing system |
| Processing envelope | 96″ x 480″ |
| Spindle | 48 HP, CAT 50, up to 2,250 RPM |
| Drilling range | 0.25″–3″ plate |
| Plasma | Hypertherm HPR400XD, 0.25″–2-1/2″ |
| Oxy-fuel | Yes |
| Operations | Drilling, milling, tapping, countersinking, plasma and oxy-fuel cutting |
| Marking | SignoScript carbide scribing |
| Lubrication | MQL and through-tool |
| Other | Automatic tool-length measurement; clamping system; dust collector |
| Control | Peddinghaus |
| Tool changer | 8-station changer removed; tools load manually |
| Condition | Very good |
