OMAX 60120 5′ x 10′ Precision Abrasive Waterjet – 2016
Used 2016 OMAX 60120 abrasive waterjet in very good condition. 62″ x 126″ cutting capacity, 50 HP / 60,000 PSI EnduroMax VFD pump, linear drive and programmable Z-axis.
Brand:
OMAX
Model:
60120
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!

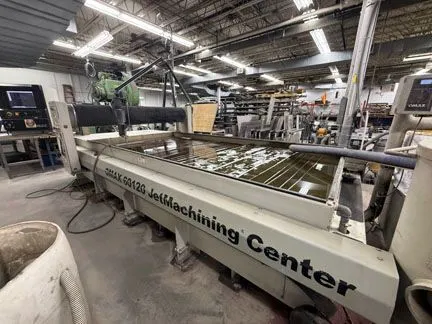

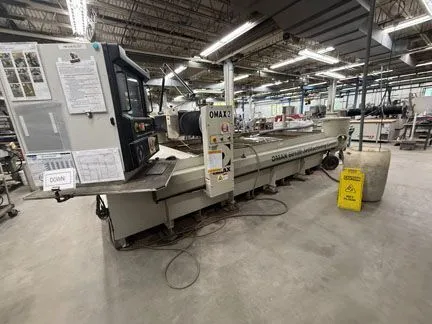

This 2016 OMAX 60120 is a 5′ x 10′ class precision abrasive waterjet with a 62″ x 126″ cutting capacity on a 77″ x 144″ table rated at 400 lbs/sq ft. A carriage parking area allows loading from the front, side or top of the table. It is listed in very good condition.

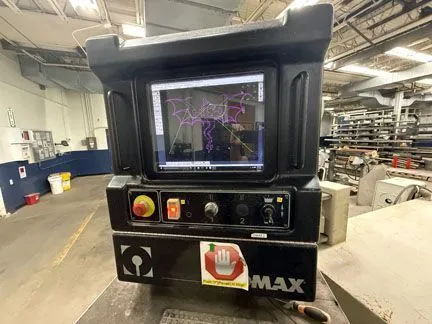

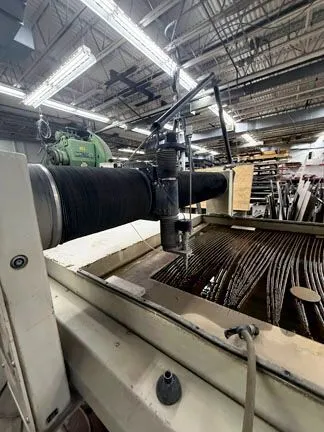

The closed-loop vector linear drive uses electronic gearing and linear scale feedback at 1 micron (0.000039″) resolution, with a motorized, programmable Z-axis. The PC-based Windows control runs OMAX Intelli-MAX CAD/CAM software with a drawing library, support for 50+ file types and heads-up traverse; no G or M code is required.

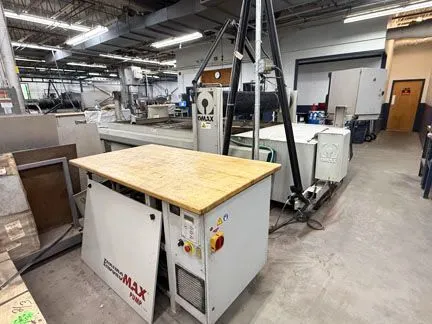

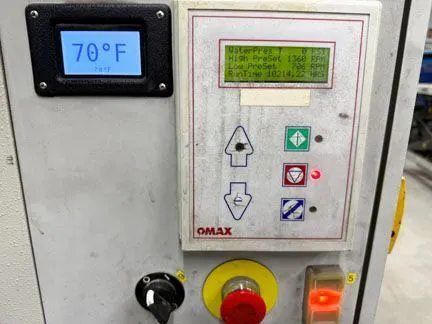

The OMAX EnduroMax 5060V variable frequency drive pump runs from 0 to 60,000 PSI at 50 HP, with a rated 1,000 hours between rebuilds and a 15-minute rebuild time.
Equipped With
- OMAX EnduroMax 5060V VFD pump
- Programmable Z-axis
- OMAX Intelli-MAX CAD/CAM control and software
- PC-based control
- 600 lb abrasive hopper
- Water level control
- OMAX Intelli-TRAX drive system
| Specification | Value |
|---|---|
| Manufacturer | OMAX |
| Model | 60120 |
| Year | 2016 |
| Machine type | Abrasive waterjet |
| Cutting capacity | 62″ x 126″ |
| Table size | 77″ x 144″, rated 400 lbs/sq ft |
| Pump | OMAX EnduroMax 5060V VFD, 50 HP, 0–60,000 PSI |
| Drive | Intelli-TRAX closed-loop vector linear drive, 1 micron feedback |
| Z-axis | Motorized, programmable |
| Control | PC-based (Windows), OMAX Intelli-MAX CAD/CAM |
| Abrasive hopper | 600 lb |
| Other | Water level control |
| Condition | Very good |
