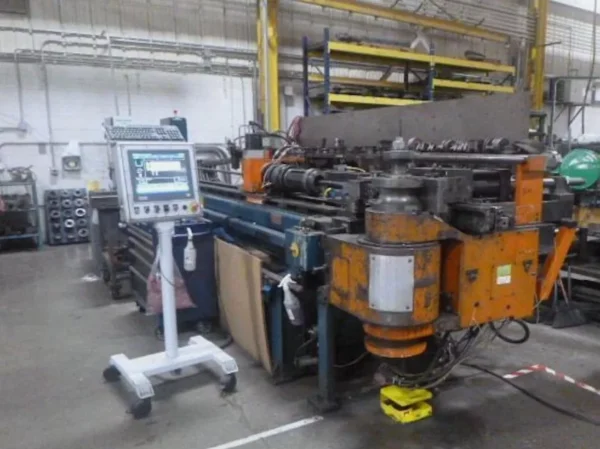

Eaton Leonard VB400 CNC Hydraulic Tube Bender with Bend Pro Control
Used Eaton Leonard VB400 CNC hydraulic tube bender with Bend Pro control (retrofit by Current Tech in 2015), RH rotation, hydraulic mandrel extractor and pressure die assist. Running well when removed.
Brand:
Eaton Leonard
Model:
VB400
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!
The Eaton Leonard VB400 is a CNC hydraulic rotary draw tube bender from Eaton Leonard’s VB series. Eaton Leonard machines are widely used in production tube bending and are valued for rigid construction and repeatable bend quality.
This unit’s controls were retrofitted in 2015 by Current Tech with a Bend Pro control, and it was running well when it was removed from operation. It has right-hand (clockwise) rotation and is equipped with:
- Hydraulic mandrel extractor
- Pressure die assist
- Overhead tie bar
- Drop-away swing arm slide
Contact us for capacity details, tooling availability and a quote.
| Specification | Value |
|---|---|
| Manufacturer | Eaton Leonard |
| Model | VB400 |
| Bend type | CNC hydraulic rotary draw |
| Control | Bend Pro (Current Tech retrofit, 2015) |
| Rotation | RH (clockwise) |
| Mandrel extractor | Hydraulic |
| Pressure die assist | Yes |
| Overhead tie bar | Yes |
| Swing arm | Drop-away slide |
| Condition | Running well when removed from operation |
