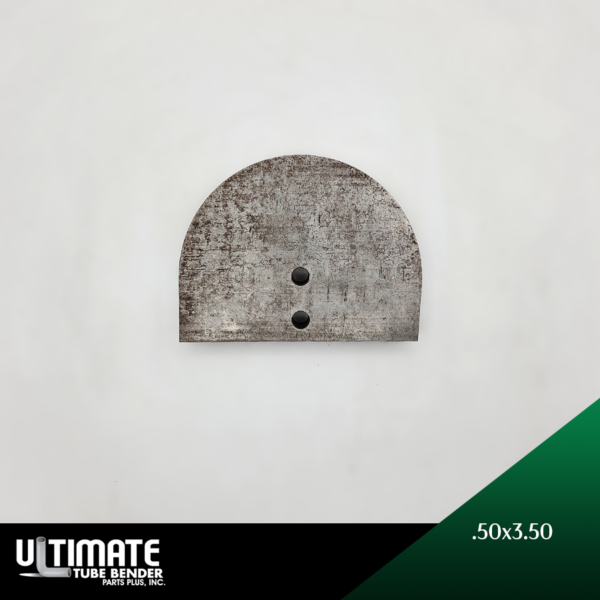

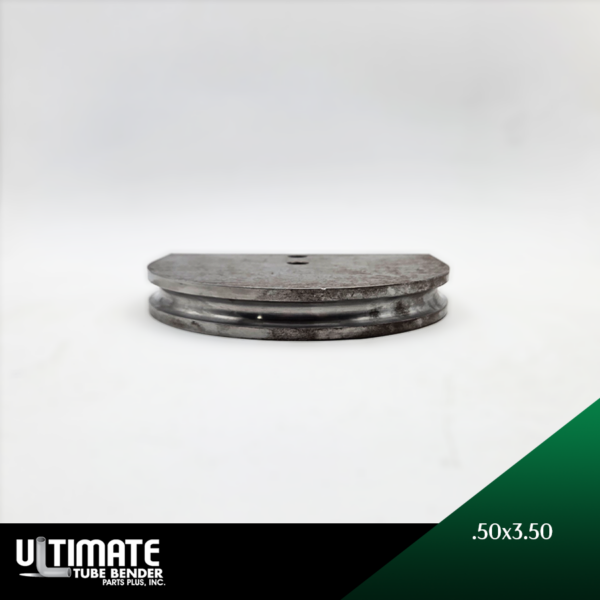

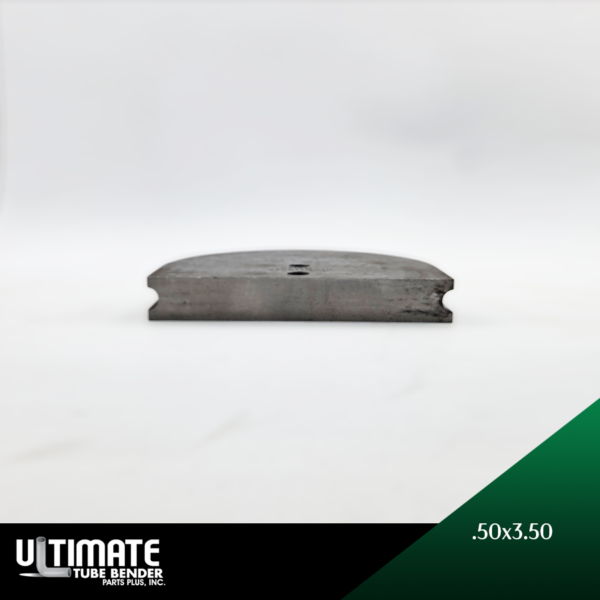

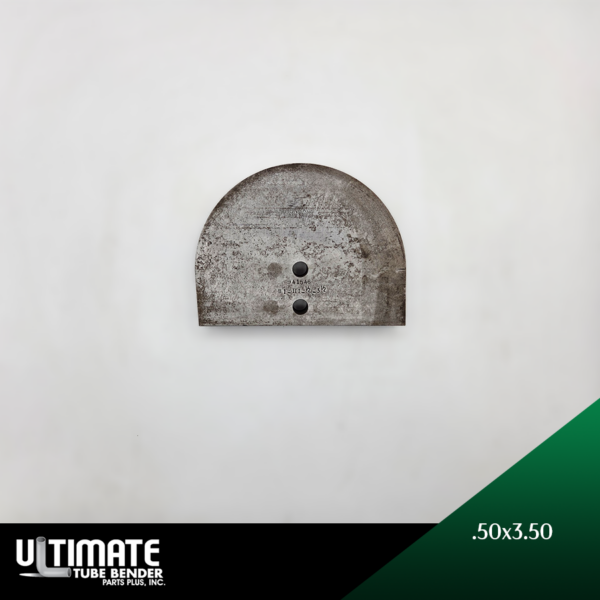

Bend Die | 0.5 TOD x 3.5 CLR
Rotary draw bend die for 1/2″ (0.5″ decimal) OD tube at a 3-1/2″ (3.5″ decimal) centerline radius, 1″ tooling height in low carbon steel.
2 in stock
Brand:
Various
Model:
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Bend Die Type: B1
Tube Outside Diameter (TOD) – Fractional Inches: 1/2
Tube Outside Diameter (TOD) – Decimal Inches: 0.5
Center Line Radius CLR – Bend Radius: 3-1/2
Center Line Radius CLR – Bend Radius decimal: 3.5
Tooling Height: 1″
Handedness: Right Handed / Left Handed
Material: Low carbon steel
