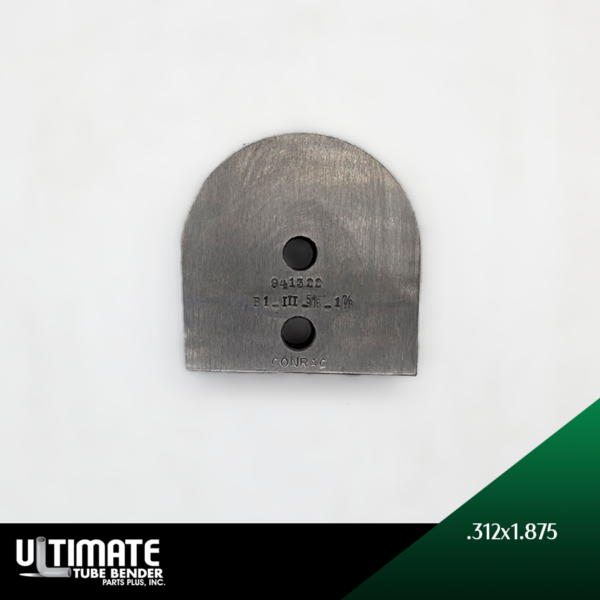

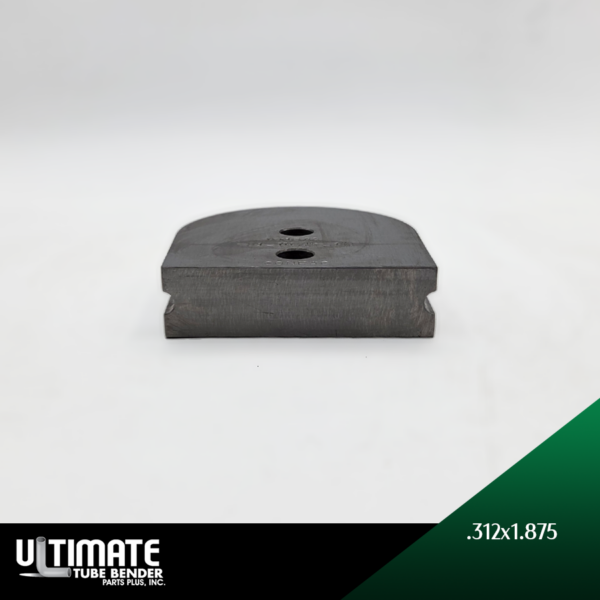

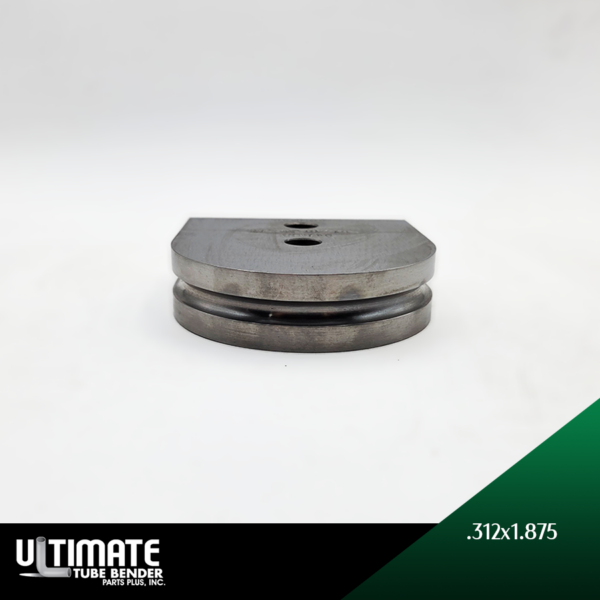

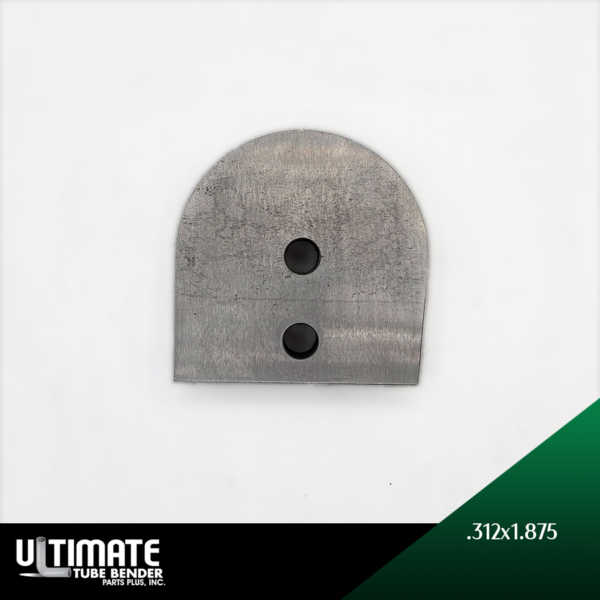

Bend Die | 0.3125 TOD x 1.875 CLR
Rotary draw bend die for 5/16″ (0.3125″ decimal) OD tube at a 1-7/8″ (1.875″ decimal) centerline radius, 1″ tooling height in low carbon steel.
2 in stock
Brand:
Various
Model:
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Bend Die Type: B1
Tube Outside Diameter (TOD) – Fractional Inches: 5/16
Tube Outside Diameter (TOD) – Decimal Inches: 0.3125
Center Line Radius CLR – Bend Radius: 1-7/8
Center Line Radius CLR – Bend Radius decimal: 1.875
Tooling Height: 1″
Handedness: Right Handed / Left Handed
Material: Low carbon steel
