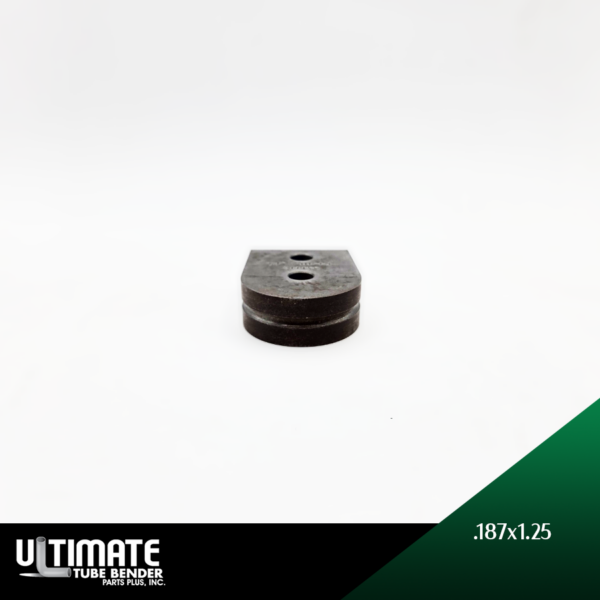

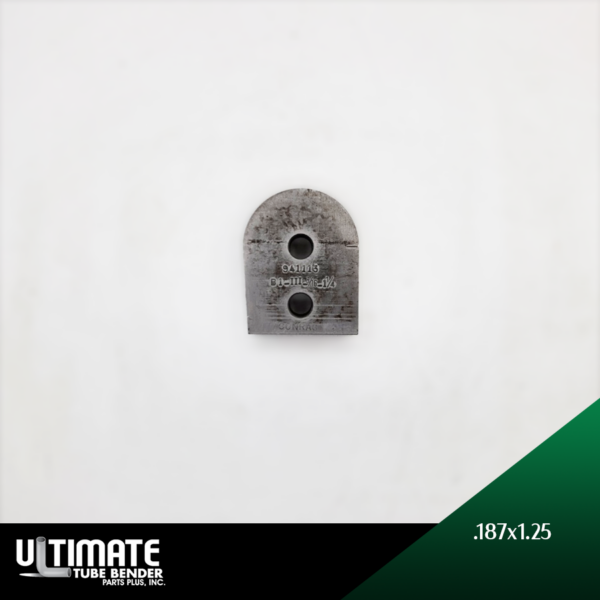

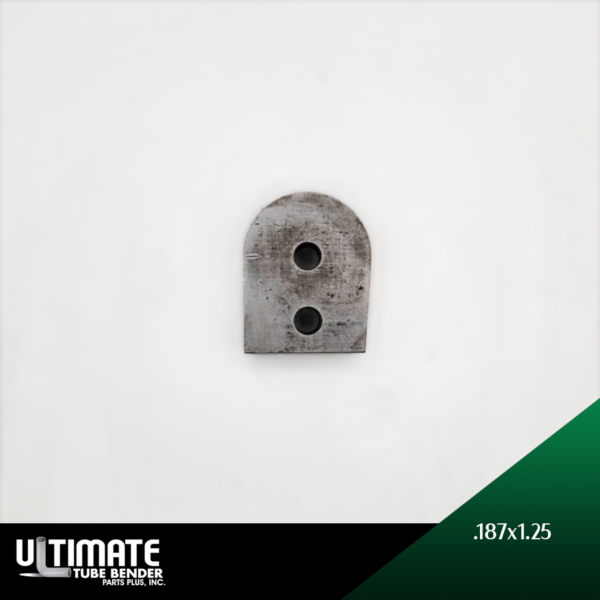

Bend Die | 0.1875 TOD x 1.25 CLR
Bend die sized to 3/16″ (0.1875″ decimal) tube on a 1-1/4″ (1.25″ decimal) centerline radius, 1″ tall, built for repeatable tube bending setups.
2 in stock
Brand:
Various
Model:
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Bend Die Type: B1
Tube Outside Diameter (TOD) – Fractional Inches: 3/16
Tube Outside Diameter (TOD) – Decimal Inches: 0.1875
Center Line Radius CLR – Bend Radius: 1-1/4
Center Line Radius CLR – Bend Radius decimal: 1.25
Tooling Height: 1″
Handedness: Right Handed / Left Handed
Material: Low carbon steel
