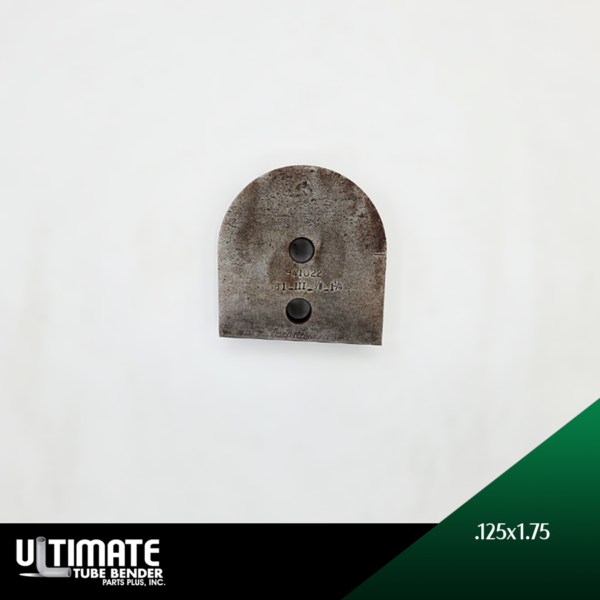

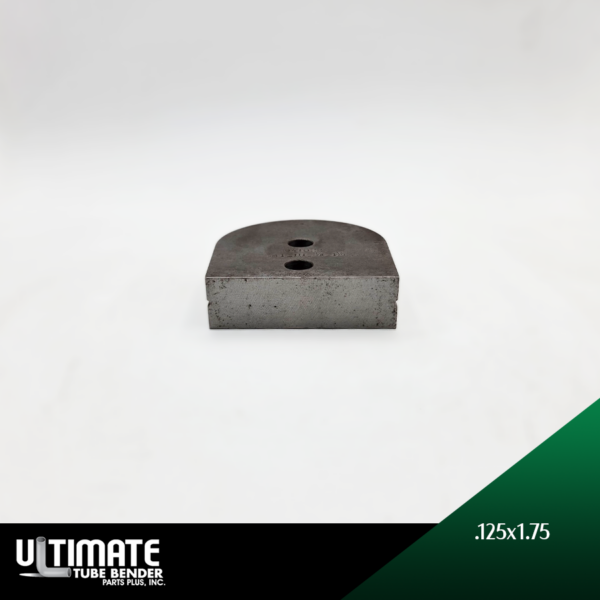

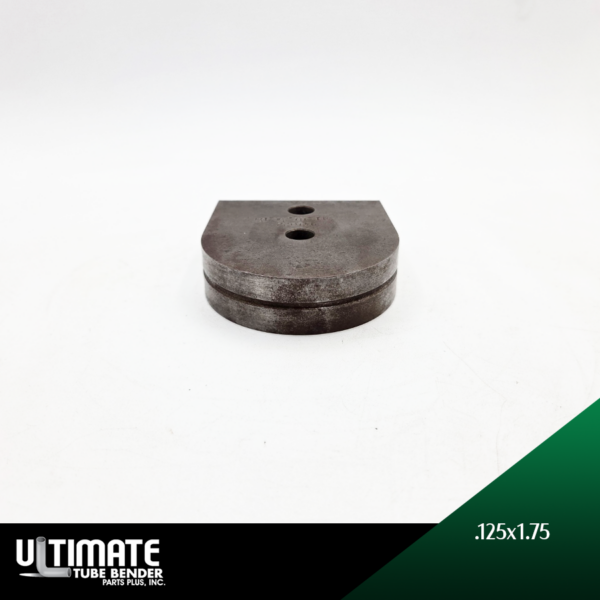

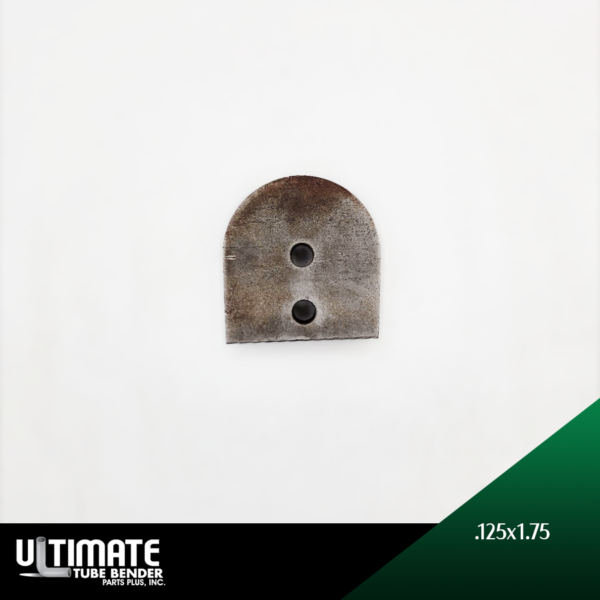

Bend Die | 0.125 TOD x 1.75 CLR
Rotary draw bend die for 1/8″ (0.125″ decimal) OD tube at a 1-3/4″ (1.75″ decimal) centerline radius, 1″ tooling height in low carbon steel.
2 in stock
Brand:
Various
Model:
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Bend Die Type: B1
Tube Outside Diameter (TOD) – Fractional Inches: 1/8
Tube Outside Diameter (TOD) – Decimal Inches: 0.125
Center Line Radius CLR – Bend Radius: 1-3/4
Center Line Radius CLR – Bend Radius decimal: 1.75
Tooling Height: 1″
Center Line Height – Tube Groove: 0.5″
Handedness: Right Handed / Left Handed
Material: Low carbon steel
