Alpine LS150-4C 4-Axis Fiber Laser Tube Cutter
The Alpine LS150-4 tube laser is a 4-axis fiber laser tube cutting machine for 0.79″ to 5.91″ OD round, square, rectangular, elliptical, and flat-oval tube. 1,000W to 2,000W fiber laser, ±0.0012″ repeatability, and 1.77″ minimum end waste.
Brand:
Alpine
Model:
LS150-4C Fiber Laser
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!

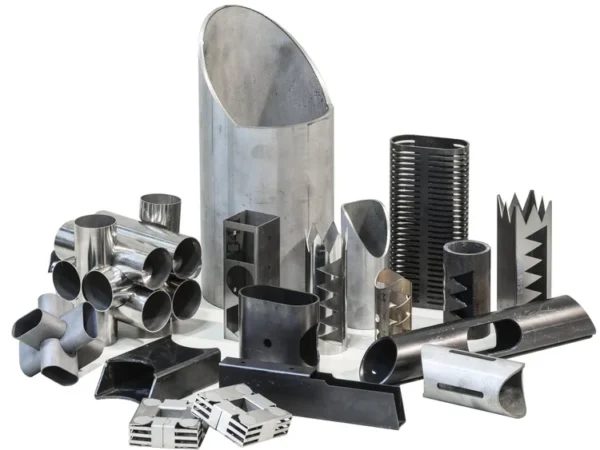

The Alpine LS150-4 tube laser is a 4-axis fiber laser tube cutting machine for tube from 20 to 150 mm (0.79″ to 5.91″) OD, in round, square, rectangular, elliptical, and flat-oval profiles. It’s available with a 1,000W, 1,500W, or 2,000W fiber laser.

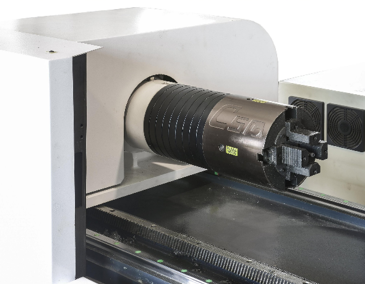

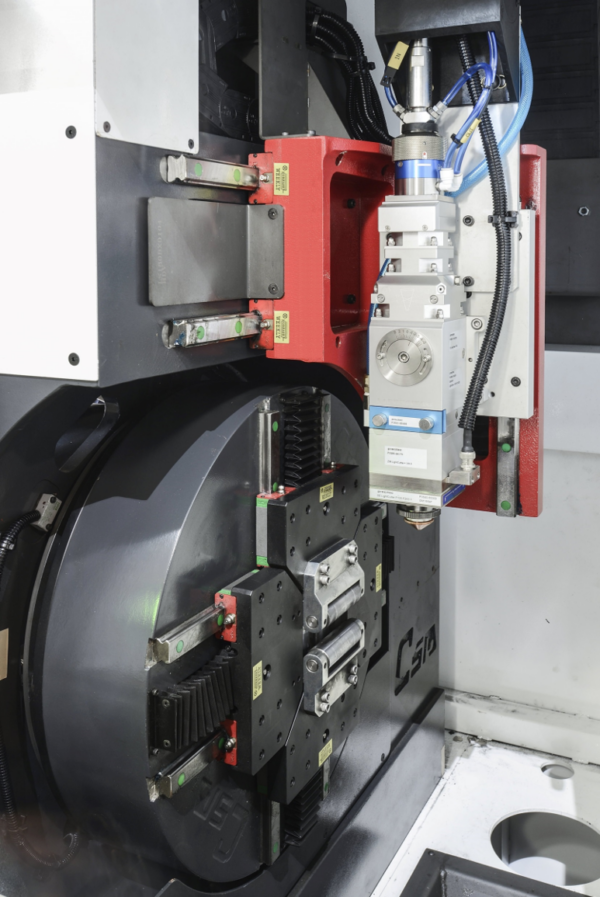

The self-calibrating laser head runs on servo-driven axes at up to 500 mm/s. A patented, servo-rotated front chuck clamps pneumatically and fits multiple tube profiles. The servo carriage feeds at up to 777 mm/s over 6,700 mm of travel and carries a patented rear chuck, which brings minimum end waste down to 45 mm (1.77″).
The tube loader supports job scheduling and handles mixed shapes and sizes. A customizable unloader takes finished parts across a range of profiles and diameters. A pneumatic safety barrier guards the cutting area and still allows easy maintenance access. Positioning repeatability is ±0.03 mm (±0.0012″).
Contact us for pricing and lead time.
| Specification | mm | inches |
|---|---|---|
| Cutting Capacity/OD | 18~ 150 | 0.71" ~6.0" |
| Standard raw tube loading length | 6300 | 248.03" |
| Min rear end waste | 45 | 1.77" |
| X-axis working distance | 200 | 7.87" |
| X-axis speed | 500/sec | 19.69"/sec |
| Z-axis working distance | 110 | 4.33" |
| Z-axis speed | 500/sec | 19.69"/sec |
| Y-axis working distance | 6900 | 271.65" |
| Y-axis speed | 778/sec | 30.63"/sec |
| Position repeatability | ±0.03 | ±0.0012" |
| B-axis speed | 450 degrees/sec | 450 degrees/sec |
| B-axis positioning repeatability | ±8 arcmin | ±8 archmin |
| Laser head | Precitec | Precitec |
| Laser source | IPG/Raycus | IPG/Raycus |
| Machine size | 11200 x 1800 x 2100 | 440.94" x 70.87" x 82.68" |
| Machine weight | 5800 kg | 2363.63 lbs |
