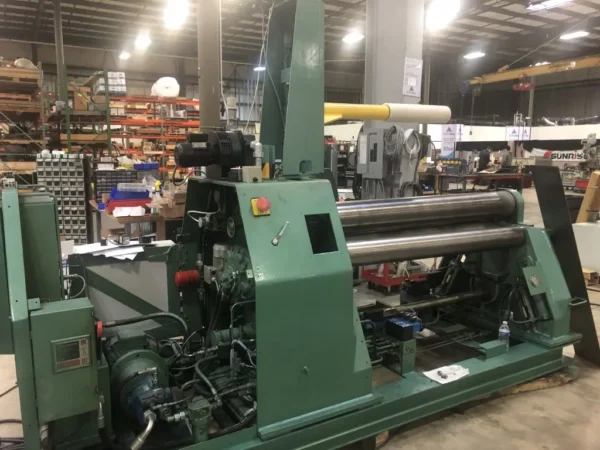

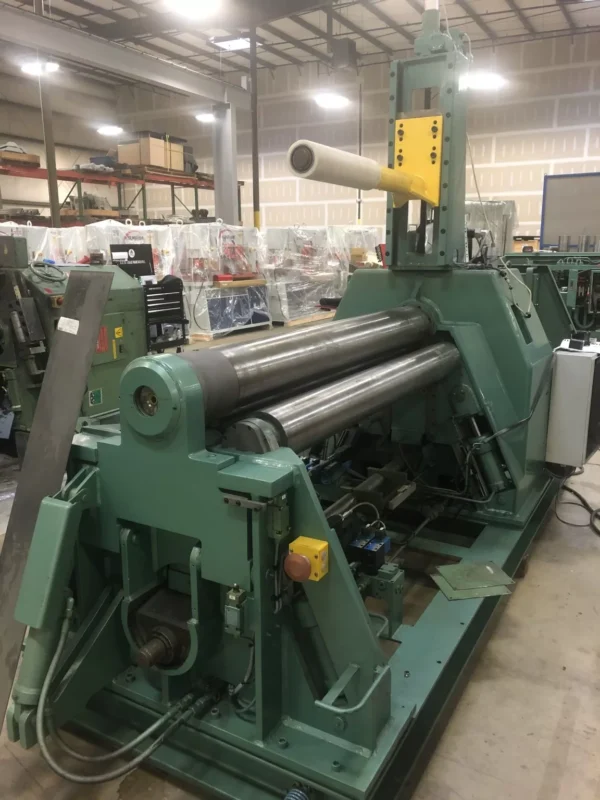

ROUNDO PASS 205/5 CNC Plate Bending Roll
Used Roundo PASS 205/5 CNC 4-roll double-pinch plate bending roll, 5′ x 7/16″ mild steel rolling capacity.
Brand:
Roundo
Model:
PASS 205/5 CNC
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Capacities:
Capacities in carbon steel Type A-36:
Circular bending capacity to a diameter above 24” – 5′ x 3/8″
Circular bending capacity to a diameter above 40″ – 5′ x 7/16″
Circular bending capacity to a diameter above 120″ – 5′ x 1/2″
Diameter of the top roll: 8.07” (205 mm)
Diameter of the lower roll: 8.07 (205 mm)
Diameter of the two side rolls: 6.30” (160 mm)
Total connected motor power @ 480 volts – 11 HP
Rolling speed: 0 – 23’ per minute, infinitely variable
Approximate net weight – 11,000 pounds
4-Roll Double Pinch Plate Roll
Hydraulic Drop End
Hardened Rolls
Hydraulic Lifting Roll
Cone Bending Attachment
Roundo PAS CNC
Hydraulic Drive with Variable Speed
5′ x 7/16″ Mild Steel Rolling Capacity
Model: PASS 205/5 CNC
Type: 4-Roll Double Pinch Plate Roll
Mild Steel Rolling Capacity: 5′ x 7/16″
Circular Bending (A-36): 5′ x 3/8″ (>24″ dia.); 5′ x 7/16″ (>40″ dia.); 5′ x 1/2″ (>120″ dia.)
Top/Lower Roll Diameter: 8.07″ (205mm)
Side Roll Diameter: 6.30″ (160mm)
Motor Power: 11 HP @ 480V
Rolling Speed: 0-23 ft/min, infinitely variable
Approx. Weight: 11,000 lbs

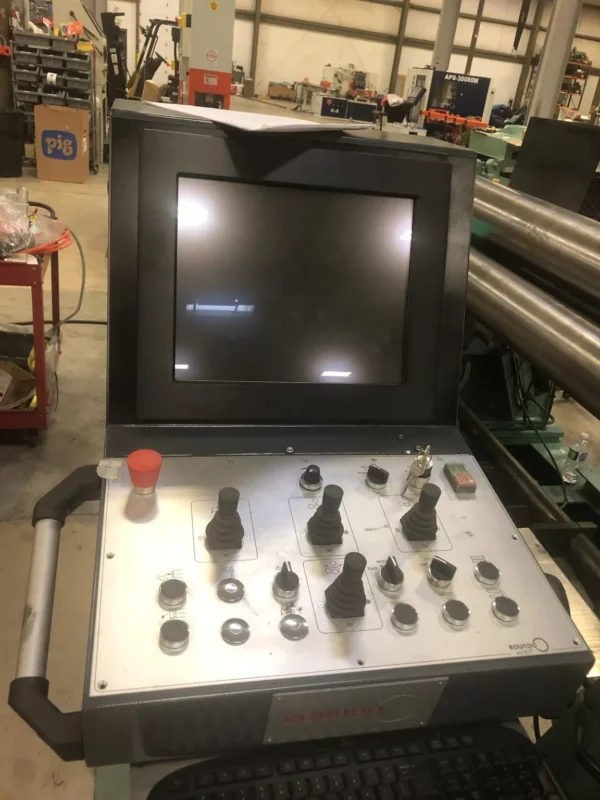

Features: Hydraulic drop end, hardened rolls, hydraulic lifting roll, cone bending attachment, CNC control
