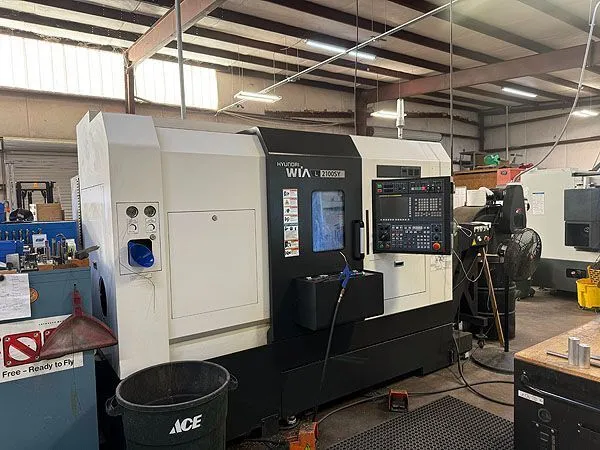

Hyundai WIA L2100SY CNC Turning Center
Used 2018 Hyundai WIA L2100SY CNC turning center with live tooling, sub-spindle, and only ~3,000 cutting hours.
Brand:
HYUNDAI WIA
Model:
L2100SY
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Manufacturer: HYUNDAI WIA
Model: L2100SY
Condition: Good
Year: 2018
Stock #: 3203
Description
Main spindle: 4,000 rpm built in spindle
20 HP
Main Torque 187.5
2.6” (Ø65mm) bar capacity
Max. turning diameter 13.2”
Max. turning length 17.9”
Sub spindle: 6,000 rpm built in spindle
10 HP on the sub spindle
1.4” bar capacity
Live Tool: 5,000 rpm
7.4HP (5 min) / 26 lbf.ft torque
X/Y-axis Travel 8.3” / 3.9”
Box guideways
Rapid Speed
X/Y Axis Travel 8.3” / 3.9”
X/Y Axis Rapids 18/12m/ min
Z/ZB Axis Travel 22.8/ 19.7”
Z/ZB Axis Rapids 945 (24m/min)

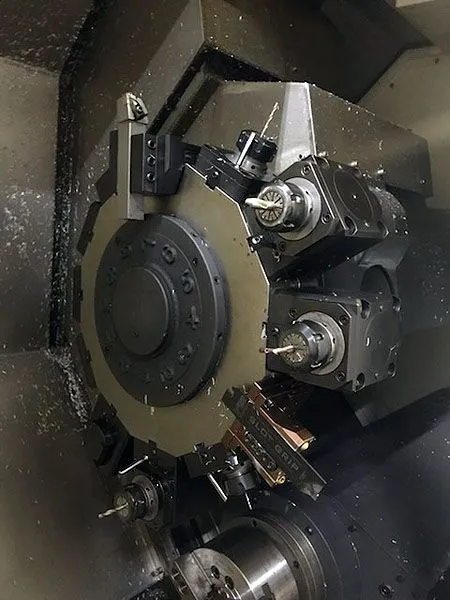

BMT 65 12 station turret
Auto Tool setter
Tool size: □ 1.”/Ø 2” (□25mm/Ø50mm)
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws

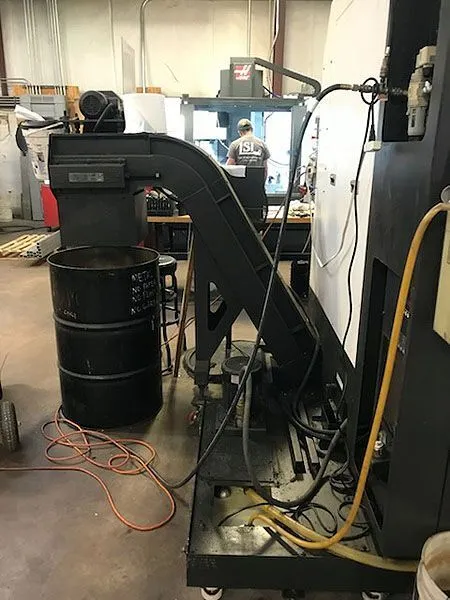

Chip Conveyor (47” discharge height)
1 color tower signal light
X/Y Ball Screws 1.1”
Z/ZB Ball Screws 1.57”
Machine approx. dimensions 10’ x 6’ without chip conveyor
Machine Chip conveyor approx. 4’ 5” long
Equipped with
Chip Conveyor

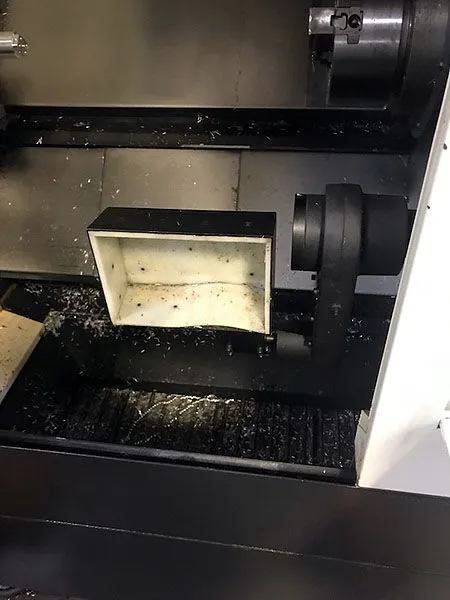

parts catcher
8” 3 Jaw chuck,

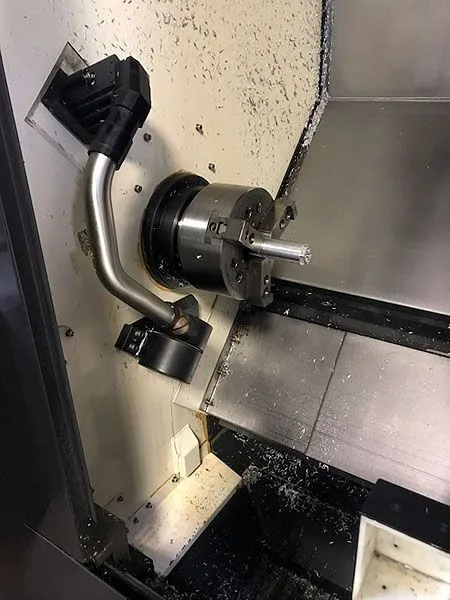

6” 3 Jaw chuck-sub spindle
Tool setter,

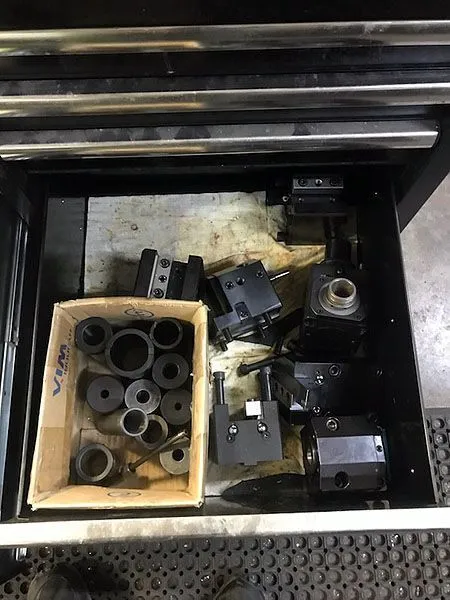

Approx. 6 Live Toolholders
Assorted Toolholders in the turret ( Drills & Inserts not included)

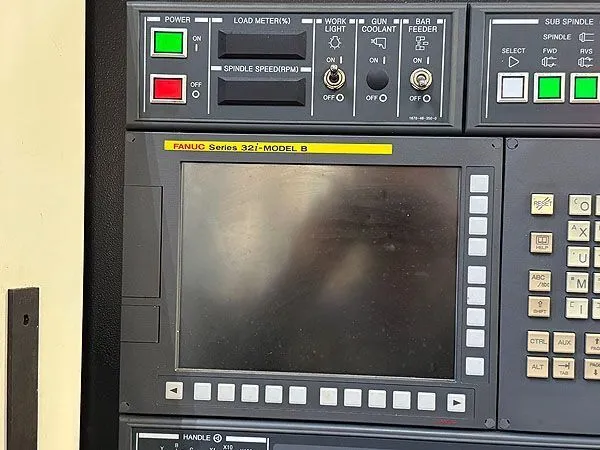

Fanuc 32-I Model B Control
Approx. 3000 Cutting hours ( Only 1 year & Half use in 7 Years)
Model: L2100SY
Year: 2018
Control: Fanuc 32i Model B
Main Spindle: 4,000 RPM, 20 HP, 187.5 ft-lb torque, 2.6″ (65mm) bar capacity
Sub-Spindle: 6,000 RPM, 10 HP, 1.4″ bar capacity
Live Tooling: 5,000 RPM, 7.4 HP (5 min), 26 lbf-ft torque
Max Turning Diameter: 13.2″
Max Turning Length: 17.9″
X/Y Axis Travel: 8.3″ / 3.9″
Z/ZB Axis Travel: 22.8″ / 19.7″
Turret: BMT 65, 12-station, auto tool setter
Coolant System: 87 PSI (290 PSI optional)
Approx. Dimensions: 10′ x 6′ (without chip conveyor)
Cutting Hours: ~3,000 (approx. 1.5 years of use over 7 years)
Equipped With: Chip conveyor, parts catcher, 8″ & 6″ 3-jaw chucks, tool setter, ~6 live tool holders
