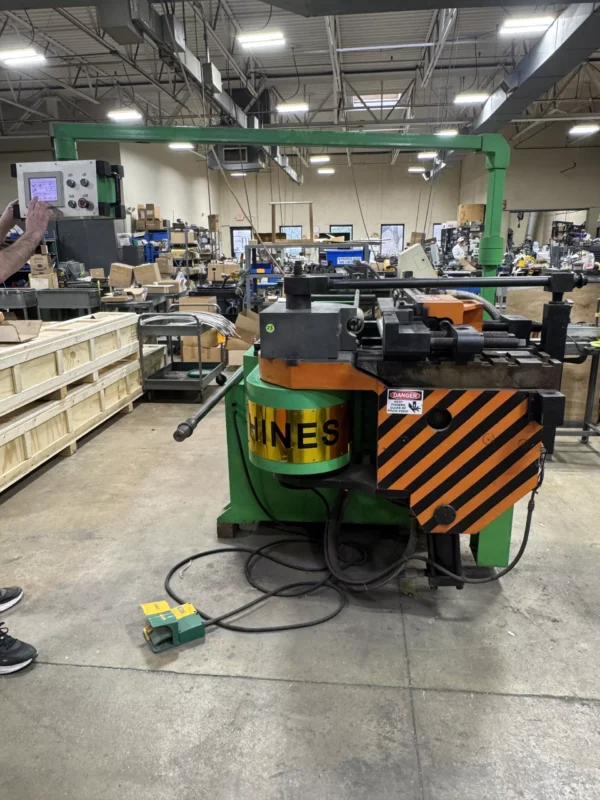

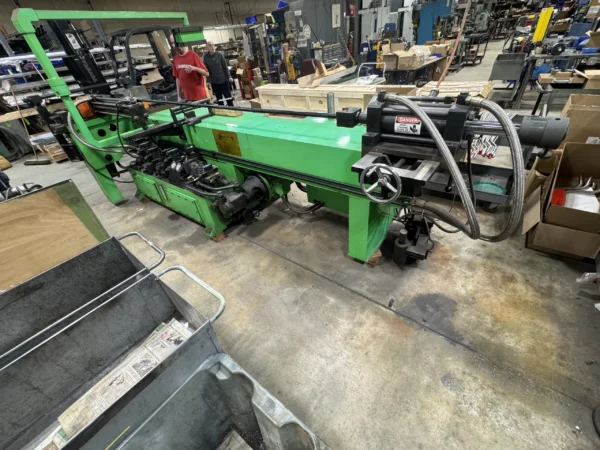

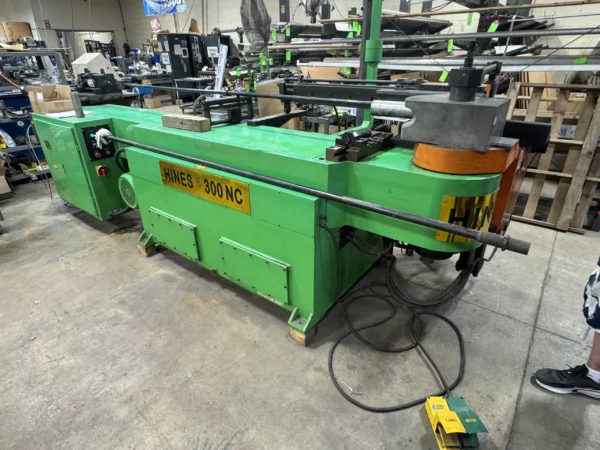

Hines 300 NC Hydraulic Tube Bender

blank

Lightly used Hines 300 NC hydraulic tube bender — only 45 bends run — with 4″ OD x .226″ wall capacity and a Mitsubishi PLC touch-screen control.

Brand:

Hines

Model:

300

Condition:

Get A Quote
Not sure what Machine, Parts, or Tooling you need?  We can help!
810.844.0233

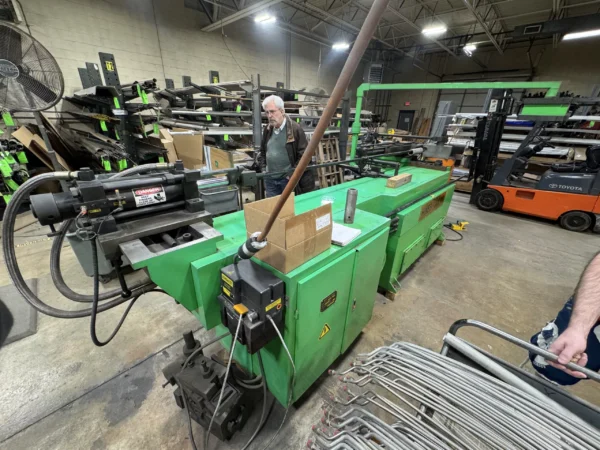

This bender was used for only 45 bends on a project that never took off for the aerospace. My customer mainly does small OD tubes so this is way too big for them. Excellent condition & can be seen under power.

FEATURES OF THE 300 NC TUBE BENDER

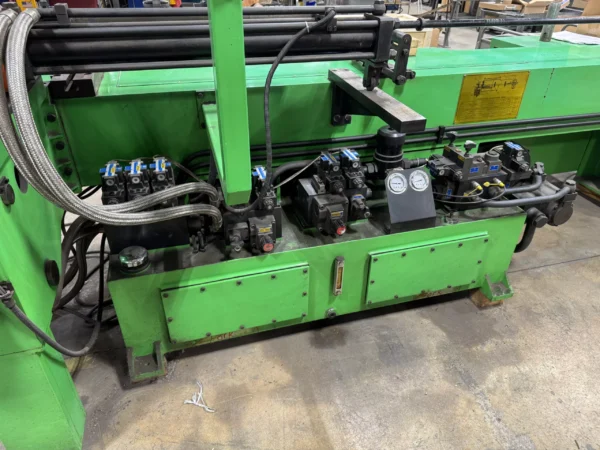

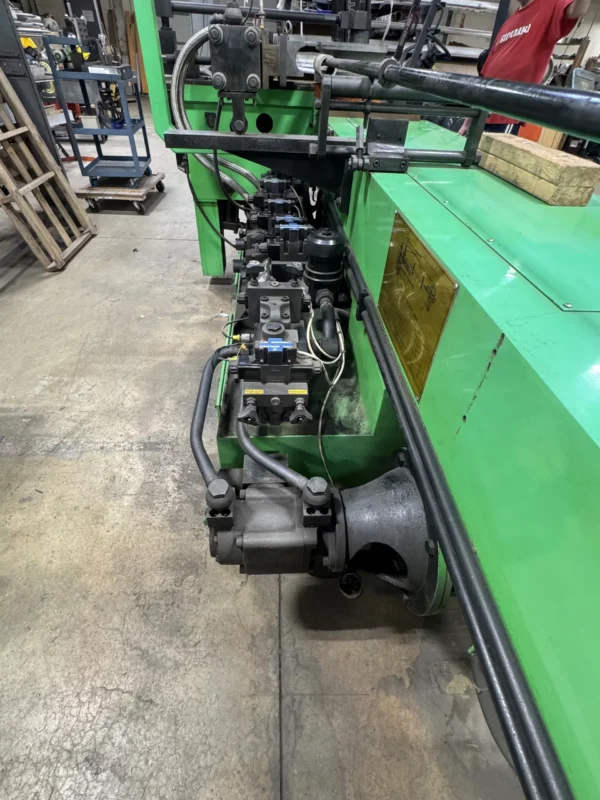

  • Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.)

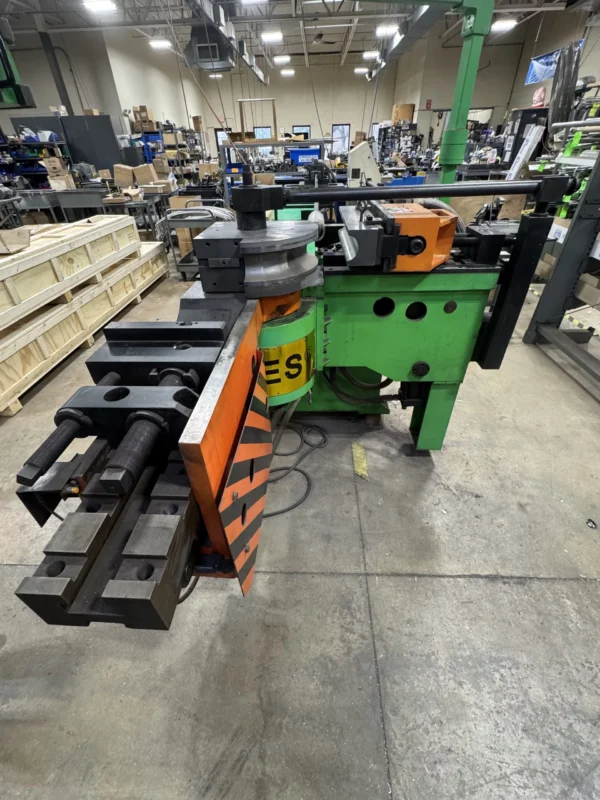

  • Solid Machined Steel Bend Arms
  • Easy Touch Screen Operation
  • Includes All Die Holders

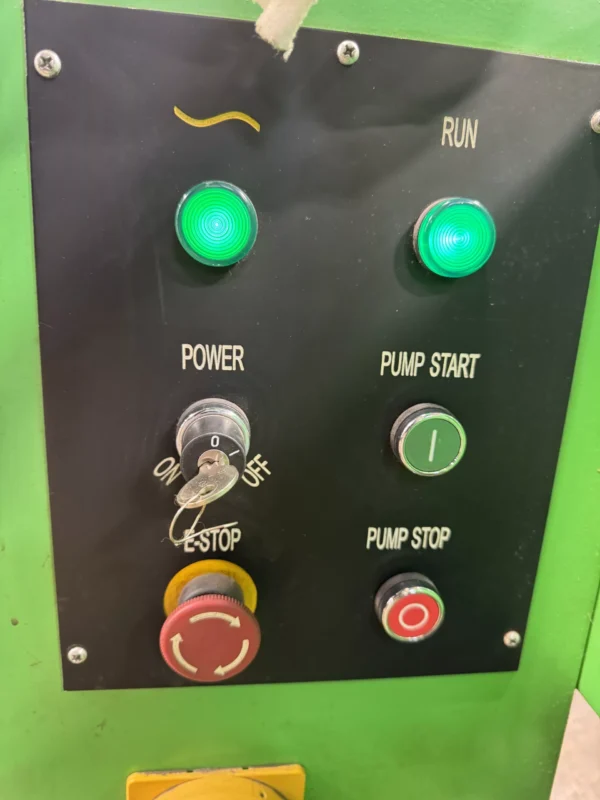

  • Operator Safety Features
  • Manifold Style Hydraulic and High Pressure Filter

STANDARD

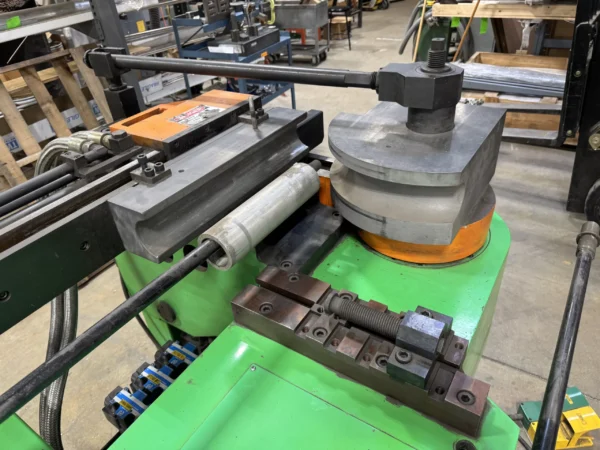

  • Pressure Die Holder
  • Wiper Die Holder
  • Overhead Tie Bar (Eliminates Die Deflection)
  • Pressure Die Assist
  • Pressure Die Assist Rear Support Roller
  • Mandrel Rod SAE Thread Supplied (1)

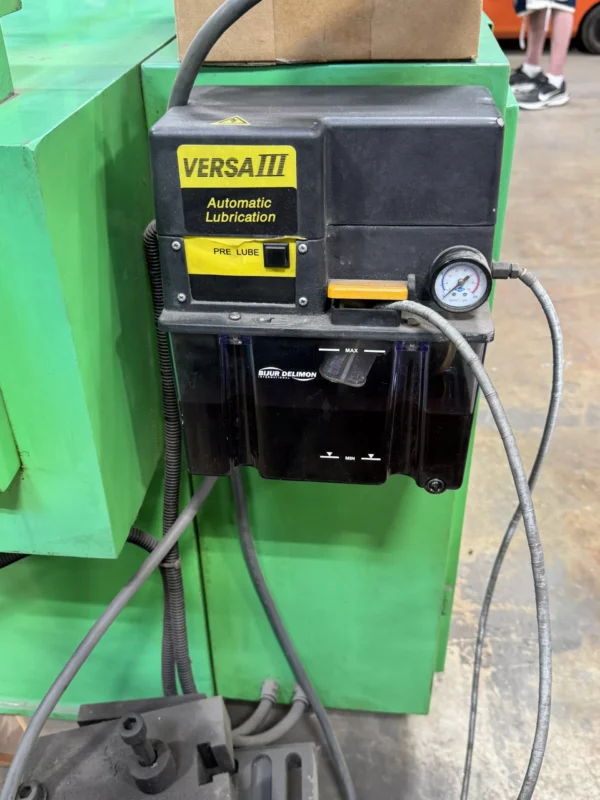

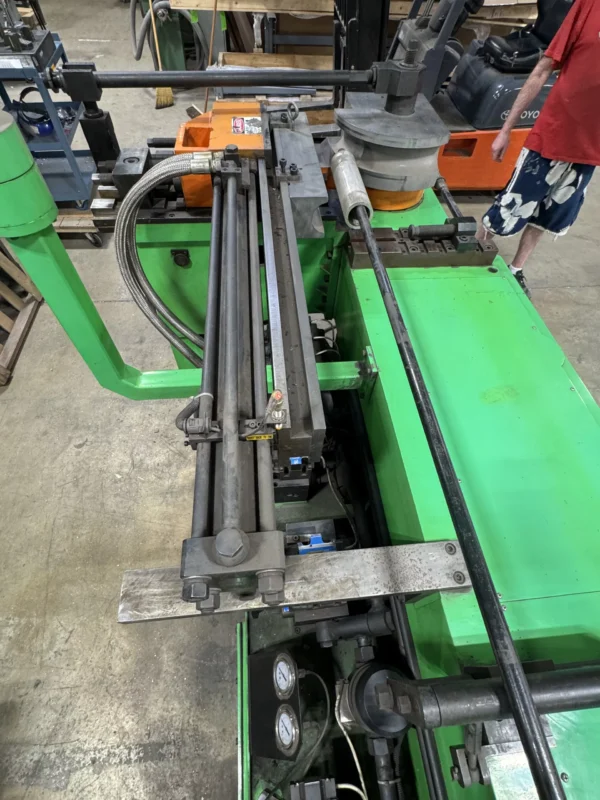

  • Mandrel Lubricator

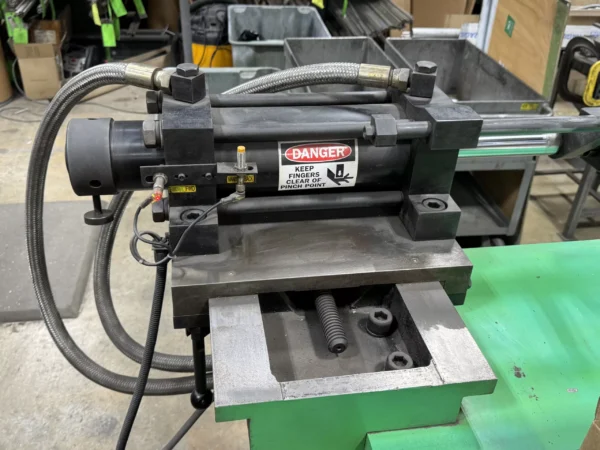

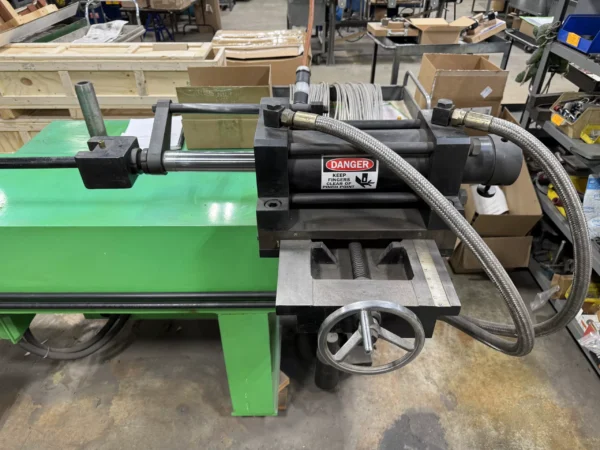

  • Mandrel Extractor
  • Mandrel Early Out Programmable
  • PLC Controller – Mitsubishi FX3U
  • Memory Capacity: 100 job storage, 6 bends per part
  • Touch Screen (Proface America)
  • Tube Piece Counter
  • Clockwise Rotation
  • Dual Stage Pump Hydraulic System

ADDITIONAL SPECIFICATIONS FOR THE 300 NC

  • Capacity: 4″ OD x .226 Wall
  • Standard Maximum Radius: 18 inch
  • Maximum Bend Angle: 190 degrees
  • Bend Angle Accuracy (+ / -): 0.1 degree
  • Bend Arm Speed: 3.5 RPM
  • Maximum Tube Length Over Mandrel: 10 feet
  • Motor: 20 HP
  • Operating Pressure: 2000 psi
  • Reservoir Capacity: 150 U.S. Gallons
  • Approximate Weight: 13800 lbs
  • Approximate Dimensions: 15′ L x 6′ W x 5.5′ H

Model: 300 NC
Condition: Used for only 45 bends; excellent condition, viewable under power
Control: Mitsubishi FX3U PLC, Proface America touch screen; 100-job storage, 6 bends/part
Rotation: Clockwise
Capacity: 4″ OD x .226″ wall
Standard Max Radius: 18″
Max Bend Angle: 190°
Bend Angle Accuracy: +/-0.1°
Bend Arm Speed: 3.5 RPM
Max Tube Length Over Mandrel: 10 ft
Motor: 20 HP
Operating Pressure: 2,000 psi
Reservoir Capacity: 150 US gallons
Approx. Weight: 13,800 lbs
Approx. Dimensions: 15’L x 6’W x 5.5’H
Features: Interchangeable hydraulic manifolds, overhead tie bar, pressure die assist w/ rear support roller, mandrel lubricator, programmable mandrel early-out, tube piece counter
