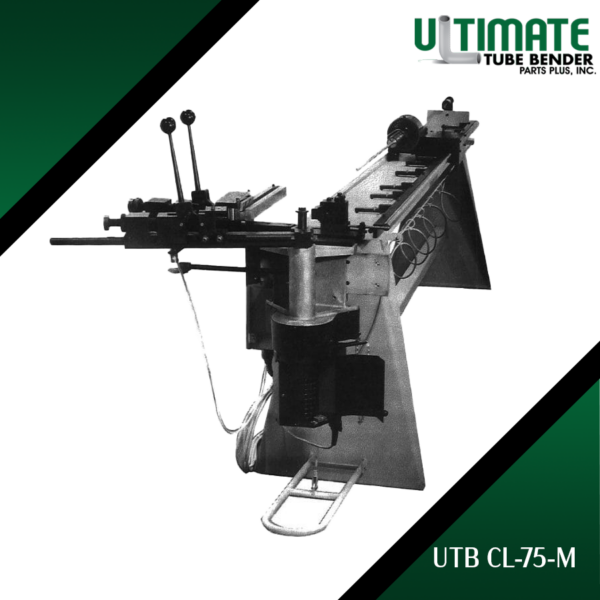

Clarke & Lewis CL-75 M – Manual Tube Bender
Bending up to 180° (15° overbend) on 1/4″ to 1-1/4″ O.D., the CL-75 M is a manual tube bender for precision tube bending.
Brand:
Model:
CL-75 M
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
This manual tube bender is sized for 1/4″ to 1-1/4″ O.D.
The CL-75 M operates by hand, pulling the bend arm around a fixed die to route tubing to the set angle and centerline radius.
It provides a maximum bend angle of 180° (15° overbend), a maximum centerline radius of 6″ max centerline, manual toggle; collet chuck (lever closer, draw type) operation.
Standard features: Preset stops reproduce tubes with up to 10 bends
Manual benders remain a common shop choice for lower-volume runs where a hydraulic or CNC unit isn’t justified.
CL-75 M Specifications
- Ferrous Tube Capacity: 1/4″ to 1″ O.D.
- Non-Ferrous Tube Capacity: 1/4″ to 1-1/4″ O.D.
- Max Bend Angle: 180° (15° overbend)
- Max Centerline Radius: 6″ max centerline
- Tube Length Over Mandrel: 8 feet over mandrel
- Dimensions (W x D x H): 12′ x 3’6″ x 40″ high
- Clamping / Operation Method: Manual toggle; collet chuck (lever closer, draw type)
- Mandrel Extractor: Foot pedal, 1″ stroke
- Standard Features: Preset stops reproduce tubes with up to 10 bends
Ferrous Tube Capacity: 1/4″ to 1″ O.D.
Non-Ferrous Tube Capacity: 1/4″ to 1-1/4″ O.D.
Max Bend Angle: 180° (15° overbend)
Max Centerline Radius: 6″ max centerline
Tube Length Over Mandrel: 8 feet over mandrel
Dimensions (W x D x H): 12′ x 3’6″ x 40″ high
Clamping / Operation Method: Manual toggle; collet chuck (lever closer, draw type)
Mandrel Extractor: Foot pedal, 1″ stroke
Standard Features: Preset stops reproduce tubes with up to 10 bends
