1-1072500 Pines #¾ & #1 LH Slide, Ampco Bronze (110-10-725-00)
LH Slide (Ampco Bronze) for Pines #¾ and #1 tube benders (Series 110), replaces Pines part no. 110-10-725-00. Great for arm rebuilds where the slide is worn or scored.
Brand:
Model:
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Overview

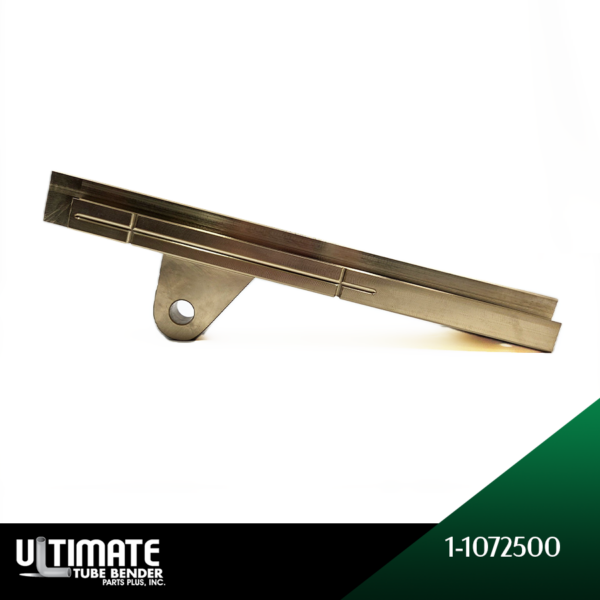

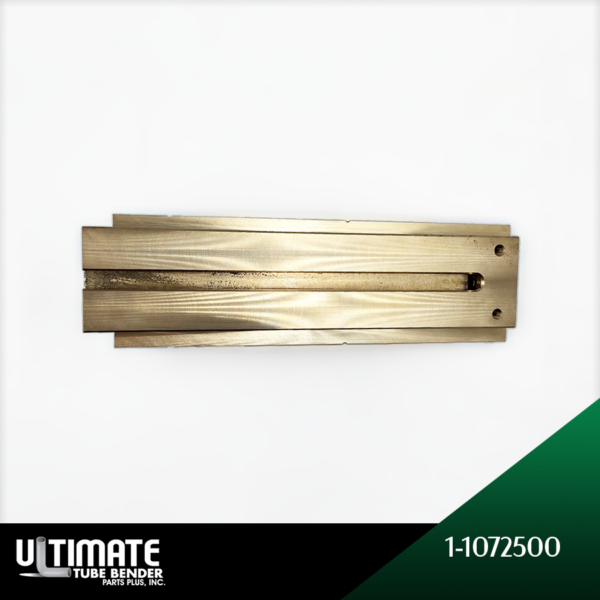

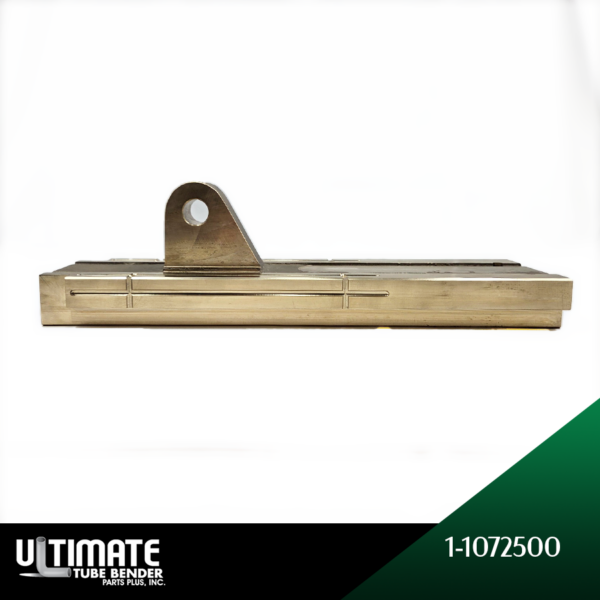

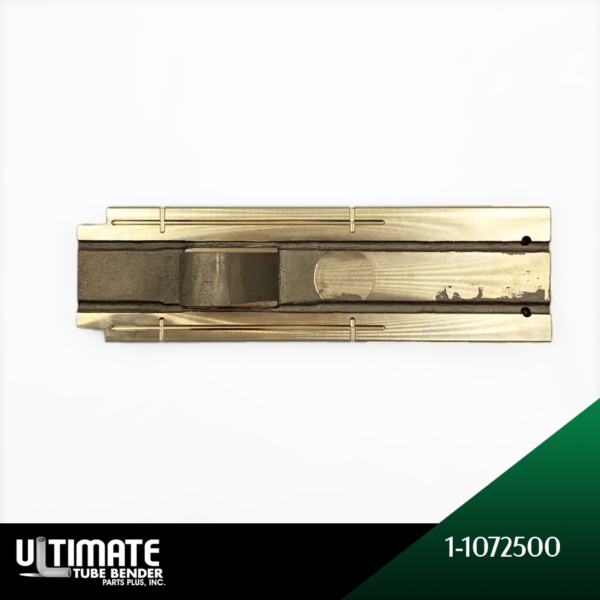

The Ampco bronze slide for the 8" CLR arms. On the stationary arm it's used on both LH and RH machines; on the swing arm it's for LH machines only (the RH swing arm slide is 1-2572500). The 16" CLR arms use a longer slide, 1-1172500. Includes the back-up bolt and jam nut.
Fitment
| UTB part no. | 1-1072500 |
|---|---|
| Replaces Pines part no. | 110-10-725-00 |
| Fits | Pines #¾ and #1 tube benders (Series 110) |
Where it’s used
- Pines #¾ & #1 8" CLR Stationary Arm Assembly (P/D Arm): key 9, qty 1 per assembly
- Pines #¾ & #1 8" CLR Swing Arm Assembly (C/D Arm): key 9 (LH), qty 1 per assembly
See the exploded view and full parts list for each assembly in the Pines #¾ & #1 parts guide.
Great for
Arm rebuilds where the slide is worn or scored.
Ordering
To confirm fit, send your machine’s serial number, whether it’s a left-hand or right-hand bender, the part number, and a photo of the old part if you have one. Call (810) 844-0233 or email info@benderparts.com for a quote. We ship internationally.
